Big material storage barrel sustains stability during material input.
- User-friendly machine enables to reach high productivity standards.
- Product below 7% moisture is suitable for extruding.
- Applicable to lightweight materials..
- Crusher is optional.
- Low labor cost.
Model |
GD-85SE-DF |
GD-100SE-DF |
GD-120SE-DF |
GD-150SE-DF |
GD-175SE-DF |
|
Main Extruder |
||||||
Screw Diameter L/D Ratio |
32 |
36 |
36 |
36 |
36 |
|
Main Power |
40~60HP |
50~100HP |
100~150HP |
150~200HP |
200~300HP |
|
Temp. Control |
5 zones |
7 zones |
8 zones |
9 zones |
10 zones |
|
Heating Capacity |
35KW |
50KW |
70KW |
85KW |
150KW |
|
Side Entrance Power |
5HP |
10HP |
10HP |
15HP |
15HP |
|
Storage Barrel Capacity |
1500L |
2500L |
2500L |
2500L |
2500L |
|
Storage Barrel Power |
5HP |
5HP |
5HP |
7.5HP |
7.5HP |
|
Hydraulic Power |
3HP |
5HP |
5HP |
7.5HP |
7.5HP |
|
Max. Outpou/Hr |
120~180kg |
250~400kg |
300~450kg |
450~600kg |
700~1000kg |
|
Die Face Cutter |
||||||
Power |
2HP |
3HP |
3HP |
5HP |
7.5HP |
|
Separator |
||||||
Power |
10HP |
10HP |
10HP |
15HP |
20HP |
|
Vibration Motor |
||||||
Motor |
1/4HP*2 |
1/4HP*2 |
1/4HP*2 |
1/4HP*2 |
3/4HP*2 |
|
Blower |
||||||
Power |
3HP |
5HP |
5HP |
7.5HP |
10HP |
|
Storage Barrel |
||||||
Capacity |
1000L |
1000L |
1000L |
1000L |
1000L |
*Equipment specifications are also constanly updated. You are welcomed to contact us for details.

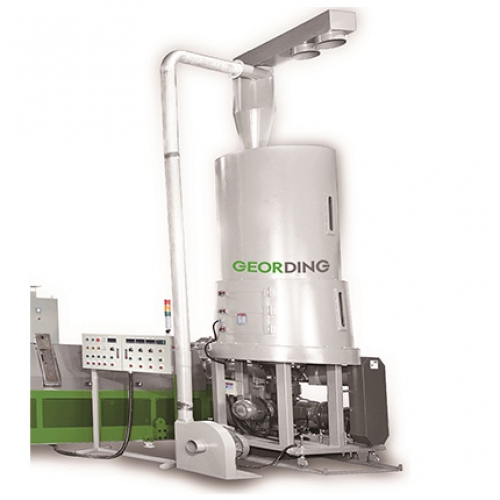

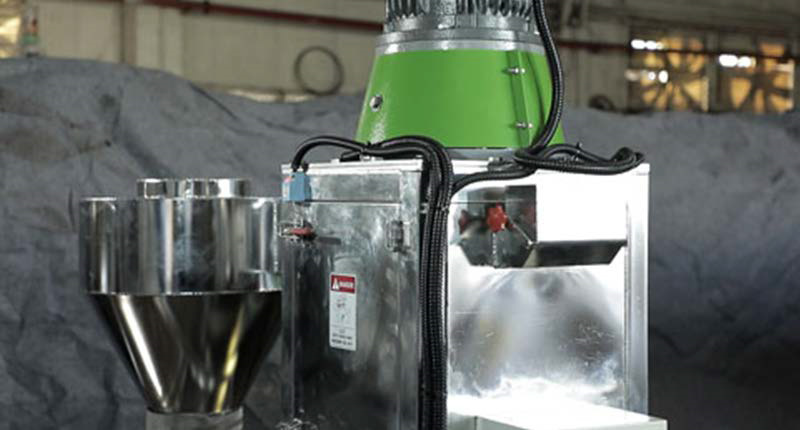

Side feeding barrel is better for storage and steady material input at same time.

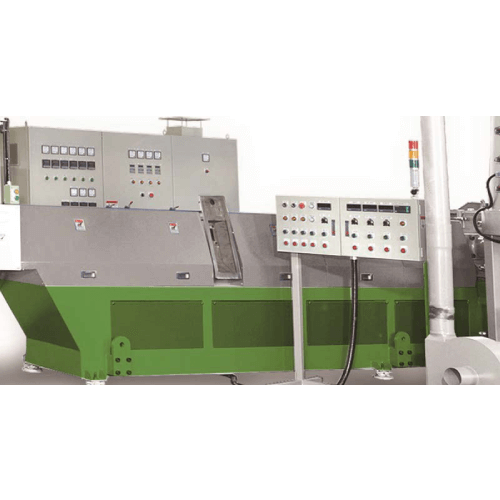

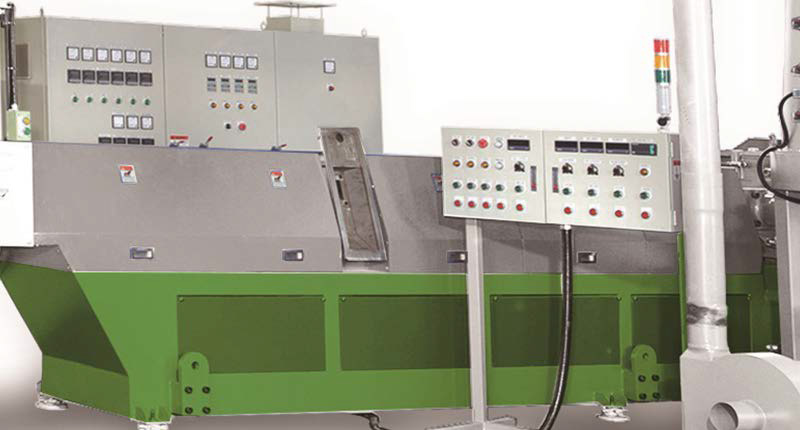

Main Extruder can extrude the material whose moisture below 7%.

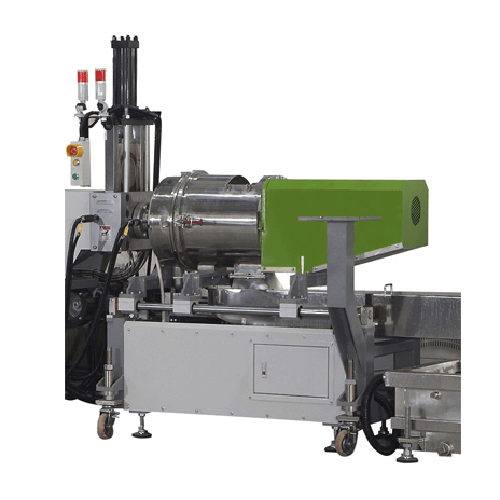

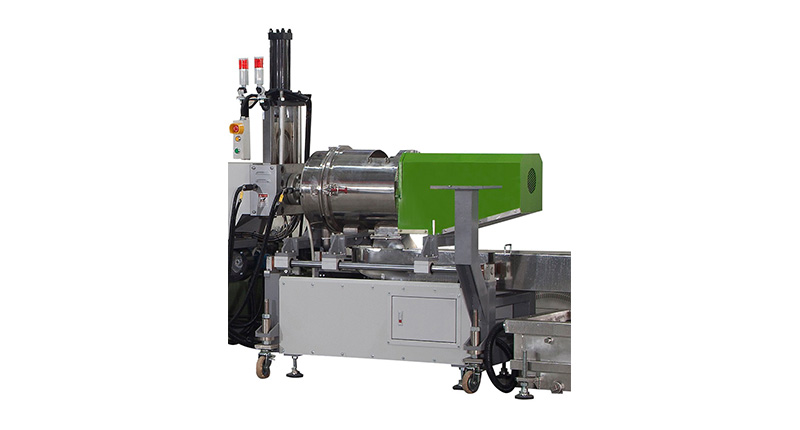

Die face cutting frame made in SUS304 to prevent the rust and corrosion. Knives adjustments automaticlly patent design.The knife and die plate always set at 90 degree. No need to adjust frequently.

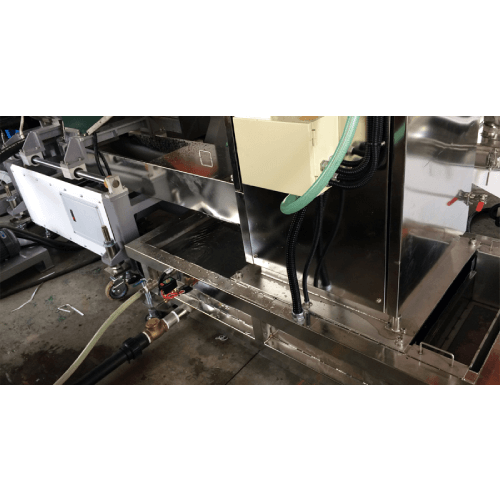

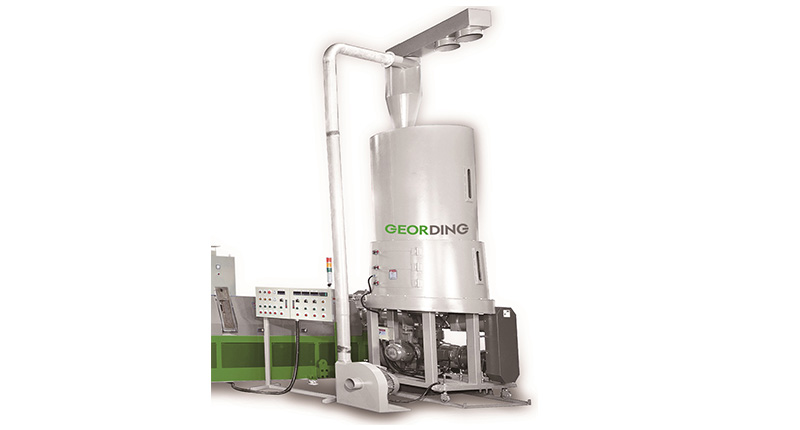

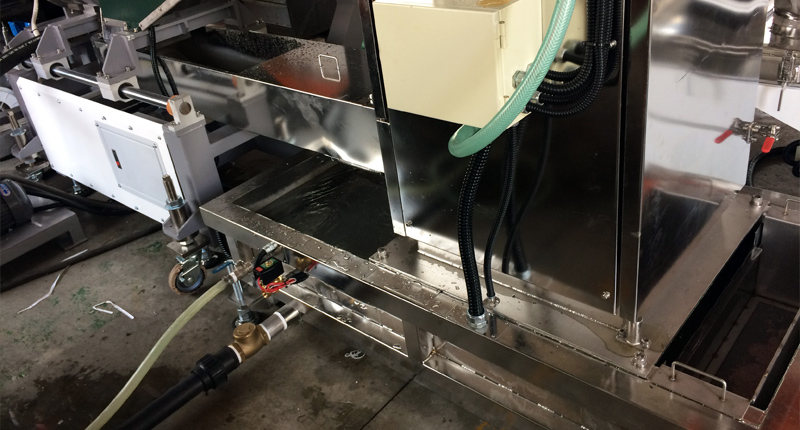

High speed dryer is soundproof with double layer sealing design. The underneath water tank can gather the waste water and filter the impurity.

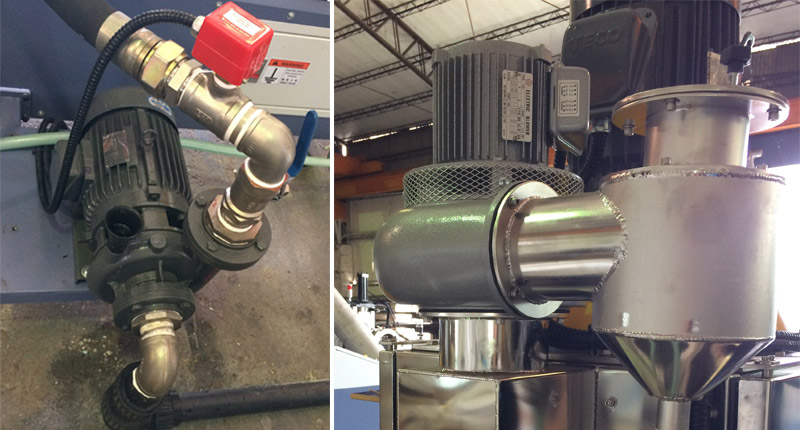

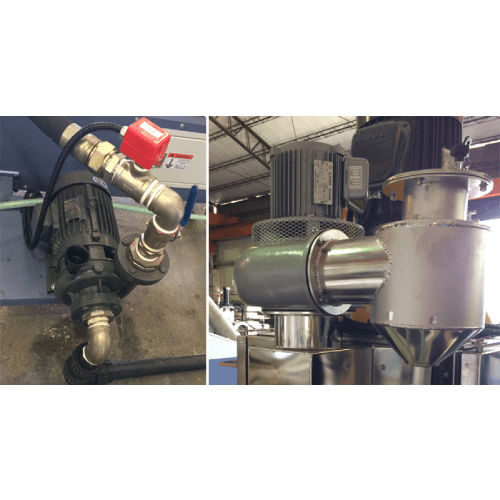

Water circulation pump collects the waste water and the water vapour from pelletization and high speed dryer.
The cyclone gathers the pellets and reduces the impact after high speed dryer prior to next vibrating screener.

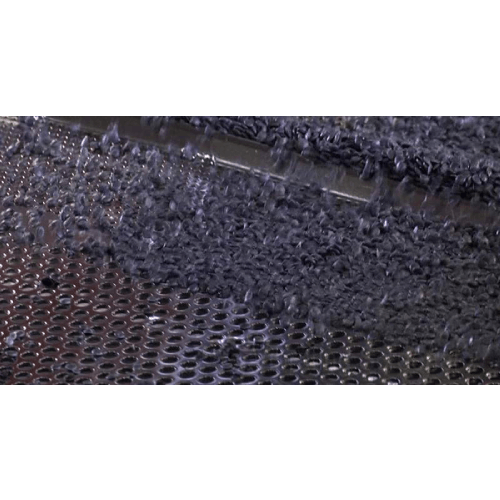

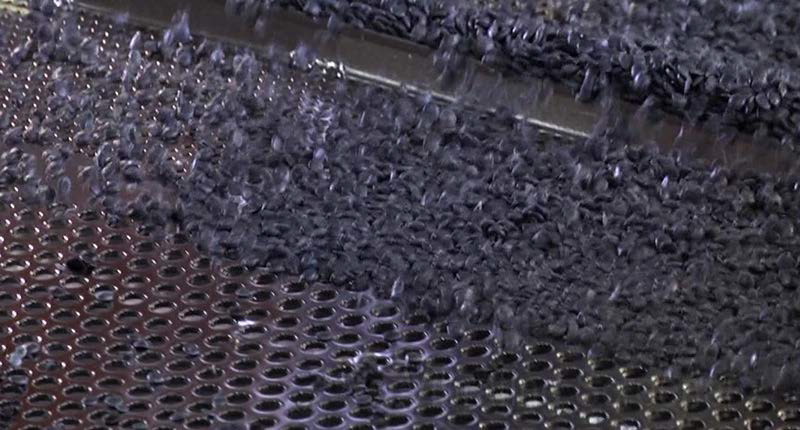

The triple layers vibrating screener is easy to clean, disassemble and assemble. Can customize the diameter of the hole.

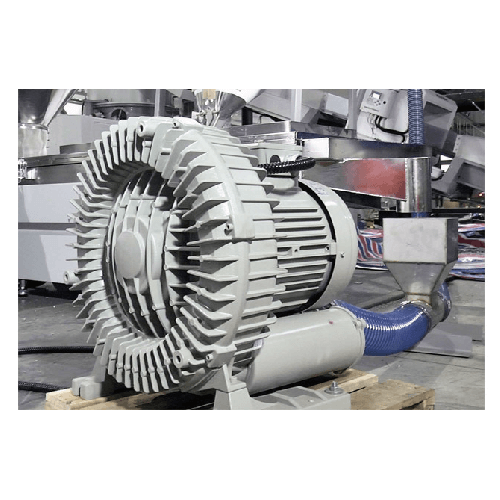

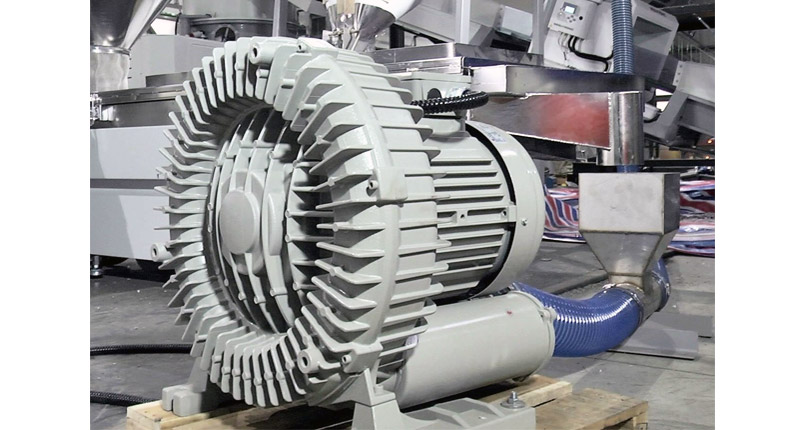

Blower with noiseless design.
