Classification : Shrink Sleeve Converting Machinery
Country: Taiwan
Phone: 886-4-23587272
Fax: 886-4-23580882
Contact Person: Vicky Chen
PURPOSE OF MACHINE
- Our K2 model is our most popular with over 400 units fabricated. This machine operates at 300 meter per minute and forms the sleeves via an adjustable forming section. The machine is available in 300mm and 400mm lay-flat models.
FEATURES
- Unwind edge guide system
- Adjustable forming plate
- Semi-automatic tension control
- Rewind oscillation
- Touchscreen control
- EFD direct injection system
- Proportional solvent speed control

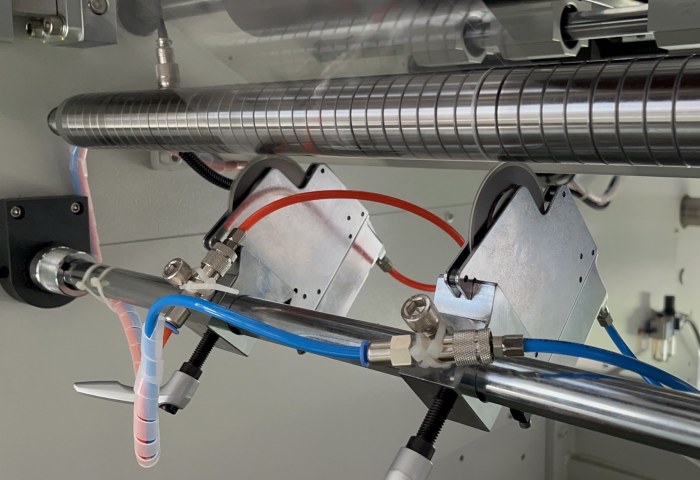

Glue Application

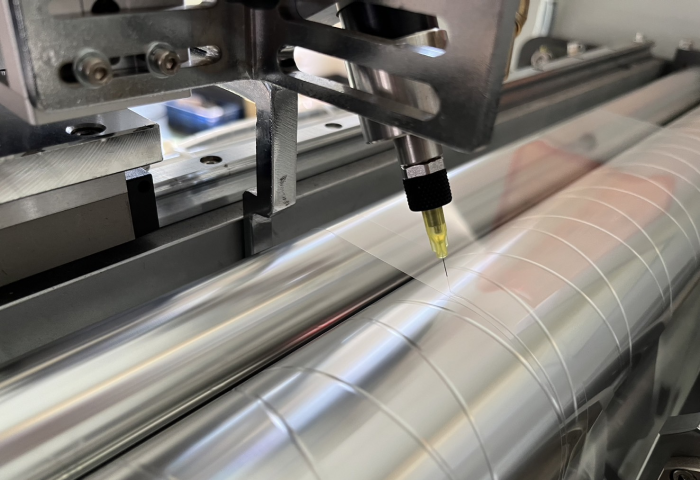

- Direct Injection
- Air pressure control precisely for minute quantity of glue

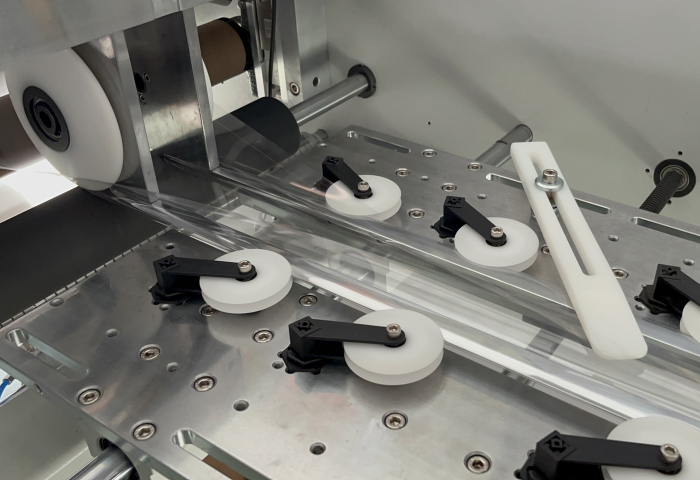

Adjustable Forming Plate
- The min. forming width is 56mm
|
Model |
SEAM-300 |
SEAM-400 |
|
Machine Speed |
300 M/min |
300 M/min |
|
Unwind Width |
620 mm |
820 mm |
|
Unwind Diameter |
600 mm |
600 mm |
|
Rewind Width |
56-300 mm |
56- 400 mm |
|
Rewind Diameter |
600 mm |
600 mm |
|
Core Diameter |
3” (76mm), 6” (152mm, Option) |
3” (76mm), 6” (152mm, Option) |
