Big material storage barrel sustains stability during material input.
- User-friendly machine enables to reach high productivity standards.
- Product below 7% moisture is suitable for extruding.
- Applicable to lightweight materials.
- Low labor cost.
- Two stages filter makes material more clean
Model |
GD-85SE-2DF |
GD-100SE-2DF |
GD-120SE-2DF |
GD-150SE-2DF |
GD-175SE-2DF |
Main Extruder |
|||||
Screw Diameter L/D Ratio |
32 |
36 |
36 |
36 |
36 |
Main Power |
40~60HP |
50~100HP |
100~150HP |
150~200HP |
250~300HP |
Temp. Control |
5 zones |
7 zones |
8 zones |
9 zones |
10 zones |
Heating Capacity |
35KW |
50KW |
75KW |
80KW |
150KW |
Side Entrance Power |
5HP |
10HP |
10HP |
15HP |
15HP |
Storage Barrel Capacity |
1500L |
2500L |
2500L |
2500L |
2500L |
Storage Barrel Power |
5HP |
5HP |
5HP |
7.5HP |
7.5HP |
Hydraulic Power |
3HP |
5HP |
5HP |
7.5HP |
7.5HP |
Max. Outpou/Hr |
120~180kg |
250~400kg |
300~450kg |
450~600kg |
700~1000kg |
Sub-extruder |
|||||
Screw Diameter L/D Ratio |
8 |
8 |
8 |
8 |
8 |
Power |
15HP |
30HP |
40HP |
50HP |
60HP |
Temp. Control |
3 zones |
4 zones |
5 zones |
6 zones |
6 zones |
Heating Capacity |
22KW |
25KW |
38KW |
40KW |
58KW |
Die Face Cutter |
|||||
Power |
2HP |
3HP |
3HP |
5HP |
7.5HP |
Separator |
|||||
Power |
10HP |
10HP |
10HP |
15HP |
20HP |
Vibration Motor |
|||||
Motor |
1/4HP*2 |
1/4HP*2 |
1/4HP*2 |
1/4HP*2 |
1/4HP*2 |
Blower |
|||||
Power |
3HP |
5HP |
5HP |
7.5HP |
10HP |
Storage Barrel |
|||||
Capacity |
1000L |
1000L |
1000L |
1000L |
1000L |
*The product line can be made to spec meeting customer needs.
*Equipment specifications are also constanly updated. You are welcomed to contact us for details.
Side feeding barrel is better for storage and steady material input at same time.

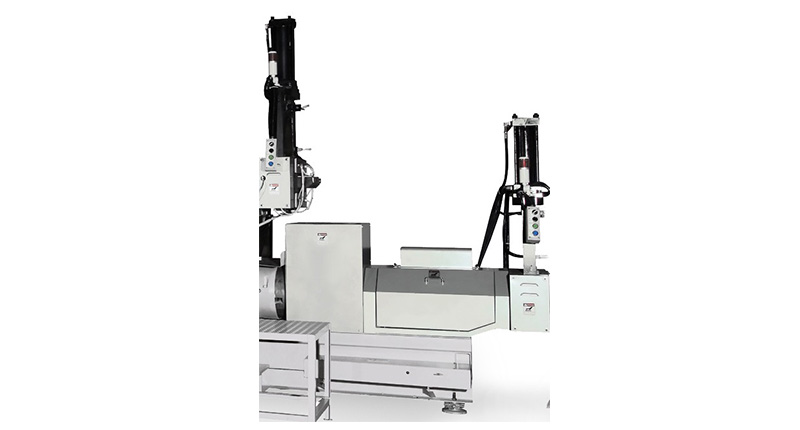

Main Extruder can extrude the material whose moisture below 7%.
Sub extruder conducts second time filtering and ventilating for dirtier materials.
Die face cutting frame made in SUS304 to prevent the rust and corrosion. Knives adjustments automaticlly patent design.The knife and die plate always set at 90 degree. No need to adjust frequently.
High speed dryer is soundproof with double layer sealing design. The underneath water tank can gather the waste water and filter the impurity.
Water circulation pump collects the waste water and the water vapour from pelletization and high speed dryer.
The triple layers vibrating screener is easy to clean, disassemble and assemble. Can customize the diameter of the hole.
Blower with noiseless design.
