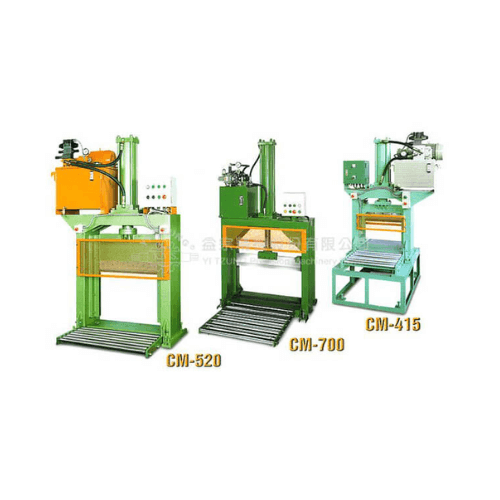

Rubber Bale Cutting Machine

Classification : High Performance Raw Rubber Cutter

YI TZUNG PRECISION MACHINERY CORPORATION

Country: Taiwan

Phone: 886-4-25324185

Fax: 886-2-27217956

Contact Person: Mr.Wu

Inquiry Now

The Raw Rubber Bale Cutter Applies to Cut Natural Rubber and Synthetic Rubber.

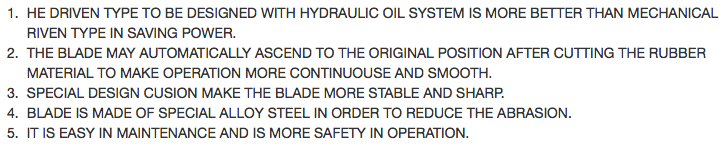

He driven type to be designed with hydraulic oil system is more better than mechanical riven type in saving power.
The blade may automatically ascend to the original position after cutting the rubber material to make operation more continuouse and smooth.
Special design cusion make the blade more stable and sharp.
Blade is made of special alloy steel in order to reduce the abrasion.
It is easy in maintenance and is more safety in operation.

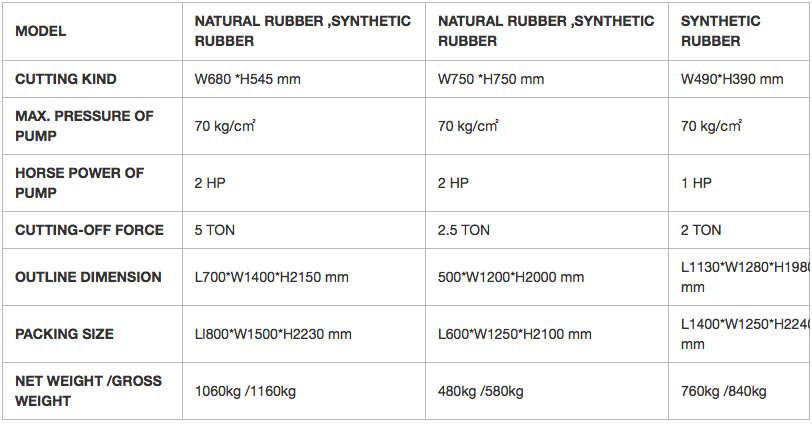

Model	Natural Rubber,Synthetic Rubber	Natural Rubber,Synthetic Rubber	Synthetic Rubber
Cutting Kind	W680*H545 mm	W750*H750 mm	W490*H390 mm
Max. Pressure of Pump	70 Kg/cm²	70 Kg/cm²	70 Kg/cm²
Horse Power of Pump	2 HP	2 HP	1 HP
Cutting-off Force	5 Ton	2.5 Ton	2 Ton
Outline Dimension	L700W1400H2150 mm	L500W1200H2000 mm	L1130W1280H1980 mm
Packing Size	L1800W1500H2230 mm	L600W1250H2100 mm	L1400W1250H2240 mm
Net Weight /Gross Weight	1060kg /1160kg	480kg /580kg	760kg /840kg
