High Flow with Volume Booster(0-10bar)

Classification : Proportional Pressure Regulator

KAO LU ENTERPRISES CO.,LTD.

Country: Taiwan

Phone: +886-4-24874219

Fax: +886-4-24864269

Contact Person: Jerry Wu

Video Inquiry Now

1. QKL-B1T Electronic Pressure Regulator
Provides an air pilot signal to the dome of the air volume booster. By controlling pressure to the top of the diaphragm, we control pressure out of the volume booster. QKL-B1T has the feature of high resolution and fast response time, which is well suited to act as the pilot pressure.

2. Air Volume Booster
Ａlso known as the dome-loaded or pilot-operated pressure regulator. This can be a pressure reducing valve or a back pressure valve. We have many volume boosters available that can handle different
pressures, medias and flow rates.

Type	Proportional Pressure Regulator QKL B1T
Input Signal	4-20mA / 0-10V /RS485
Monitor Output	1-5V / 0-10V / 4-20mA
Power Supply	DC24V(≦4W)
Response	0.8S

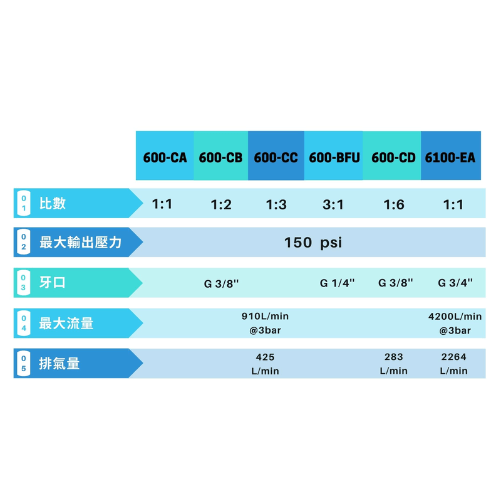

Type	Air Volume Booster Type 600 .Type 6100
Output Ratio	1:1	1:2	1:3	1:6	3:1	1:1
Model	600-CA	600-CB	600-CC	600-CD	600-BFU	6100-EA
Port	3/8"				1/4"	3/4"
Max. Supply Pressure	250
Max. Signal Pressure	150	75	50	25	150	150
Accuracy	1.0	1.12	1.25	2.0	1.0	1.0
Max. Flow	910L					4200L
Exhaust capacity	425			283	425	2264
