PE Tube Heading Machine SIH-30-HC

Classification : Heading Machine

BONMART ENTERPRISE CORP.

Country: Taiwan

Phone: 886-2-22994281

Fax: 886-2-22994284

Contact Person: Mr. Angus Wu

Inquiry Now

With 250 sets memory storage in the computer and the monitor which can show the operating status.

Insert tubes manually and remove tubes with air blowing unit.

Double heading mould for fast running.

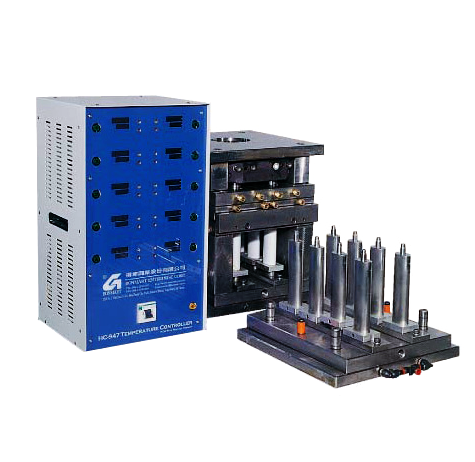

Model: SIH-30-HC is with hot runner and there won't be any waste left after production, which can save cost.

Model: SIH-25-NC is without hot runner and take out the waste by air blowing automatically and safely.

Screw dia: 35 mm

Shot weight: 159g

Nozzle retraction stroke: 165 mm

Number of temperature control: 3 section

Hopper volume: 20 L

Clamping force: 45 ton

Tie bar distance: 580 x 430 mm

Slide stroke: 420 mm

Hydraulic pressure: 140 kg/cm³

Oil reservoir capoacity: 130 L

Water consumption: 800 L/hr

Power consumption: 15 kw (W/hot runner), 10 kw (W/out hot runner)

Air consumption: 30 L/min

Heading range: Ø16~60D ia mm

Heading speed:
25~30 pcs/min (W/hot runner)
20~25 pcs/min (W/out hot runner)

Machine size: 3500 x 1200 x 3330 mm

Total net weight: approx. 2300 kg
