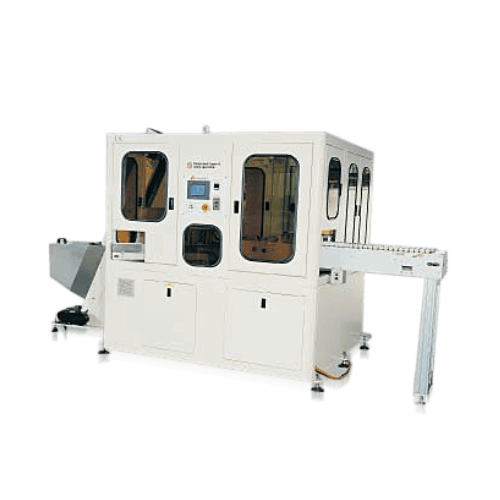

Classification : Capping & Foiling Machine
Country: Taiwan
Phone: 886-2-22994281
Fax: 886-2-22994284
Contact Person: Mr. Angus Wu
There are three functions in this machine, and you can operate them individually or synchronously.
With additional conveyor for feeding tubes automatically.
No tube, no sealing and capping.
- Main motor: 1 HP
- Suction motor: 1/2 HP
- Drilling speed: 60 pcs/min
- Drilling dia range: Ø 3~12 mm
- Foiling dia range: Ø8~20 mm
- Foiling speed: 60 pcs/min
- Tube dia range: Ø16~60 mm
- Tube length: Ø50~200 mm
- Air consumption: 100 L/min
- Power consumption: 6.6 kw
- Conveyer motor: 150 w
- Machine size: 4200 x 1700 x 2300 mm
- Capping speed: 60 pcs/min
- Total net weight: approx. 1190 kg
- PLC: Mitsubishi
