High torsion, low-noice; temp. controls stability; double degassing
- Suitable for a variety of raw materials.
- Easy to operate; prority transcends traditional model.
- Spaghetti cutting is suitable for high melting index plastic.
- Optional equipment- crusher and mixer, enables every batch of material to mix well.
- No noise during pellet cutting
Model |
GD-85F-SP |
GD-100F-SP |
GD-120F-SP |
GD-150F-SP |
GD-175F-SP |
Main Extruder |
|||||
Screw Diameter L/D Ratio |
32 |
36 |
36 |
36 |
36 |
Main Power |
40~60HP |
60~100HP |
100~150HP |
150~250HP |
200~300HP |
Temp. Control |
5 zones |
7 zones |
8 zones |
9 zones |
10 zones |
Heating Capacity |
36KW |
42KW |
64KW |
90KW |
122KW |
Hydraulic Power |
3HP |
5HP |
5HP |
7.5HP |
7.5HP |
Enforce Hopper Power |
3HP |
3HP |
5HP |
7.5HP |
7.5HP |
Max. Outpou/Hr |
100~150kg |
180~250kg |
250~400kg |
400~500kg |
600~800kg |
Cooling tunnel |
|||||
Size(mm) |
3050*280*250 |
3050*280*250 |
4500*500*250 |
5000*500*250 |
5000*500*250 |
Pellet cutter |
|||||
Power |
3HP |
5HP |
7.5HP |
10HP |
10HP |
Blower |
|||||
Power |
3HP |
5HP |
5HP |
7.5HP |
10HP |
Storage Barrel |
|||||
Capacity |
1000L |
1000L |
1000L |
1000L |
1000L |
*The product line can be made to spec meeting customer needs.
*Equipment specifications are also constanly updated. You are welcomed to contact us for details.
Force feeding type has also come to be known as economical palletizing type as it recycles a variety of raw materials.

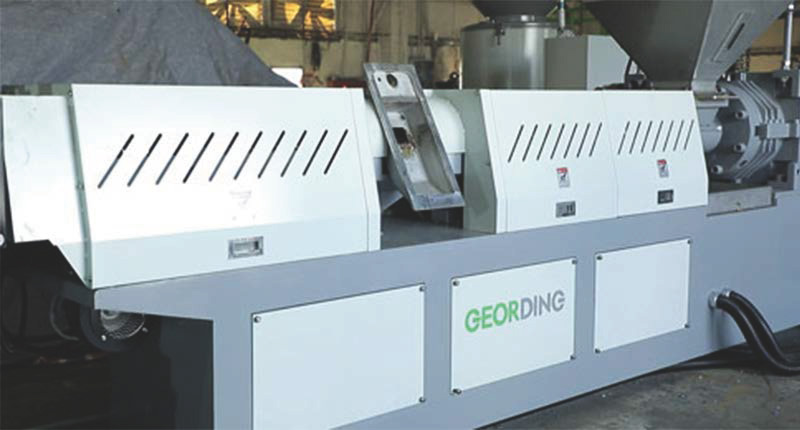

The main extruder provides the best feeding, mixing, ventilation, heating and capacity as it is designed way based on customer's raw material, capacity, and compounding degree.

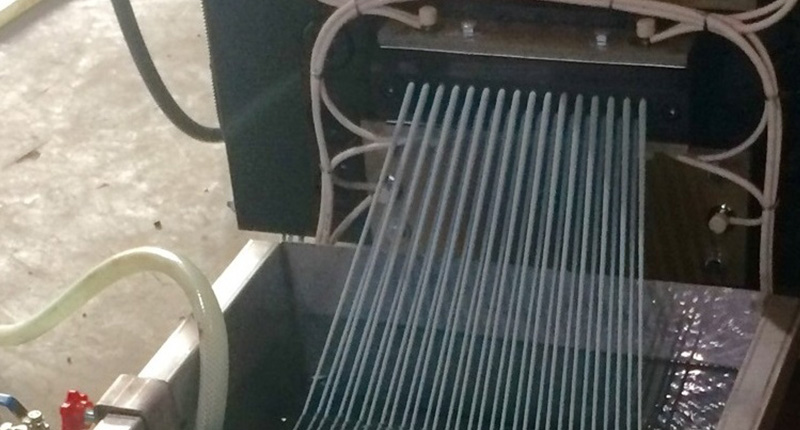

User-friendly spaghetti cutting system is suitable for high melting index materials.

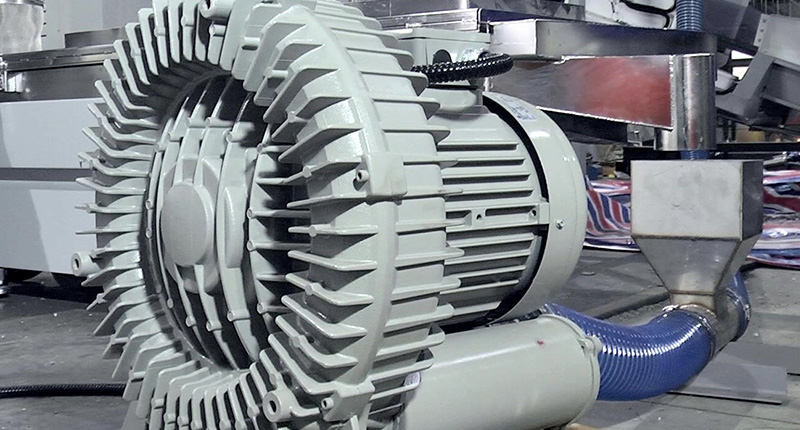

Blower with noiseless design.

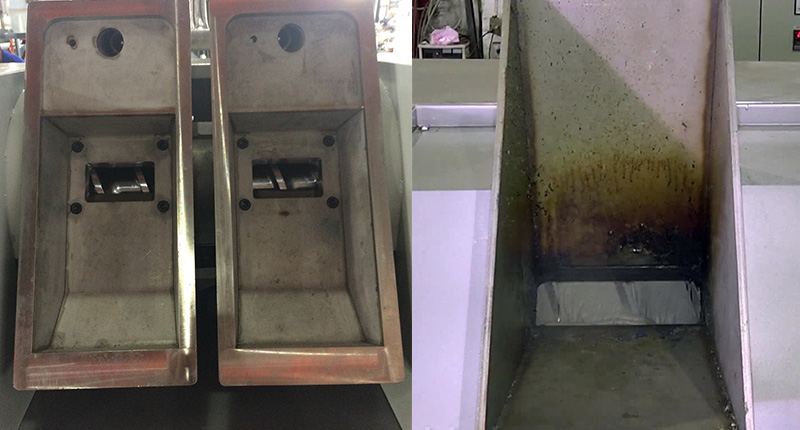

Venting hole for main extruder provides best ventilation.
