Automatic Oil Hydraulic Powder Forming Machine - LA/LB Series

Classification : PRODUCTS

LONG CHANG MECHANICAL INDUSTRIAL CO., LTD.

Country: Taiwan

Phone: 886-6-2531251

Fax: 886-6-2535271

Contact Person: Ping Shun Huang

Inquiry Now

● Melamine powder, urea powder and phenol powder etc material molding forming use.
● Continuous automatic operation can be molded without help of an operator.
● Oil hydraulic type, high-speed powder forming.

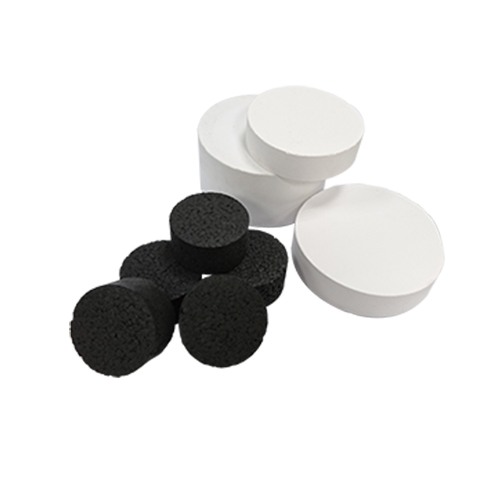

● Molded tablets are uniform accurate in weight and size density.
● Hardness of tablets can be regulated by adjusting the hydraulic system.
● According to different sharp of molded tablets to change different punch size.

SPEC	TYPE	LA-50	LB-80
COMPRESSIBLE FORCE	TON	50~140	50~140
THICKNESS OF TABLET	MM	30~50	30~50
DIAMETER(MAX)	MM	φ40~φ80	φ40~φ80
PCS OF ROTATION	PCS	1PC / TIME	2PCS / TIME
TABLET SPEED	PCS/MIN	4~7	8~14
MOTOR	HP	7 1/2	10
OIL TANK CAPACITY	GAL	65	120
MACHINE DIMENSIONS	L	2350	2700
	MM W	1100	1200
	H	1800	1900
MACHINE WEIGHT	KG	2300	3300
WRAPPING WEIGHT APPROX	KG	2700	3700
