- Invertor motor traverse
-
Molded parts with artistic appearance
More accurate and smooth movement
- Handy programmable Control System
- R:Forward/backward
- 2R:Descend and durable

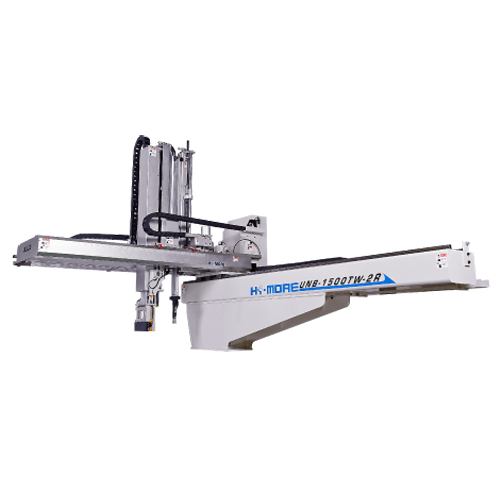

MODEL |
UNB-1300 |
UNB-1500 |
UNB-1800 |
ITEM |
SW/TW |
SW/TW |
SW/TW |
Molding Machine Size (ton) |
450-750 |
650-1000 |
850-1600 |
A. Full Length |
2970 |
3470 |
3970 |
B. Full Width |
2240 |
2620 |
2620 |
C. Height of Main Arm |
1880 |
1980 |
2130 |
D. Height of Sub Arm |
1970 |
2070 |
2220 |
E. Max. Radius of Product Handled |
560 |
||
F. Mn. Distance b/w the Arms |
330 |
||
G. Standby Position of Main Arm |
163 |
||
H. Standby Position of Sub Arm |
X/250 |
X/250 |
X/250 |
I. Distance b/w Main Arm and Base |
330/542 |
330/542 |
330/542 |
J. Distance b/w Sub Arm and Base |
X/240 |
X/240 |
X/240 |
K. Max. Demolding Stroke |
1320 |
1520 |
|
Y. Height of Control Box |
950 |
||
X. Distance b/w Control Box and Center of Gravity of Main Arm |
1800 |
2200 |
2700 |
U. Traverse Stroke |
452 |
||
Ym. Height of Base |
450 |
650 |
|
Ys. Horizontal Stroke of Main Arm |
300 |
||
Zm. Vertical Stroke of Main Arm |
1300 |
1500 |
1800 |
Zs. Verticacl Stroke of Sub Arm |
X/1300 |
X/1500 |
X/1800 |
Max. Payload (KG) |
12 (including an end effecter) |
