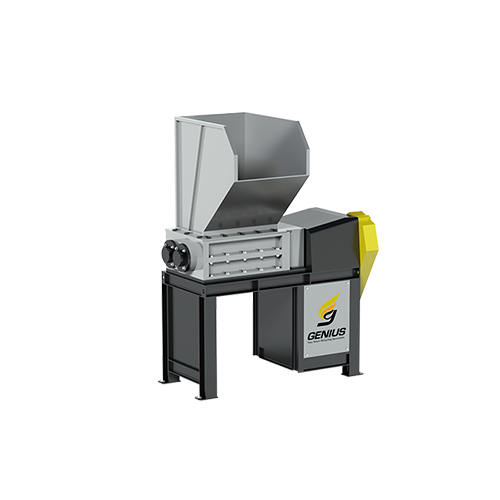

Twin Shaft Shredder (Kroko Twin Series)

Classification : Plastic Crusher & Shredder

GENIUS MACHINERY CO., LTD.

GENIUS MACHINERY CO., LTD.
Country: Taiwan
Phone: 886-4-2630-1621
Fax: 886-4-2630-1716
Contact Person: Peter Tsai
Intelligent control system
The program system monitoring the shredding status and allows automatically reverse and forward motion to keep most stability while creating best production.

High radial loads with high efficiency and great stability
The professionally designed shaft and blades are made with high wear-resistant steel and processed by heat-treatment to increase the service life. It can withstand higher radial load and create higher efficiency while keep the best stability.
Model KD-280 KD-430 KD-520 KD-750
Rotor Diameter Φ 280mm Φ 430mm Φ 520mm Φ 750mm
Rotor Blade 20t x 15 ~ 40 pc 40t x 20 ~ 30 pc 50t x 26 ~ 32 pc 50 / 75t x 30 / 20 pc
Chamber 470 x 300 ~ 800 mm 750 x 850 ~ 1250 mm 870 x 1300 ~ 1600 mm 1500 x 1450 mm
Shaft Speed 13 ~ 14 RPM 14.5 RPM 14.5 RPM 10 RPM
Motor Drive 7.5 ~ 20HP
(5.5 ~ 15kW)
15HP x 2 ~ 30HP x 2
(11kW x 2 ~ 22kW x 2)
50HP x 2 ~ 60HP x 2
(37kW x 2 ~ 45kW x 2)
150 ~ 250HP
(110 ~ 200kW)

Any kind of large materials, not limited to plastics. It could also handling waste wooden pallets, papers, tires and more.





Chemical Drums
Plastic Vehicle Parts
Used Tires



Waste Paper
Waste Wooden Pallet
WEEE Waste Electrical Equipment
