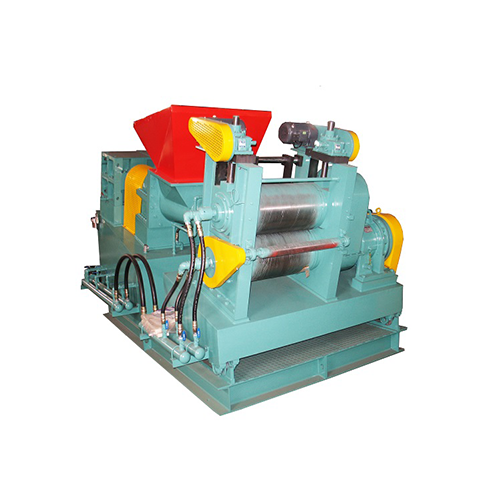

Taper Twin-Screw Sheet Preforming Machine

Classification : Sheet Preforming Machine

KNEADER MACHINERY CO., LTD.

KNEADER MACHINERY CO., LTD.
Country: Taiwan
Phone: 886-6-243-8586
Fax: 886-6-243-4205
Contact Person: Jones Wang

Sheet Pre-forming for Rubber, Plastic & Chemical Industries

This new model TAPER TWIN-SCREW SHEETS PREFORMING MACHINE usage for the rubber compound mixing after DISPERSION KNEADER conveying to the hopper of this machine to go extruding and rolling for sheet. This machine not only simply to operate but also upgrading the work efficiency, and may go with the mixer to do the integrated production

機  型

Model

KD-SPM-20

KD-SPM-75

KD-SPM-110

KD-SPM-200

擠出馬達

Extruder Power

7.5 HP

30 HP

40 HP

50 HP

滾筒馬力

Roller Power

5 HP

20 HP

30 HP

40 HP

押出量 / 每小時

OUTPPUT/ PER HR

50L

500L

900L

1500L

出片寬度 (mm)

SHEETING WIDTH

250

550

550

650

滾筒直徑 (mm)

ROLLER DIA.

230

348

356

457

滾筒長度 (mm)

ROLLER LENTH

370

700

750

850

擠押機轉速

EXTRUDER R.P.M.

1.5 – 20

1.5 – 20

1.5 – 20

1.5 – 20

滾筒機轉速

ROLLER R.P.M.

1 – 15

1 – 15

1 – 15

1.5 – 15

儲料槽尺寸 (mm)

HOPPER SIZE

450 X 450

1000 X 1000

1200 X 1200

1500X1500
