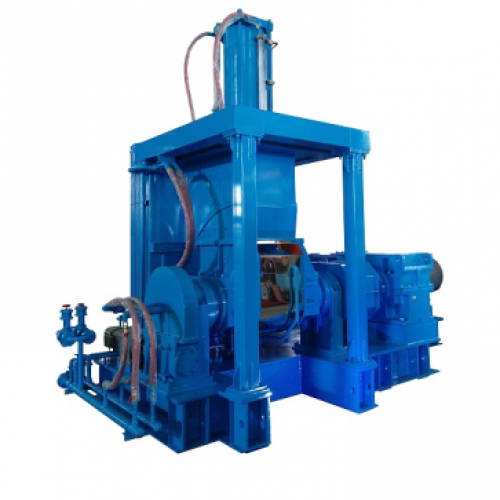

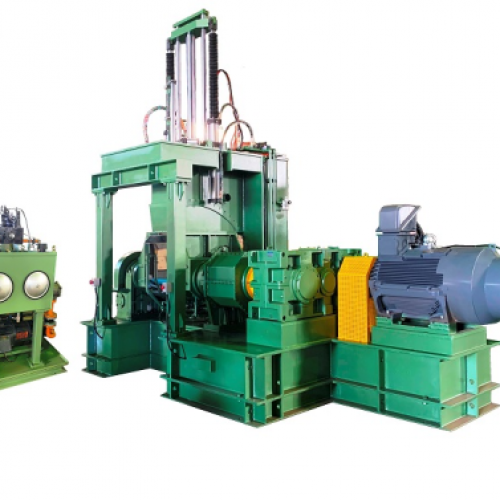

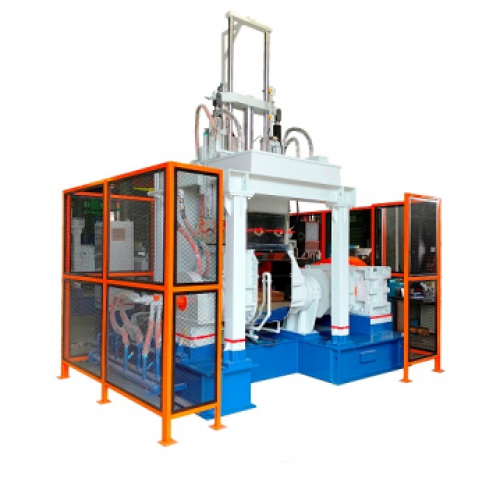

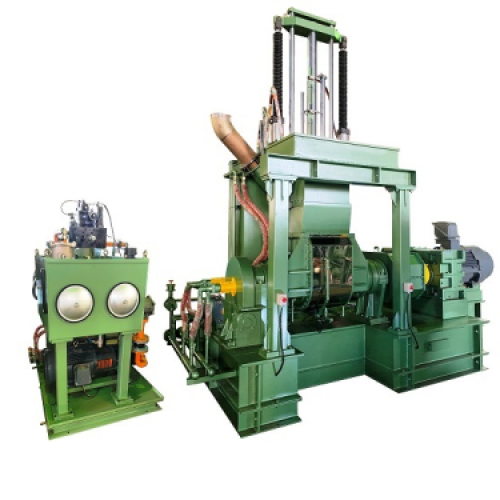

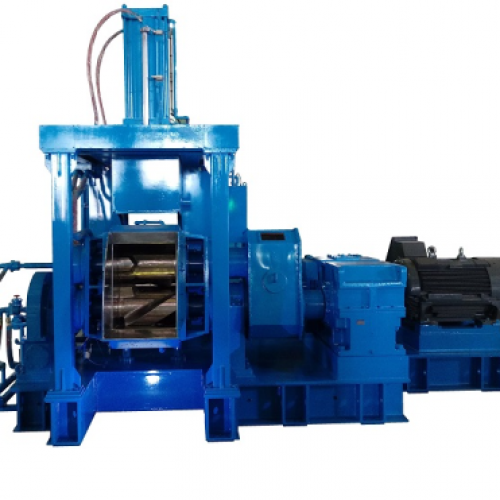

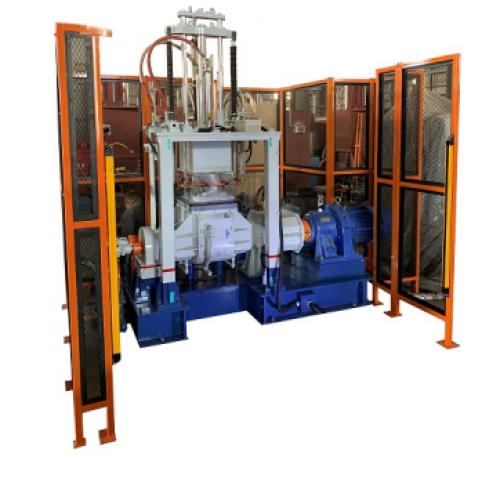

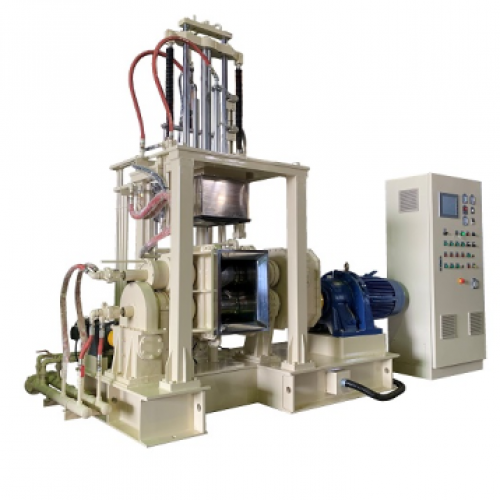

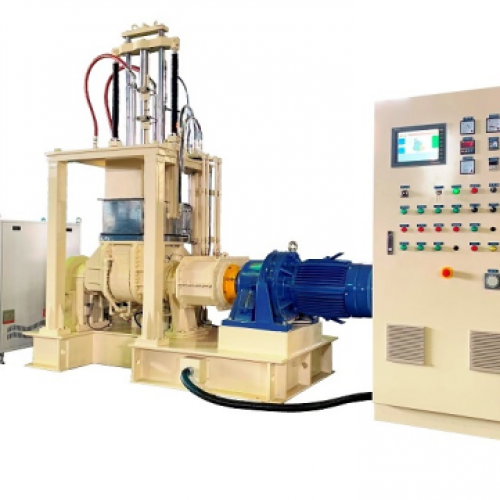

Intermesh Model Dispersion Kneader

Classification : Dispersion Kneader

KNEADER MACHINERY CO., LTD.

Country: Taiwan

Phone: 886-6-243-8586

Fax: 886-6-243-4205

Contact Person: Jones Wang

Inquiry Now

Machine application various kinds of glaze, plastics and chemistry industrial mixer mixing and kneading.

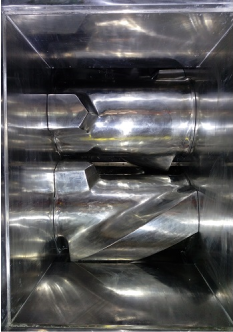

Occlusal fitting low low temperature mixing material.
Special machinery and manufacture due to this machine Machinery reached after designation:
Easy dispersibility and uniformity. Easy operation simple operation Easy to change Color change shortening kneading time, super strong heat exchange capacity, achievable B kneading and primary kneading.

Model	Mixing capa.	Main power(HP)	Brake motor	Tilting angle	Temp. control	Material feed
KD-IMK-3-20D	3 L	20	0.5 HP	Max. 130°	AUTO	FRONT FEED
KD-IMK-5-40D	5 L	40	2 HP	Max. 130°	AUTO	FRONT FEED
KD-IMK-10-60D	10 L	60/75	3 HP	Max. 130°	AUTO	FRONT FEED
KD-IMK-20-100D	20 L	100/125	5 HP	Max. 130°	AUTO	REAR FEED
KD-IMK-30-200D	30 L	150/200	5 HP	Max. 130°	AUTO	REAR FEED
KD-IMK-50-300D	50 L	250/300	7.5 HP	Max. 130°	AUTO	REAR FEED
KD-IMK-80-400D	80 L	400/500	10 HP	Max. 130°	AUTO	REAR FEED
KD-IMK-110-600D	110 L	700/800	10 HP	Max. 130°	AUTO	REAR FEED
KD-IMK-140-1000D	140 L	1000	15 HP	Max. 130°	AUTO	REAR FEED
