Feeder-Ruder Pellet Making Extruder

Classification : Extruder, Strainer & Pelletizer

Applications: Others Pellets

KNEADER MACHINERY CO., LTD.

Country: Taiwan

Phone: 886-6-243-8586

Fax: 886-6-243-4205

Contact Person: Jones Wang

Inquiry Now

Extrusion & Pelletizing for Rubber、Plastic & Chemical Industries

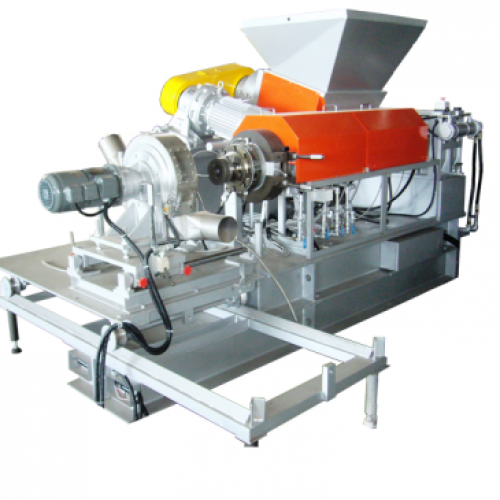

This new model Feeder-Ruder Pellet Extruder usage for extruding and pellet producing after Plastic or Rubber compound mixing in the Dispersion Kneader and conveying to the hopper of this machine.

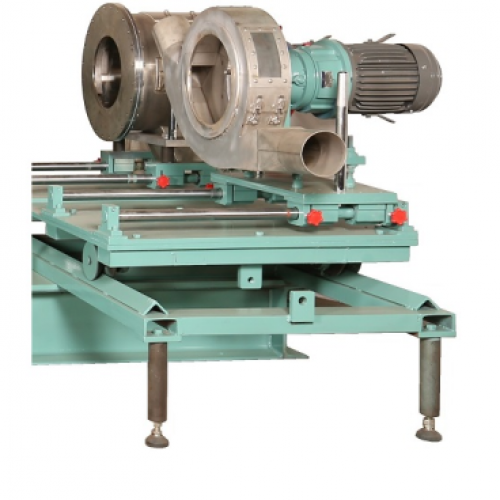

Pellets making method with mold Hot Face Cutting and Water ring cutting two kind..

機型 Model	供料螺桿馬達 Feeder power	供料螺桿轉速 Feeder R.P.M.	儲料槽容量 Hopper Capa.	押出螺桿直徑 Extruder Dia.	押出螺桿馬力 Extruder power	押出螺桿轉速 Extruder R.P.M.	切粒馬力 Pellet cut power
KD-FR-50	3 HP	0 – 20	50 Liter	50 mm	10 HP	0 - 50	1/2 HP
KD-FR-75	3 HP	0 – 20	50 Liter	75 mm	15 HP	0 - 50	1 HP
KD-FR-100	5 HP	0 – 20	100 Liter	100 mm	20 HP	0 - 50	1 HP
KD-FR-125	7.5 HP	0 – 20	150 Liter	125 mm	50 HP	0 - 50	2 HP
KD-FR-160	10 HP	0 – 20	200 Liter	160 mm	75 HP	0 - 50	2 HP
KD-FR-180	10/15 HP	0 – 20	250 Liter	180 mm	100/125 HP	0 - 50	3 HP
KD-FR-200	15/20 HP	0 – 20	250 Liter	200 mm	125/150 HP	0 - 50	3 HP
KD-FR-250	25/30 HP	0 – 20	350 Liter	250 mm	150/200 HP	0 - 50	5 HP
