HIGH SPEED AUTOMATIC SIDE SEALING AND CUTTING BAG MAKING MACHINE

Classification : HIGH SPEED AUTOMATIC SIDE SEALING AND CUTTING BAG MAKING MACHINE

WORLD STEEL MACHINERY COMPANY

WORLD STEEL MACHINERY COMPANY
Country: Taiwan
Phone: 886-4-22348001
Fax: 886-4-22348009
Contact Person: Andy

Our high speed side automatic sealing and cutting machine is suitable for a range of shapes folds and pockets, interlinking with other equipment to be able to make even more types of bags for easy exchange. Some examples of pattern types include: punching equipment for round holes, butterfly holes, utilizes handheld punching equipment for accuracy and can produce perforations for letter and packaging tear off strips.

Using a vertical up and down heat sealing system and supersonic sealing line device means improved sealing quality and can also produce anything from 'V' type standing pouches to handbags.

If this isn't enough, we also can provide extra parts for improved production accuracy and quality, this includes EPC edge sensor, servo motor to drive the machinery and an automatic conveyer to get your finished products to the packing section as soon as possible. This machine is also suitable for already perforated and/or folded films.

 MODEL

 WIDTH OF BAG

 LENGTH OF BAG

 PRODUCTION CAPACITY

 HEATER

 MOTOR

 POWER

 REQUIRED

PACKING DIMENSIONS

 (L X W X H M)

 WS-220S

2-20 CM

 MAX.45 CM

  MAX.220 PCS/MIN

 2.2 KW

 2HP

 6KW

     4 X 1.5 X 2.1

 WS-260S

5-60 CM

 MAX. 60 CM

 MAX.220 PCS/MIN

 2.2 KW

 2HP

  6KW

     4.2X 1.5 X 2.1

 WS-320S

5-60 CM

 MAX. 76 CM

 MAX.200 PCS/MIN

 2.5 KW

 2HP

 6.5KW

     4.2 X 1.65 X 2.1

 WS-430S

5-60 CM

 MAX. 96 CM

 MAX.150 PCS/MIN

 2.7 KW

 2HP

 7KW

 4.2 X 1.85 X 2.1




World Steel machines are produced to cut down on manpower, able to provide up to 220PCS/min (depending on the bag size and material). Compared to other bag making machines in the same class the system provides easy and high quality sealing. With the advent of industry 4.0 our machinery has also fully embraced automation. With an electric automatic control system, automatic positioning when stopping, a high precision electric eye device to place accurate printing marks and a device that automatically stops the machine when encountering anomalies in the production process. This plus an imported long life conveyor belt and the option to produce a variety of plastic bags, packaging bags, stand up bags and more makes this the perfect choice for your factory.

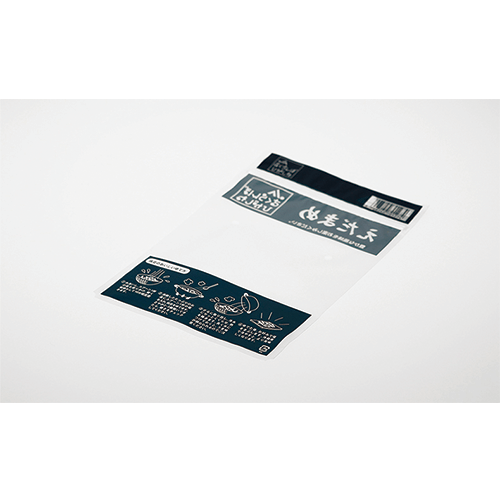

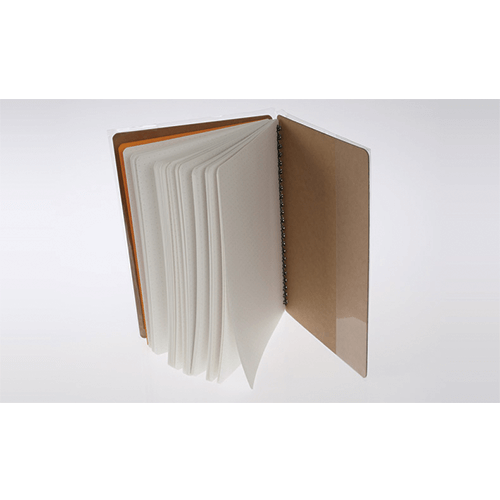

  • - Book Sleeves

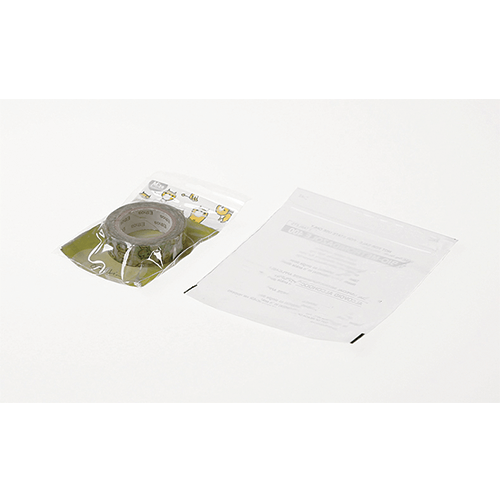

  • - Self Adhesive Bags

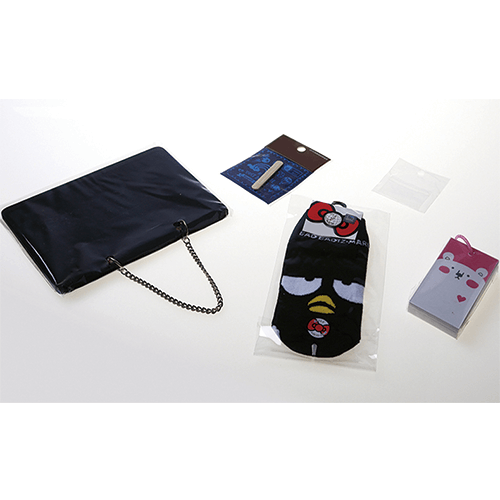

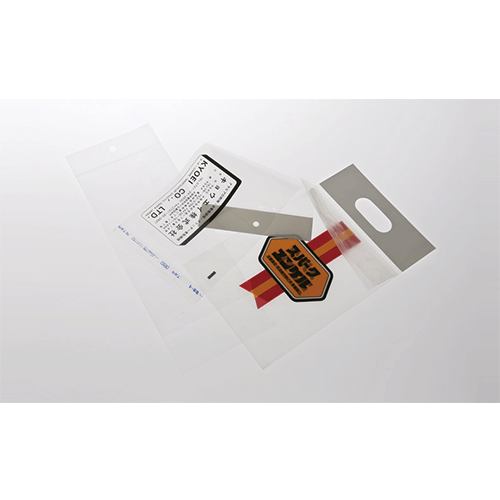

  • - Hang bags
  • - Sanitary bags
  • - Chicken bags
  • - Shopping bags

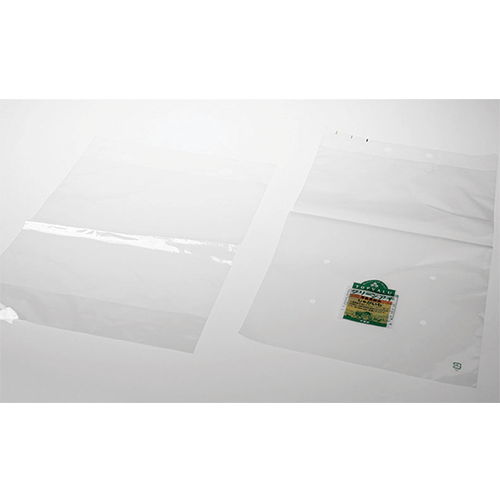

  • - Vegetable and fruit breathable bags
  • - Courier bags
  • - Toilet paper bags
  • - Diaper Bags
  • - Zipper bag
  • - PP information book page
