Classification : Products
Country: Taiwan
Phone: 886-6-2330519
Fax: 886-6-2330398
Contact Person: Joseph Lung

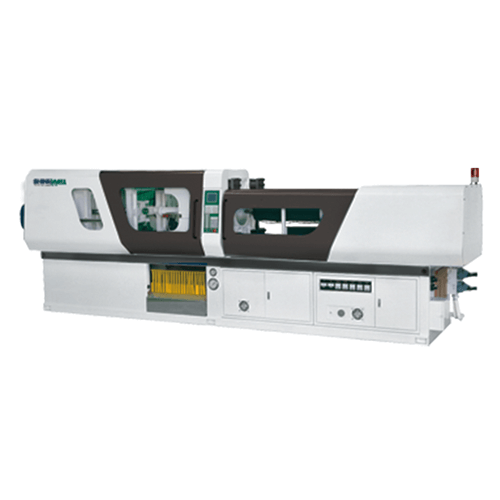

SPECIFIC TECHNICAL REVISES FOR PVC RIGID MATERIAL
- Common commissioning for molding products such as fittings of a highly acid chemical.
- A one-piece rod and a standard L/D ratio screw design makes melt flow smoothly.
- Includes a standard, grade B, bimetallic screw barrel to provide a better wear-resistance and lifespan.
- Radiation fans set on top of the sleeve of the barrel to avoid overheating issues of the rigid PVC inside of the barrel.
| Model | International Size | Theoretical Injection Volume | Clamping Force | Space Between Tie Bars | Mold Opening Stroke |
| 90PVC | 900H-326 | 226 | 90 | 360x360 | 330 |
| 120PVC | 1200H-435 | 318 | 120 | 395x395 | 380 |
| 150PVC | 1500H-614 | 452 | 150 | 425x425 | 430 |
| 190PVC | 1900H-760 | 594 | 190 | 470x470 | 480 |
| 230PVC | 2300H-958 | 763 | 230 | 515x515 | 525 |
| 270PVC | 2700H-1423 | 995 | 270 | 555x555 | 570 |
| 320PVC | 3200H-1703 | 1232 | 320 | 620x620 | 620 |
