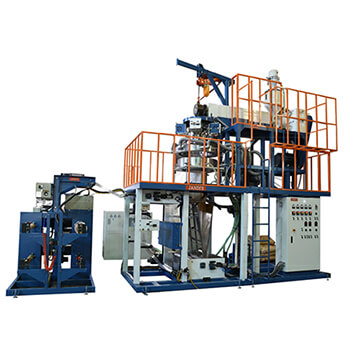

P.P. Film Inflation Machine (GF-P65)

Classification : P.P. Tubular Film Inflation Machine

JANDI'S INDUSTRIAL CO., LTD.

JANDI'S INDUSTRIAL CO., LTD.
Country: Taiwan
Phone: 886-5-220-0506
Fax: 886-5-220-1955
Contact Person: Mr. Huang

MODEL

GF-P45

GF-P55

GF-P65

GF-P75

MATERIAL TO BE USED

P.P. (Polypropylene) 聚丙烯

MAX. FILM WIDTH

400 mm

600 mm

800 mm

1000 mm

EXTRUDER SIZE

45 mm

55 mm

65 mm

75 mm

MOTOR+INVERTER

15 HP

25 HP

30 HP

40 HP

DIES

150 mm



250 mm

350 mm

450 mm

MAX. CAPACITY

40 kg/hr

60 kg/hr

80 kg/hr

100 kg/hr

CONTROL PANEL

INDEPENDENT TYPE SWITCH BOARD

AIR RING

1 SET, SINGLE LIP AIR RING

BLOWER+INVERER

1/2 HP

1HP

2 HP

2HP

SIZING RING

5 PCES

DRYING SYSTEM

HOT AIR TYPE

ROLLER WIDTH

500 mm

700 mm

900 mm

1100 mm

OPTIONS

Auto Loader, Hopper Dryer, Manual Screen Changer, Pressure Gauge, Die Rotating Unit,
Corna, Static Eliminator, 4-Spindle Winder, Air Shaft, Water Chiller … etc.

* Details are available with quotation, specifications could be changed upon request.
