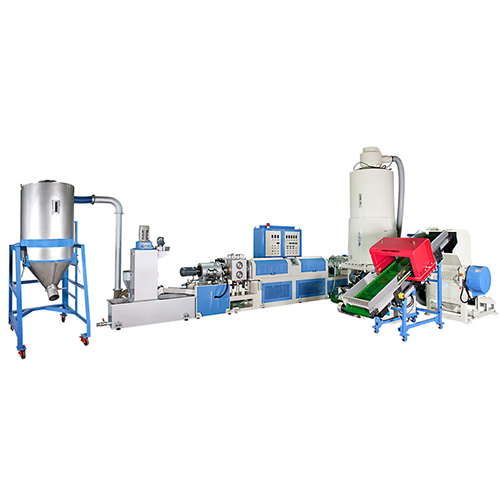

SIDE FEEDING & DIE FACE CUTTING PLASTIC RECYCLING & PELLETIZING MACHINE

Classification : PLASTIC RECYCLING MACHINE
Country: Taiwan
Phone: 886-6-2027859
Fax: 886-6-203 2789
Contact Person: Mr.Kuo
Inquiry Now
  • Suitable for both soft and hard plastics (films, bags, flakes, bottles, yarns and injection molded materials)
  • Easy operation & maintenance
  • Special design of die face and cutter ensuring uniformity of pellet size and lengthening blade's lifespan
  • Stable production capacity of high-quality granules
  • 20% lower energy requirements than other models
  • One-person operation and less labor costs
MODEL WPF85 WPF100 WPF120 WPF150
Material Type HDPE / LDPE / LLDPE / PP / BOPP / ABS / PS / EVA
Screw Dia. (mm) Φ75 Φ100 Φ120 Φ150
Max. Output 250 kg/hr 350 kg/hr 550 kg/hr 800 kg/hr
Screw L/D Ratio 32:01:00 32:01:00 32:01:00 32:01:00
Main Motor 75 HP 100 HP 150 HP 200 HP
(w/ Inverter) AC Inverter AC Inverter AC Inverter AC Inverter
Side Feeding Motor 7.5 HP 10 HP 15 HP 20 HP

* Specifications are subject to change without notice.
