Classification : Whole-plant Equipment of Raschel Machines
Country: Taiwan
Phone: 886-3-4972288
Fax: 886-3-4972266
Contact Person: Henry Yu

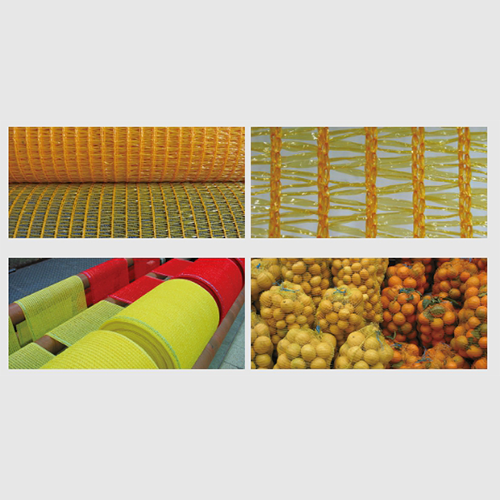

- Onion bags (So called “ready-made sacks” for packing orange, lemon, potato......etc.)
- for special wide nets
- for double layered nets
- Yarn let-off system method described below:
- Yarn feeding from slitting extension machine
(ISO system) - Yarn feeding from creel stand
Yarn feeding from warp beams - Taking of warp knitted sacks. The continuous netting is batched into rolls of 1000 mm dia.
or online automatic cutting machine
| Model | WMD |
| Applicable Yarn | HDPE flat yarn, Mono filaments, |
| Working Width | 170"-210" |
| Machine Gauges | Packing Sacks: 2-6 needles / per inch |
| Yarn Supply System |
From: Warpping beams / Creel stand / Slitting extension M\C |
| Performance | 500 - 600 rpm |
| Number of Bars | 9-11 Ground Bars |
| Main Motor | 7.5kw |
| Machine Weight | 8500kgs |
