Name: Head Strap Type N95 / FFP2 Mask Making Machine
Brand: MING JILEE ENTERPRISE CO., LTD.

Head Strap Type N95 / FFP2 Mask Making Machine

Classification : Mask Making Machine

MING JILEE ENTERPRISE CO., LTD.

Country: Taiwan

Phone: 886-6-5783420

Fax: 886-6-5783347

Contact Person: Chris Chang

Inquiry Now

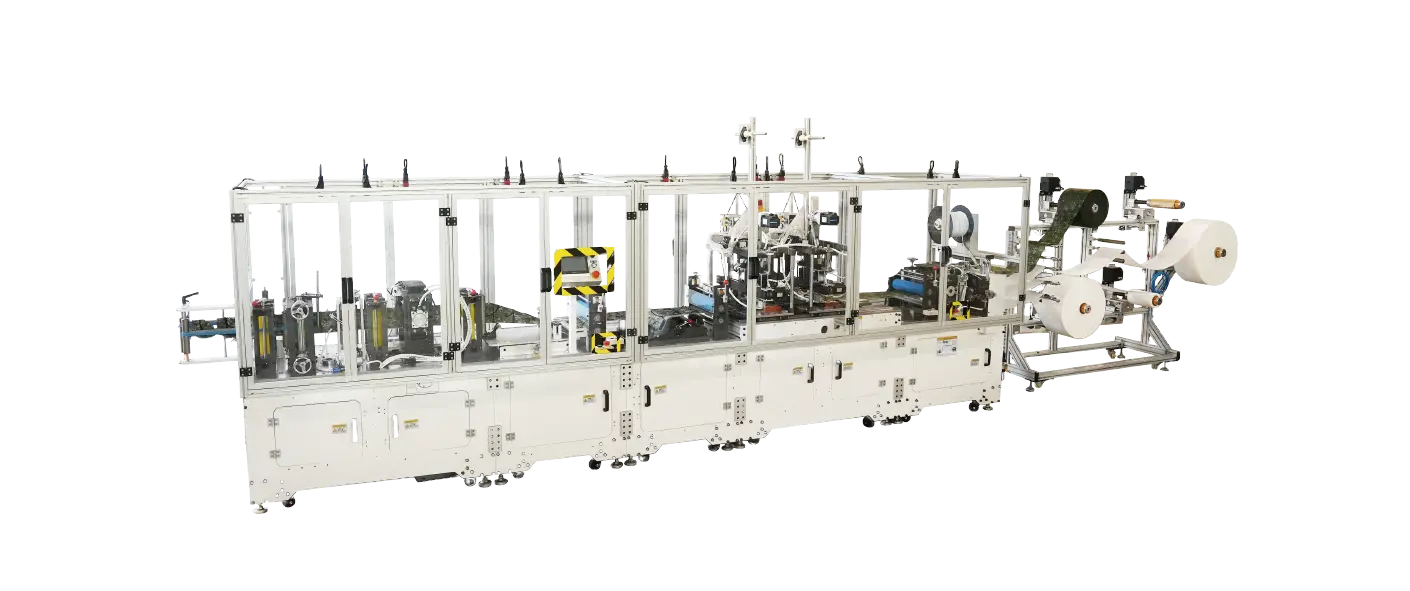

The MGA-MSK-KN95HL is a head strap type N95 / FFP2 mask making machine that forms non-woven fabric layers into a three-dimensional mask body, welding the layers and attaching a nose bridge piece and head strap in an automated production sequence. It is designed for mask production using up to five layers of fabric, with a customized mask design incorporating a head strap.

A high-speed steel nose bridge cutter extends cutter durability, and an automatic nose bridge application system pairs with a central folding mechanism to keep the process running. A rotary die cutter handles precise shaping and cutting for each mask.

Model	MGA-MSK-KN95HL
General Machine Specifications
Machine Dimension	9,000 (L) × 1,300 (W) × 2,000 (H) mm
Machine Weight	2,500 kg
Required Power	Single Phase, 9 kw
Machine Performance

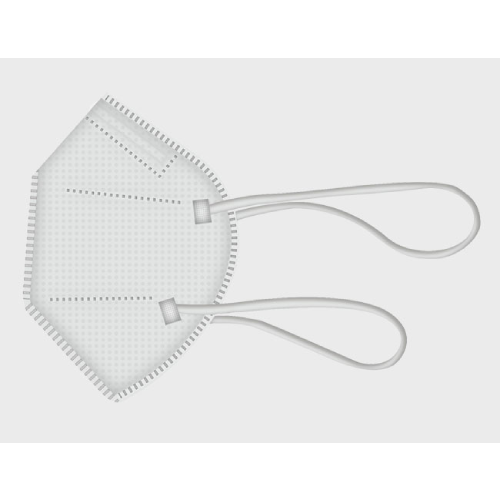

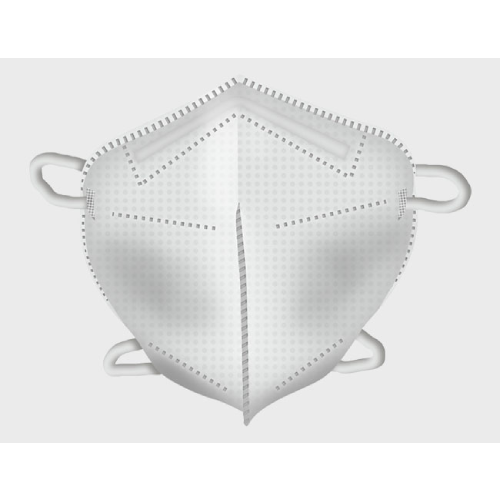

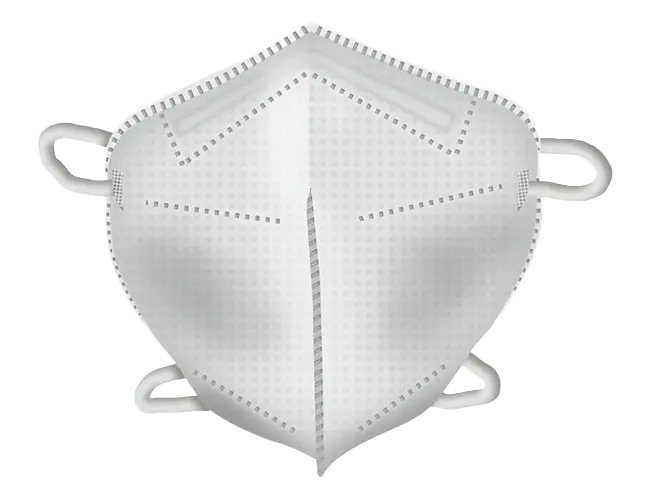

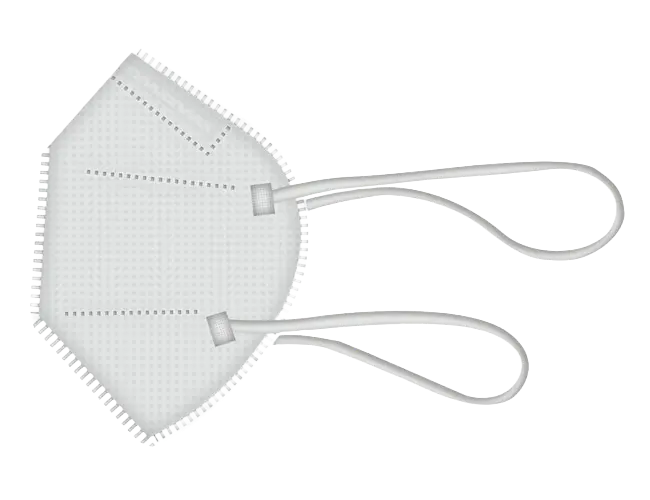

Mask Design	Customized design with head strap
Output	35 - 50 pcs/min
