High Speed Zipper Profile Extruder( AB-40Z)

Classification : Zipper Extrusion

ASARI PLASTIC CORPORATION

Country: Taiwan

Phone: 886-6-5933-566

Fax: 886-6-5933-567

Contact Person: Mr. Liang

Inquiry Now

AB40Z Zipper Profile Extruder is the pioneer of the Chinese world; The quality, output speed, service, research and development are deeply love by those in Europe, America, Japan and other countries.

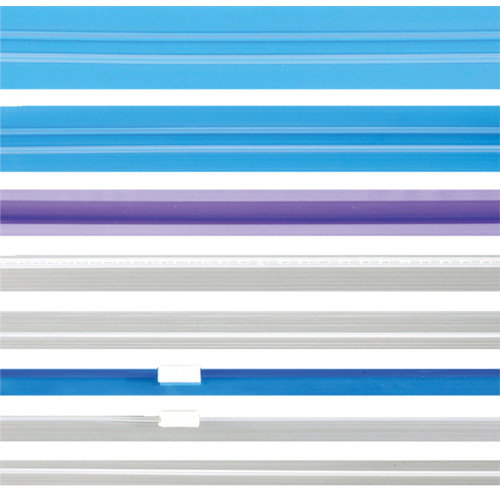

Changing die can produce all kinds of zipper profile.
The machine is suitable for LDPE and PP resin.
The machine produces high quality zipper profile in one high-speed and stable process from the extrusion mold, chilling water system, vacuum high-pressure air-dryer, zipper closures joint device, and packing.

Main Unit
Main Motor	10HP AC *1 Set
Total Power Require	17Kw
JSI Gearbox	3-Axis 1 SET
Barrel & screw	L/D 1:30 42mm SACM-645
Output	20~60m/min (Ourput varies depend on resin, cooling, profile, profile size, operator and etc)
Stainless Steel Circulation Water Tank	1 SET
High-Pressure Vacuum Air Blower	AC 2HP
Take-up Motor	AC 1/2HP Gear Inverter
Take-up Rubber Roll	x 3 Set
Main & Secondary Control Panel
Zipper Closure Joint Unit	x 1 Set
Chiller For Two Unit	5HP
Include 2 Die	LD1513 PP1513 LD2004 PP2004 LD1518 PP2010 PP2225 LD2025 LD2040
Manual Operate Joint Unit
Control Panel
DC Motor	DC 1/4 HP
Take-Up Frame & Take-Up Roll
Manual Operate Winder
Winder Motor
L-R DC Motor	DC 1/8 HP
L-R Return
DC Motor Governor
Torque Motor Governor
Manual Operate Winder
Toolbox, Heater, Temperature Controller, On/Off Switch, Filter
