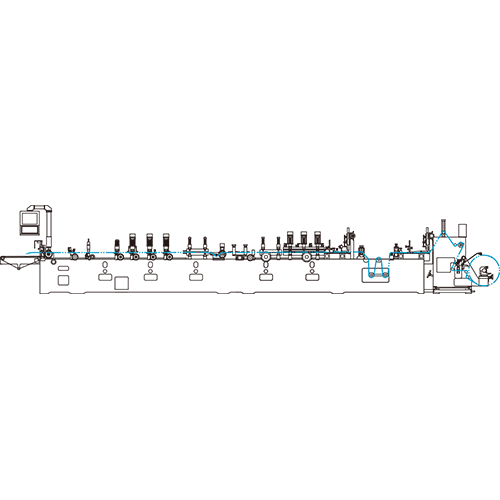

Center Seal / Fin Seal / Four Border Seal Bags with Gussets ACM Series

Classification : Bag Making Machine
Country: Taiwan
Phone: 886-4-24832477
Fax: 886-4-24830852
Contact Person: Angela Chi
Inquiry Now
  • Sealable laminated Film, thickness 40-150 µ.
  • 2-step film folding devices to ensure accurate and stable bag dimensions.
  • Double sealing and cooling devices to ensure top sealing quality at high speed.
  • Constant sealing time to reduce time for quick setup and waste.
  • 3” airshaft in unwind.
  • Skip operation.
  • Edge position control (EPC).
  • Paper strip feeding device.
Model No. ACM-43 ACM-43Q
Max. Parent Web Width 820 mm 1020 mm
Max. Parent Web Diameter 600 mm (Each side)
Center-Seal Bag Width 50 ~ 400 mm
Gusset-Seal Bag Length 50 ~ 300 mm 50 ~ 400 mm (Seal two times)
4-Border-Seal Bag Width N / A 110 ~ 380 mm (Each side)
Max. Gusset Depth 25 ~ 60 mm (Each side)
Machine Speed 180 Cuts / min.
Installation Information
(For Standard Specification)
Net Weight 3400 kg 3800 kg
Area Required L8700 x W2700 x H2200 (mm) L10300 x W2700 x H2200 (mm)
Power 380V / 15KW / 287A
Water 15 - 20 ℃
Air 6 kg / cm3
