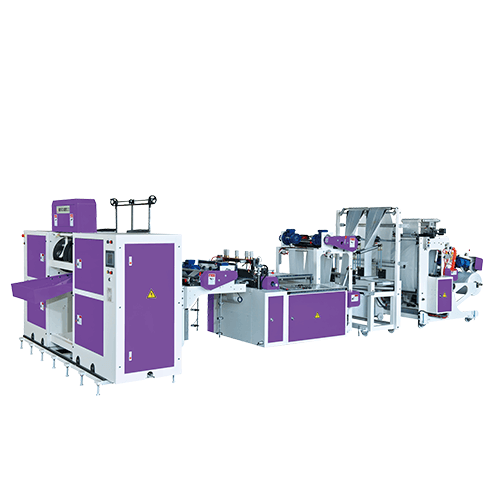

BJAHCL2+ST-Double-Independent-Lane Coreless 'Star' Folding Perforating Bag-on-Roll Machine

BJAHCL2+ST-Double-Independent-Lane Coreless 'Star' Folding Perforating Bag-on-Roll Machine
Classification : Perforated Bag
PARKINS PLASTIC MACHINERY CO., LTD.
PARKINS PLASTIC MACHINERY CO., LTD.
Country: Taiwan
Phone: 886-5-2358505
Fax: 886-5-2359463
Contact Person: Angela Lin
Inquiry Now
●  Uses servo motor for feeding, with stable sealing abilities, and fast on speed change. Easy to change bag size, and size error is permissible.
●  This machine is specialized for manufacturing perforated coreless bag-on-roll products. Available for double line "Star" sealing & regular bag.
Model BJAHCL2+ST 3248
Max. Cutting Width mm (inch) 177(7")x2
Max. Cutting Length mm (inch) 1.2(48")
Thickness (micron/sheet) 6-25
Length Tolerance (mm) ±1
Production Rate (pcs/min) max.200
AC Driving Motor (HP) 2
Heater Capacity (kW) 4.2
Power Required (kW) 19.1
Machine Dimensions (LxWxH cm) 770x300x190
Machine Weight (kg) 3200
C-Folding Width mm (inch) 762 ( 30")
Max Width of Finished Roll Double Line 76-177(3"-7")x2
