Classification : Horizontal Injection Molding Machine
Country: Taiwan
Phone: 886-2-28471194
Fax: 886-2-28471491
Contact Person: Jonathan Ke
● Without the sprue, it saves a lot runner resin weight.
● Produce precise micro injection products.
● Products with multi cavities can be highly concentrated to the center.
● 2-platen 4-cylinder direct clamping system.
● Patented central-radial platen durable for 30 years.
● Intelligent program controller makes injection easier.
● The shortest injection molding machine
● Precise energy-saving hydraulic system.

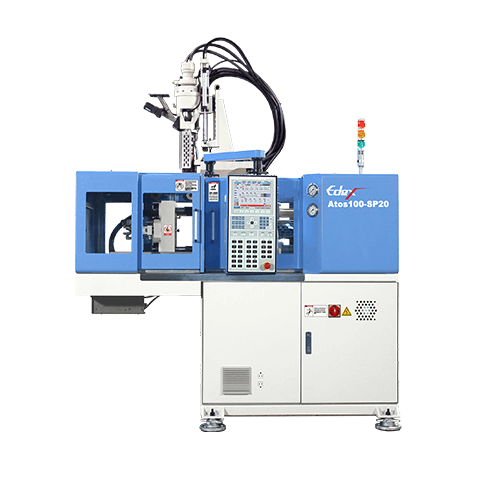

Model | Atos100-SP20 | |||||||
Injection system | Screw diameter | mm | 14 | 16 | ||||
Plunger diameter | mm | 8 | 10 | 12 | 10 | 12 | 14 | |
Injection volume | cm3 | 2.5 | 3.9 | 5.7 | 6.3 | 9 | 12.3 | |
Injection pressure | kgf/cm2 | 2590 | 2509 | 2951 | 2509 | 2951 | 2623 | |
Injection speed | mm/s | 1088 | 719 | 424 | 719 | 424 | 350 | |
Screw speed | RPM | 400 | 400 |
Clamping system | Max. clamping force | KN/Tonf | 100/10.2 | ||
Distance between tie-bars | mm | 210x210 | |||
Platen dimension | mm | 350x350 | |||
Max. daylight | mm | 350 | |||
Minimum mold thickness | mm | 100 | |||
Ejector stroke | Tonf / mm | 1.6 / 40 | |||
Heater zone | set | N3+N3 | |||
Heater capacity | KW | 2.1 | |||
Electric power | KW | 4.5 | |||
Machine dimension | m(LxWxH) | 1.9x0.9x2.37 | |||
Machine weight | Ton | 1.5 | |||
Dimension | m (LxWxH) | 1.7x1.47x2.9 | 1.97x1.47x2.9 | 1.63x1.98x2.9 | |
Weight | Ton | 2.55 | 2.7 | 2.87 |
