Name: 3 Ply Medical Mask Machine with In-Line Print Registering System
Brand: MING JILEE ENTERPRISE CO., LTD.

3 Ply Medical Mask Machine with In-Line Print Registering System

Classification : Mask Making Machine

MING JILEE ENTERPRISE CO., LTD.

Country: Taiwan

Phone: 886-6-5783420

Fax: 886-6-5783347

Contact Person: Chris Chang

Inquiry Now

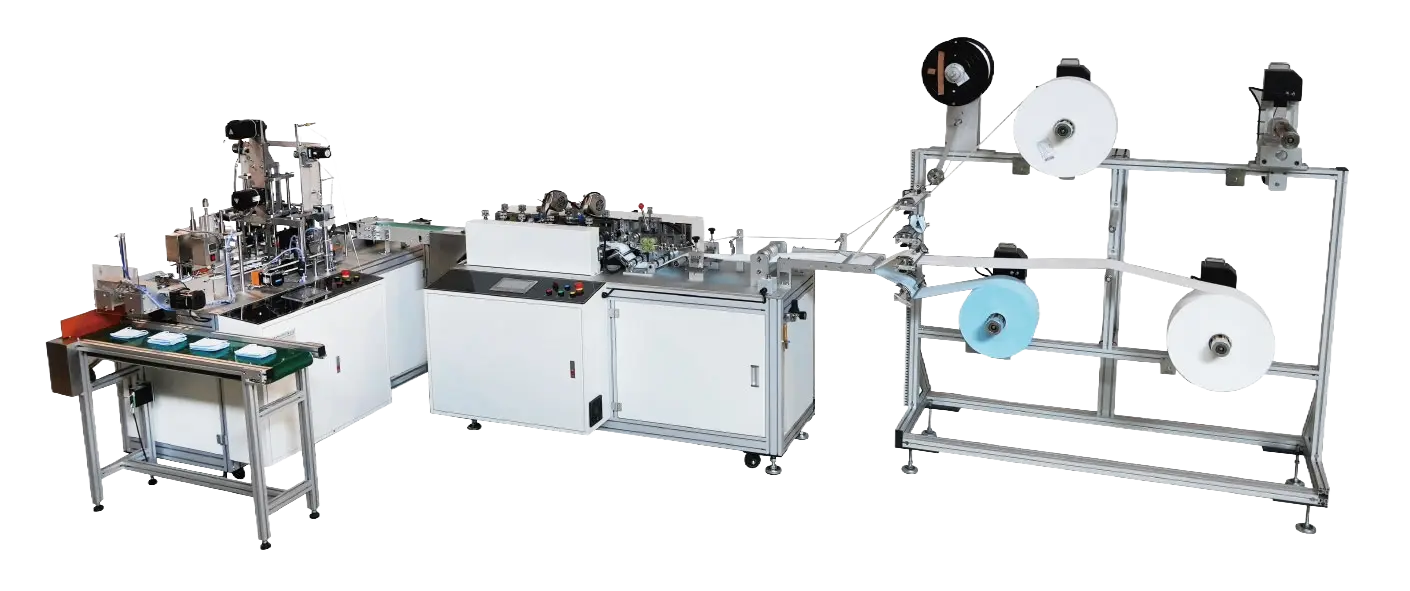

The MSK-400-S8-PF is a 3-ply medical mask machine with an in-line print registering system, converting non-woven and melt-blown fabric rolls into finished 3-ply flat-fold masks through nose wire insertion, ultrasonic welding, ear loop attachment, and cutting in one continuous operation. It supports registered printing cuts for precise designs and draws material from four unwinding stations feeding non-woven and melt-blown materials.

A nose bridge flattening device supports mask quality, and the ultrasonic welding device is Taiwan-made. Servo-controlled ear-loop cutting keeps pace with production speed, and an automatic conveyor moves counted, stacked masks smoothly to packaging.

Model	MSK-400-S8-PF
General Machine Specifications
Machine Dimension	5,950 (L) × 2,750 (W) × 1,880 (H) mm
Machine Weight	820 kg
Required Power	8 kw
Machine Performance
Mask Design	175 x 95 mm and 145 x 95 mm By PLC controller, no need additional roll and cutter
Output	70 - 100 pcs/min
