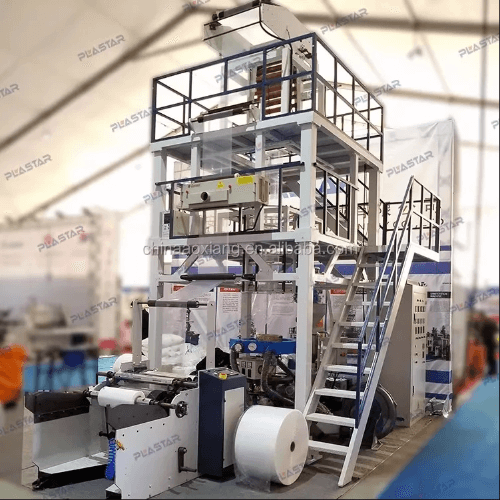

Main Features: 3-Layer Co-Extrusion ABC Line
| System / Feature | Technical Specifications | Key Capabilities | Optional / Configurable |
|---|---|---|---|
| Extrusion System ABC 3-Layer | **Model:** SGII-3L1500 **Capacity:** 220-280 kg/h **Materials:** LDPE, LLDPE, mLLDPE |
✔ High-efficiency plasticization ✔ Stable output for 3-layer films |
Screw Design: Barrier mixing screw for homogenization. |

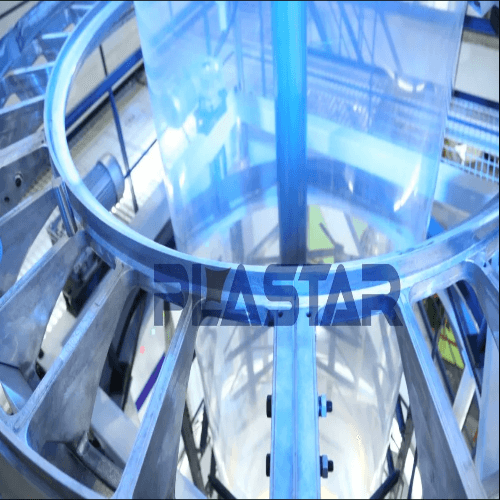

| Die Head Unit Precision Co-Ex | **Type:** ABC Co-extrusion Die **Thickness:** Min 0.006mm **Cooling:** High-efficiency Air Ring |
✔ Uniform layer distribution ✔ Produces high-clarity films |
Options: IBC (Internal Bubble Cooling), Rotary Die. |
| Control & Automation Smart Operation | **Dosing:** Gravimetric System **Temp Control:** PID Precision |
✔ Loss-in-weight control ✔ Automatic thickness/output regulation |
Add-ons: Auto Thickness Gauge, Computerized Screen. |

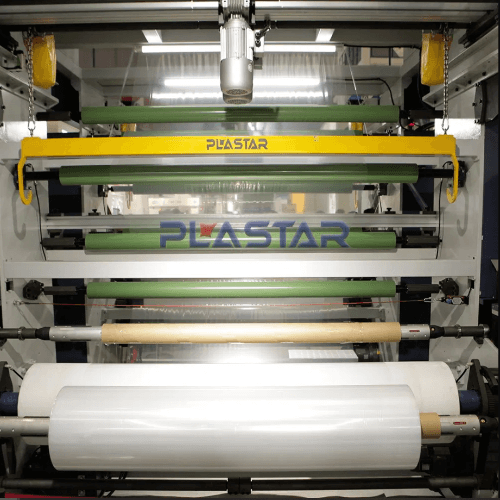

| Winding Unit Heavy Duty | **Max Roll Dia:** 1100 mm **Type:** Friction / Surface Winder |
✔ Easy air-shaft changeover ✔ Handles heavy rolls efficiently |
Config: Auto-cutter, Back-to-back winder. |
Basic Information Overview
| Category | Primary Specifications | Operational Details | Service & Standards |
|---|---|---|---|
| Machine ID General Info | Model NO.: SGII-3L1500 Origin: China Marketing Type: Ordinary Product |
✔ Type: 3-Layer Co-Extrusion Line ✔ Automation: Automatic |
Computerized: Yes |
| Technical Specs Performance | Folding Width: 1500mm (Standard) Production Capacity: 220-280 kg/h |
✔ Raw Materials: LDPE, LLDPE, mLLDPE ✔ Layers: ABC (3 Layers) |
Output Stability: High |
| Certifications Quality Assurance | Certificates: CE, ISO9001:2008 | ✔ Liability Period: 1 Year ✔ Verified Standards |
Safety: CE Compliant |
| Service & Usage Support | After-Sales: Video Tech Support Post-Warranty: Online Support |
✔ Applications: Greenhouse Films, General Packaging, Lamination |
Support Type: Remote / Video |
|
Model |
SGII-3L1000 |
SGII-3L1200 |
SGII-3L1500 |
SGII-3L2000 |
|
Suitable Material |
HDPE / LDPE / LLDPE / EVA |
|||
|
Film Width |
1000 mm |
1200 mm |
1500 mm |
2000 mm |
|
Film Thickness |
0.002 - 0.2 mm |
|||
|
Max. Output |
180kg / h |
220kg / h |
280kg / h |
350kg / h |
|
Extruder |
||||
|
Screw Diameter |
50mm; 55mm |
55mm; 60mm |
60mm; 65mm |
65mm; 75mm |
|
Screw L/D |
30:1 |
|||
|
Barrel Cooling |
Water Cooling |
|||
|
Main Motor Power |
22kw *2 ; 30kw *1 |
30kw *2 ; 37kw *1 |
37kw *2 ; 45kw *1 |
37kw *2 ; 55kw *1 |
|
Total Power |
105kw |
180kw |
190kw |
220kw |
|
Die Head |
||||
|
Die Head Type |
Three layers with inner cooling device |
|||
|
Air Ring |
Double lips air ring |
|||
|
Traction Roller Width |
Dia 165 * 1200 mm |
180 * 1400 mm |
Dia 200 * 1700 mm |
Dia 220 * 2200 mm |
|
Effective Width |
Dia 165 * 1000 mm |
180 * 1200 mm |
Dia 200 * 1500 mm |
Dia 220 * 2200 mm |
|
Traction Speed |
5 - 70 m/min |
5 - 60 m/min |
5 - 50 m/min |
5 - 45 m/min |
|
Winding Unit |
||||
|
Wingding Type |
Friction type automatic single / double winder |
|||
|
Wingding Speed |
5 - 70 m/min |
5 - 60 m/min |
5 - 50 m/min |
5 - 45 m/min |
|
Voltage |
380V, 50Hz |
|||
|
Dimension |
About 7.0 * 1.5 * 7.5 m |
About 8.5 * 5.5 * 8.5 m |
About 9.0 * 6.0 * 10.5 m |
About 10.0 * 6.5 * 12 m |
|
Weight |
About 9 T |
About 12 T |
About 13 T |
About 15 T |
