Five-Layer Co-Extrusion Blown Film Machine for Polyethylene

Classification : Film Blowing Machine

Plastar Packaging Machinery Co., Ltd.

Country: China

Phone: 86-577-63712666

Contact Person: Savannah

Inquiry Now

System / Feature	Technical Specifications	Key Capabilities	Optional / Configurable
Extrusion System 5-Layer Co-Extrusion	Screws: 65mm x 4 + 80mm x 1 L/D Ratio: 30:1 Material: Bi-metallic (Hardness ≥75)	✔ High Max Output (480 kg/h) ✔ Stable running performance	Materials: PE, PA, PP, EVA, EVOH, TIE

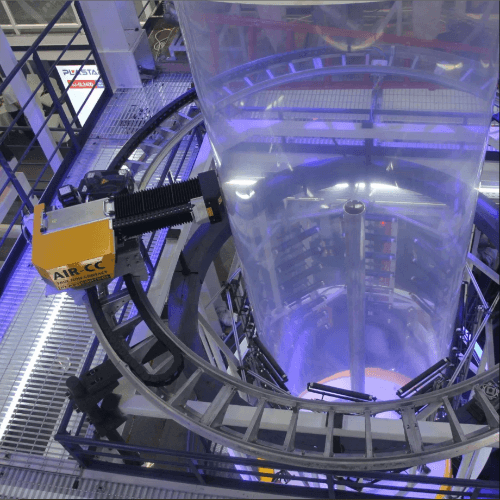

Control Unit Precision & Automation	Temp Zones: 29 Zones Thickness: 0.02 - 0.2 mm Tolerance: ±2-3%	✔ Loss-in-weight gravimetric dosing ✔ Computerized line speed sync	Add-ons: IBC System, Auto Thickness Control, EPC/CPC.
Winding Unit Double Station	Max Width: 1600 mm Max Roll Dia: 1100 mm Speed: 45-80 m/min	✔ Automatic bobbin change ✔ Handles heavy film rollers	Options: Oscillating Take-up, Auto Hopper Loader.
Applications End-Use Products	Produces multi-layer films with high barrier properties against oxygen/moisture.	✔ Stand-up pouches ✔ Soft tubes (toothpaste) ✔ Protection films	Customizable: Machine config adapts to specific film use.

Category	Primary Specifications	Operational Details	Service & Standards
Machine ID General Info	Model NO.: SG Origin: China Marketing Type: Ordinary Product	✔ Type: PE Film Blowing Machine ✔ Automation: Automatic	Computerized: Yes
Technical Specs Performance	Max Folding Width: 2500mm Screw Diameter: 80mm	✔ Production Capacity: 350kg/H ✔ Raw Material: LLDPE	Film Type: Wide Format
Certifications Quality Assurance	Certificates: CE, ISO9001:2008	✔ Liability Period: 1 Year ✔ Verified Standards	Safety: CE Compliant
Service & Usage Support	After-Sales: Video Tech Support Post-Warranty: Online Support	✔ Applications: Food Packaging, Electronic Device Packaging	Support Type: Remote / Video

SPECIFICATIONS FOR FIVE LAYERS AIR COLUMN BAG BLOWN FILM EXTRUDER
FEATURE	MATERIAL TO BE USED	PE PA PP EVA EVOH TIE (CUSTOMRISED, PLEASE ADVISE MATERIAL)
	MAX. FILM WIDTH	MM	800-1600
	THICKNESS OF FILM	MM	0.02-0.2
	THICKNESS TOLERANCE	+-2-3%
	MAX. EXTRUSION OUTPUT	KG/H	480
EXTRUDER	SCREW DIA.	MM	65 X 4; 80 X 1
	SCREW L/D	30:1
	SCREW / CYLINDER	BI-METALLIC (38CRMOALA) HARDNESS 75 OR OVER
	DRIVING MOTOR	KW	45 X 4; 55 X 1

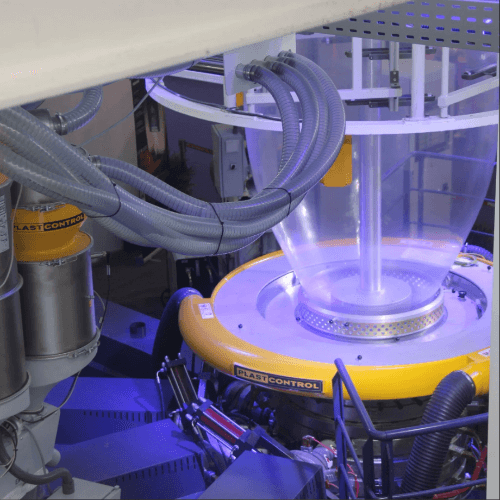

	DIES	MM	400
	TEMPATURE CONTROL	ZONES	29
TAKE-UP UNIT	TYPE	FIXED TYPE / OSCILLATION TYPE
	PINCH ROLLER	165 X 1600L
	TAKE-UP MOTOR	SERVO MOTOR 2.8KW
	TAKE-UP SPEED	45-80 M/MIN

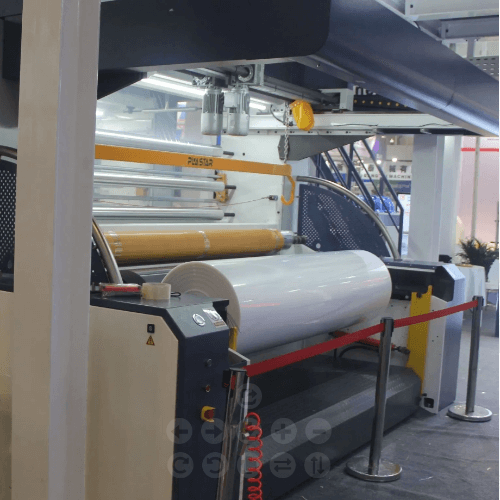

WINDING UNIT	WINDING TYPE	DOUBLE STATION WINDER WITH AUTOMATIC BOBBIN CHANGE
	EFFECTIVE WIDTH	1600 MM
	DIMENSION (LxWxH)	141012 M
OPTIONAL DEVICE	Gravimetric Dosing Unit	Osillating Take Up Unit
	IBC (Internal bubble cooling computer control system)	Line Speed Synchronized with Computer Control
	Thickness Measurement	Chiller
	Thicknss controller	Heat Slitting Device
	Automatic Hopper Loader	EPC / CPC (edge / center Position Control)
	Film Surface Treater	Electronic Tension Control
	Pressure Gauge	Crane for Air Shaft
	Automatic Gauge Control With Automatic cooling ring	Rotary Die
*Specification are subject to change without notice for improvement five layers air column bag blown film extruder will be customerised according to the material to be used, The film specification that going to produce, and application of the film
