Classification : Film Blowing Machine
Country: China
Phone: 86-577-63712666
Contact Person: Savannah
Main Features: Energy-Saving ABA (3-Layer) Film Blowing Machine
| System / Feature | Technical Specifications | Key Capabilities | Optional / Configurable |
|---|---|---|---|
| Extrusion System ABA 3-Layer Co-Ex | **Structure:** 3 Layers (A-B-A) **Screw Dia:** 60mm (Main) **Feeding:** Bi-metallic Forced Feeding |
✔ Energy & Cost Saving ✔ Middle layer (B) accepts high % CaCO3 |
Materials: LDPE, HDPE, LLDPE, Recycled. |
| Die Head Unit 3-Layer Design | **Type:** Precision ABA Die Head **Film Width:** Max 1000mm **Distribution:** Uniform A-B-A layers |
✔ High mechanical strength ✔ Excellent surface finish (Virgin outer layers) |
Options: Rotary Die, Fast Screen Changer. |

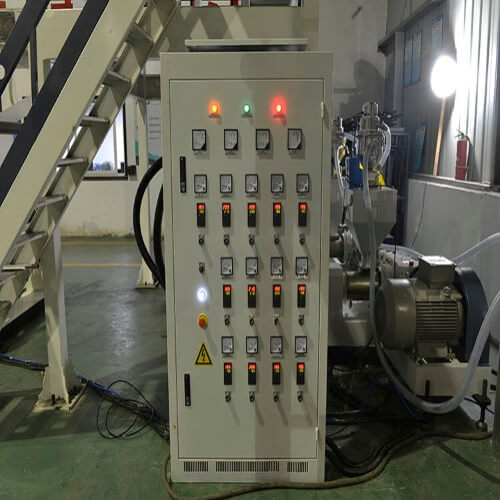

| Control & Auto Smart Management | **Inverters:** Yaskawa / Delta **Interface:** Centralized Touchscreen |
✔ Centralized feeding & batching ✔ Automatic weight control |
Add-ons: Auto Loader, Corona Treater. |
| Applications Efficient Production | Ideal for courier bags, garbage bags, and agricultural films. | ✔ Uses recycled material in B layer ✔ Significantly reduces raw material costs |
Config: Single or Double Winder available. |
Basic Information Overview
| Category | Primary Specifications | Operational Details | Service & Standards |
|---|---|---|---|
| Machine ID General Info | Type: ABA Film Blowing Machine Origin: China Grade: Automatic |
✔ Structure: ABA Co-Extrusion ✔ Inverters: Yaskawa / Inovance / Delta |
Marketing Type: Ordinary Product |
| Technical Specs Performance | Max Folding Width: 1000mm Screw Diameter: 60mm |
✔ Power: 40kw ✔ Materials: HDPE / LDPE / LLDPE |
Efficiency: Energy Saving |
| Certifications Quality Assurance | Certificates: CE, ISO9001:2008 | ✔ Warranty: 1 Year ✔ Verified Standards |
Safety: CE Compliant |
| Service & Usage Support | After-Sales: Video Tech Support Post-Warranty: Online Support |
✔ Applications: Food Packaging, Electronic Device Packaging |
Support Type: Remote / Video |
| Model | SD-2LABA800 | SD-2LABA1000 | SD-2LABA1200 | SD-2LABA1500 |
|---|---|---|---|---|
| Suitable Material | HDPE/LDPE | |||
| Film Width | 800 mm ( folding width ) | 1000 mm | 1200 mm | 1500 mm |
| Film Thickness | 0.008 - 0.1 mm | |||
| Max. Output | 100kg / h | 120kg / h | 120kg / h | 200kg / h |

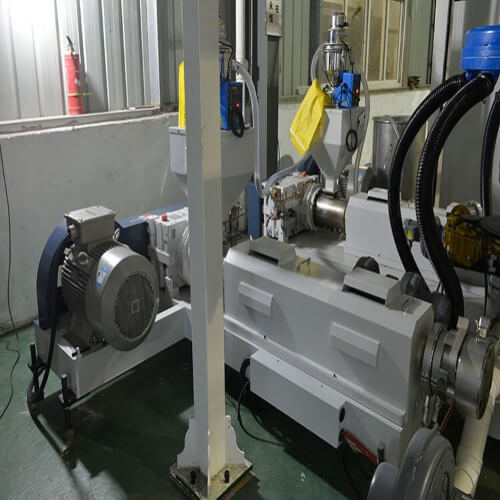

| Extruder | ||||
| Screw Diameter | 55mm; 55mm | 55mm; 55mm | 55mm; 65mm | 55mm; 75mm |
| Screw L/D | 30:1 | |||
| Barrel Cooling | Water Cooling | |||
| Main Motor Power | 22kw; 22kw | 30kw; 30kw | 22kw; 37kw | 22kw; 45kw |
| Total Power | 70kw | 100kw | 100kw | 105kw |

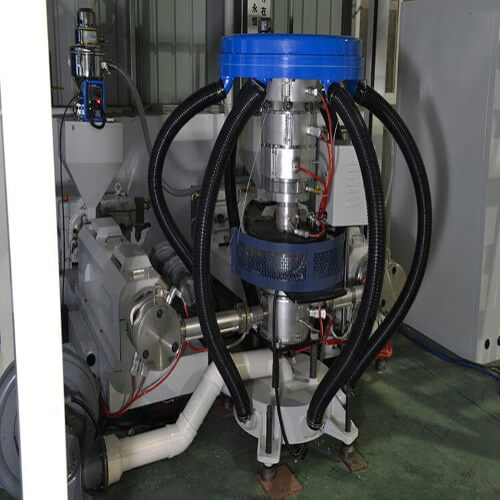

| Die Head | ||||
| Die Head Type | Three layers ABA die head | |||

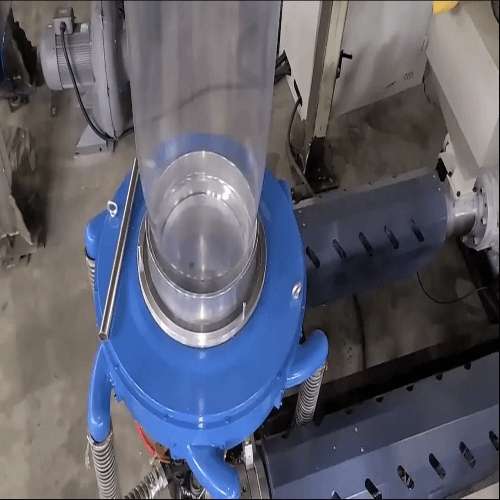

| Air Ring | Double lips air ring | |||

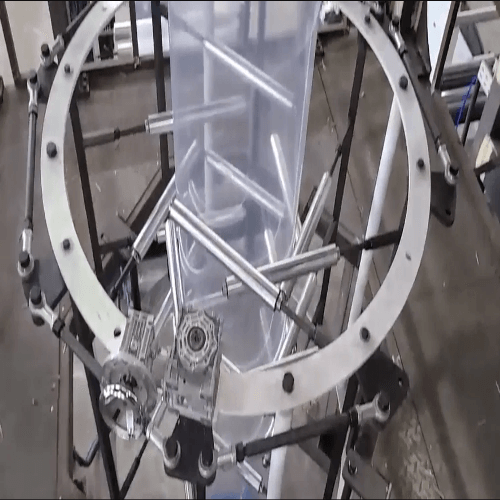

| Traction Roller Width | 1000 mm | 1200 mm | 1400 mm | 1700 mm |
| Effective Width | 800 mm | 1000 mm | 1200 mm | 1500 mm |
| Traction Speed | 120m / min | |||

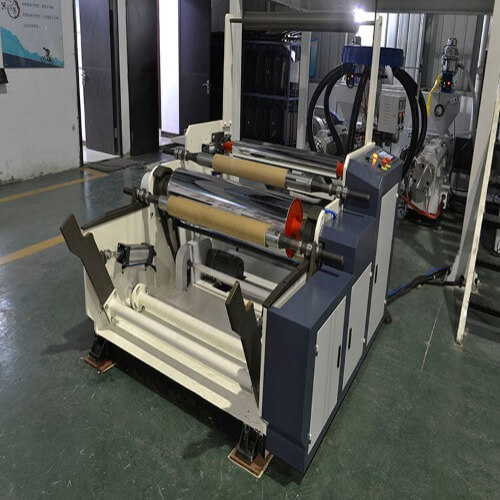

| Winding Unit | ||||
| Wingding Type | Friction type automatic single / double winder | |||
| Wingding Speed | 120m / min | |||
| Voltage | 380V, 50Hz | |||
| Dimension | 5000 * 3000 * 6500 mm | 6000 * 4000 * 7000 mm | 6000 * 4000 * 6500 mm | 6000 * 4000 * 8500 mm |
| Weight | 4.5 T | 5 T | 5 T | 5.5 T |
