Classification : Rubber Injection Molding Machine
Country: Taiwan
Phone: 886-6-2320999
Fax: 886-6-2325333
Contact Person: Louis Tsai

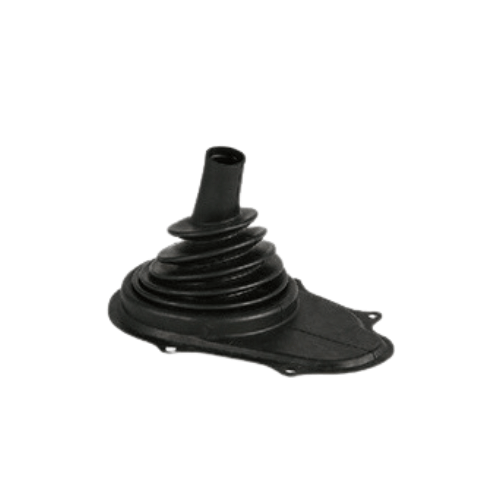

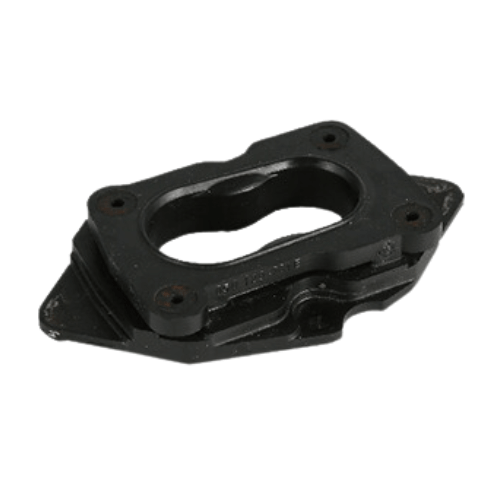

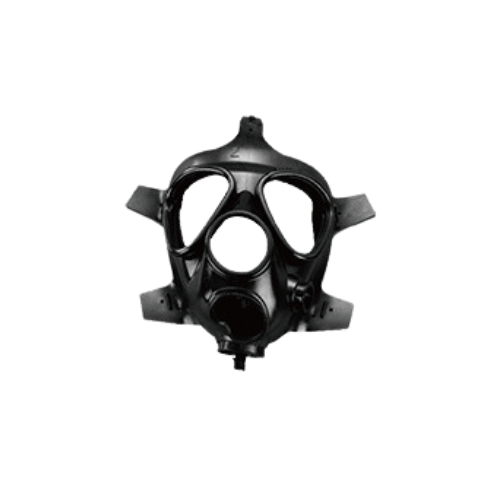

- Ildeal for the production of natural & synthetic rubber, oil &heat resistant rubber, and reclaimed rubber.
- High bed structure.
- JD-250RH PLC equipped with standard PLC controller only.
- All other JD-RH series machines allow the optional micro-computer controller.
| MODEL | JD-RH65T | JD-RH200T | JD-RH260T | JD-RH300T | JD-RH400T | JD-RH500T | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Shot Volume | c.c. | 500 | 1500 | 1500/2000 | 2000/4000 | 3000/4000 | 4000/5000 | ||||
| Injection Pressure | kgf / cm² | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 | ||||
| Injection Cylinder Pressure | kg / cm² | 170 | 170 | 170 | 170 | 170 | 170/120 | ||||
| Injection rate | c.c. / sec | 70 | 100 | 100 | 100/165 | 165 | 165/170 | ||||
| Screw Diameter | mm | 32 | 45 | 45 | 45 | 45 | 50 | ||||
| Strip Dimension (T x W) | mm | 6 x 30 | 10 x 60 | 10 x 60 | 10 x 60 | 10 x 60 | 10 x 60 | ||||
| Clamping Force | ton | 65 | 200 | 260 | 300 | 400 | 500 | ||||
| Plate Size | mm | 350 x 380 | 480 x 500 | 550 x 620 | 520 x 580 520 x 800 |
580 x 620 | 600 x 650 | 650 x 730 | 650 x 730 | 800 x 900 | 800 x 850 |
| Piston Diameter | mm | 200 | 355 | 400 | 430 | 500 | 560 | ||||
| Piston Stroke | mm | 380 | 560 | 480 | 560 | 420 | 600 | 600 | 630 | 760 | |
| Space Between Tie Bar | mm | 430 x 200 | 575 x 210 | 675 x 365 | 645 x 275 | 660 x 350 | 695 x 295 | 795 x 455 | 780 x 440 | 970 x 580 | 915 x 485 |
| Oil Hydraulic System | HP | 10 | 20 | 20 | 20/30 | 30 | 40 | ||||
| Hot Oil Cycling Motor | kw | 0.5*2 | 0.5*2 | 0.5*2 | 0.5*2 | 0.5*2 | 0.5*2 | ||||
| Platen Heating Capacity | kw | 7.6 | 15 | 20.8 | 20 | 21 | 25 | 25.8 | 25.8 | 35.6 | 35.6 |
| System Pressure | kg / cm² | 210 | 210 | 210 | 210 | 210 | 210 | ||||
| Oil Tank Capacity | liters | 250 | 370 | 470 | 560 | 600 | 890 | ||||
| Machine Dimensions | mm | 1300 x 900 x 2850 | 2550 x 1880 x 3880 | 2830 x 2000 x 3940 | 2950 x 2070 x 3890 | 3120 x 2600 x 4160 | 3050 x 2700 x 5190 | 3040 x 2390 x 4080 | 3040 x 2390 x 4080 | 3420 x 2780 x 5400 | 3240 x 3630 x 5520 |
| Machine Weight (Approx) | kg | 4100 | 6200 | 6500 | 8000 | 8100 | 8600 | 11000 | 11000 | 12500 | 14500 |
MOLD INSTALLATION & HEATING PLATE DIMENSION
| MODEL | JD-RH65T | JD-RH200T | JD-RH260T | JD-RH300T | JD-RH400T | JD-RH500T | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| STROKE / DIMENSION | 380 | 560 | 480 | 560 | 420 | 600 | 600 | 600 | 630 | 700 | |
| A (mm) | 350 | 480 | 550 | 520 | 580 | 600 | 650 | 650 | 800 | 800 | |
| B (mm) | 380 | 500 | 620 | 580 | 620 | 650 | 730 | 730 | 900 | 850 | |
| C (mm) | 610 | 800 | 930 | 910 | 930 | 960 | 1060 | 1060 | 1290 | 1270 | |
| D (mm) | 150 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 300 | 300 | |
| E (mm) | - | 300 | 300 | 300 | 300 | 400 | 400 | 400 | 500 | 500 | |
| F (mm) | 90 | 120 | 120 | 135 | 135 | 145 | 145 | 145 | 200 | 200 | |
| G (mm) | 13 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | |
| H (mm) | 21 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| I (mm) | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | |
| J (mm) | 11 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | |
| K (mm) | 430 | 575 | 675 | 645 | 660 | 695 | 795 | 780 | 970 | 915 | |
| L (mm) | 200 | 210 | 365 | 275 | 350 | 295 | 455 | 440 | 580 | 485 | |
| M (mm) | 100 | 100 | 100 | 100 | 100 | 120 | 150 | 140 | 140 | 150 | |
| N (mm) | 70 | 86 | 86 | 95 | 95 | 100 | 100 | 100 | 100 | 120 | |
| O (mm) | 390 | 520 | 620 | 580 | 620 | 640 | 720 | 720 | 880 | 855 | |
