Bag Making Machine for Bottom Sealing Bags

Classification : Sort By Bag

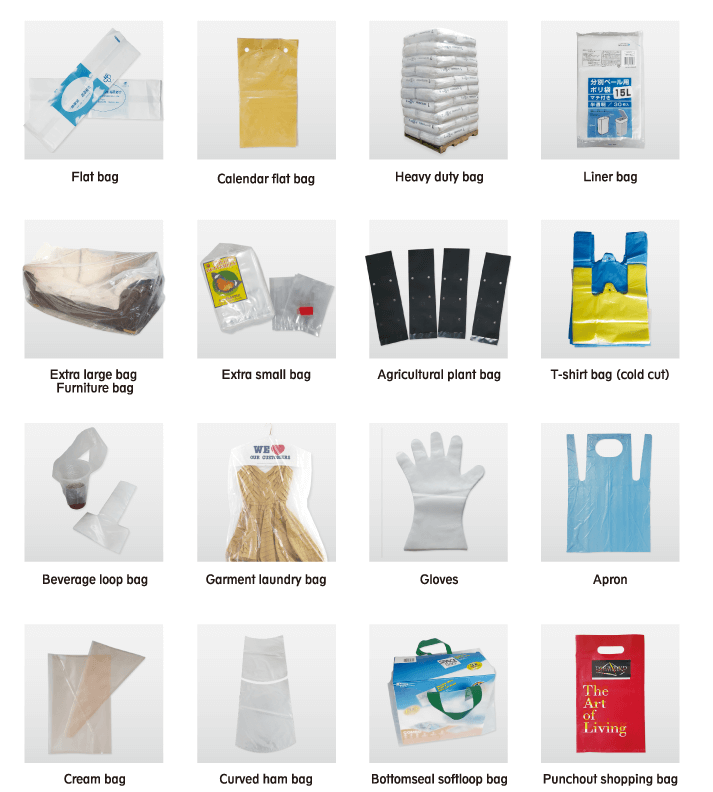

Applications: Packaging Medical Equipments Bottom Seal Bags Gloves Heavy Duty Bags Jumbo Bags T-shirt Bags

PLAS ALLIANCE LTD.

Country: Taiwan

Phone: 886-5-2217005

Fax: 886-5-2211929

Contact Person: Sammuel Chiu

E-catalog Inquiry Now

Bottom Seal System Features

Synchronized Feeding and cutting speed : Inverter controlled feeding matching main machine speed for easy operation without manual adjustment.
LCD touch panel : Easily operable human-computer interface to access parameter changes and production monitoring
Sealing pause : Program controlled pauses on lowest point to elongate required sealing time for thick film
Malfunction alarm / stop : Alarm & auto-stops for abnormal temperature / No material feed / Photocell tracking miss (3 times)

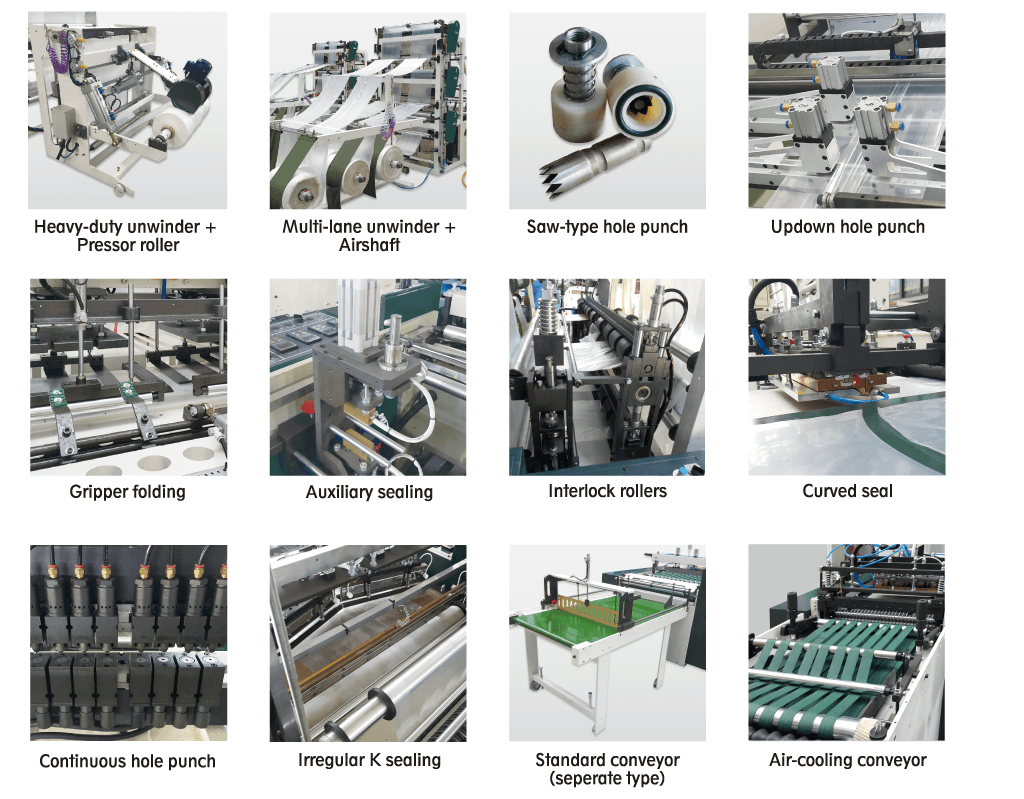

Optional Device

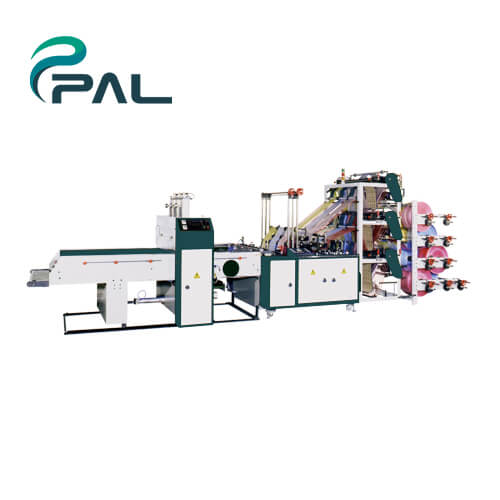

Machine Series：DLFA-V / TLFA-V
Machine Feature：
ㆍServo motor - Accuracy and high-speed @140 pcs/min
ㆍMulti-deck production - 2 or 3 sealing blade groups can double or triple to output of production. Stack type design shorten machine length and provide stronger structures & stability.
ㆍOptional gripper + punch - Gripping pin-blocked bag piles and punch out T-shirt bag production.
ㆍFlat bag production - For flat bag production without inline punch, economy collection table also available.
Available System：
ㆍSingle deck system -1 / 2 / 3 / 4 lines
ㆍDouble decks system - 2 / 4/ 6 / 8 lines
ㆍTriple decks system - 3 / 6 /9 / 12 lines
ㆍNon-inline punch systems
ㆍThick gauge LDPE system

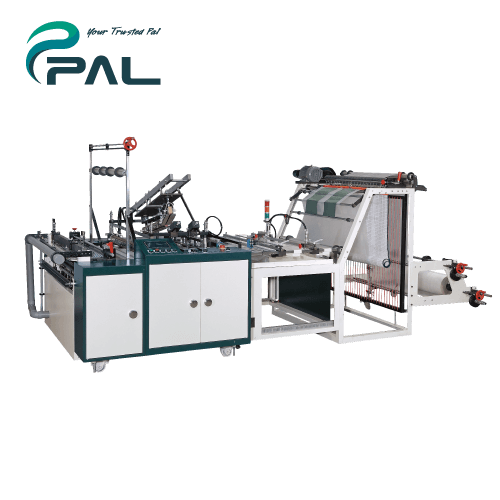

Machine Model：BK-V
Machine Feature：
ㆍ Servo motor - Accuracy and high-speed @110 pcs/min
ㆍ Irregular sealing mould - Up down type heat irregular mould cuts and seals in the shape of the mould. Standard & customized molds are available on demand.

Available System：
ㆍPlastic gloves system Standard / customized glove moulds
ㆍCream bag system Diagonal welding device
ㆍ Laundry hanger bag system -Shoulder slope welding mould +Waste remover.
Optional pneumatic periodic perforation device
ㆍOptional bag on roll system
ㆍApron bag / Apron bag on roll
ㆍCustomized irregular bag making solution

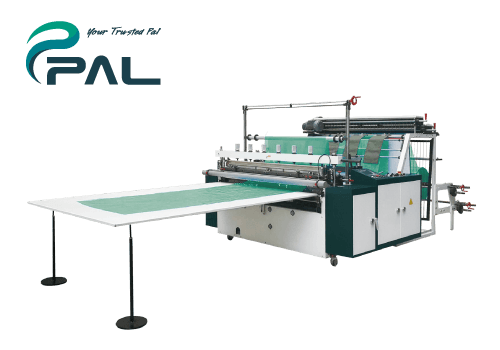

Machine Model：BFC-V+H2
Machine Feature：
ㆍServo motor - Accuracy and high-speed @110 pcs/min
ㆍTensionless sealing - Top and bottom heated sealing for strong heavy duty sealing for thick bags; tensionless sealing avoids sealing line pull elongation

Available System：
ㆍStandard tensionless sealing system
ㆍExtra large / Jumbo Tensionless sealing system (Width above 50")
ㆍHorizontal gripper folding system + Conveyor

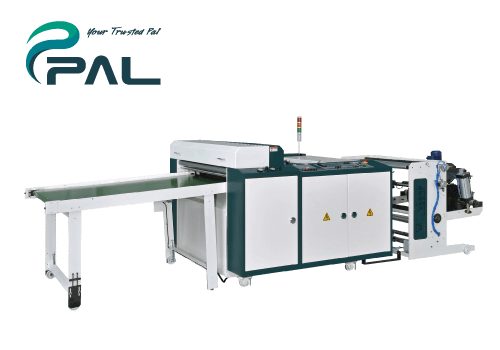

Machine Model：BFFC-V
Machine Feature：
ㆍServo motor - Accuracy and highspeed @90 pcs/min
ㆍTensionless sealing - Top and bottom heated sealing for strong heavy duty sealing for thick bags; Tensionless sealing avoids sealing line pull elongation
ㆍServo-controlled flying knife - Easy replace for cutter blade, servo control cutter can cut fast and easy for all thickness
ㆍLiftarm unwinder + Pressor roller - Easy film loading for operator; highspeed pressor roller assistive feeding of fast speed production
ㆍDancer roller - Maintaining tension and stablizes material feed

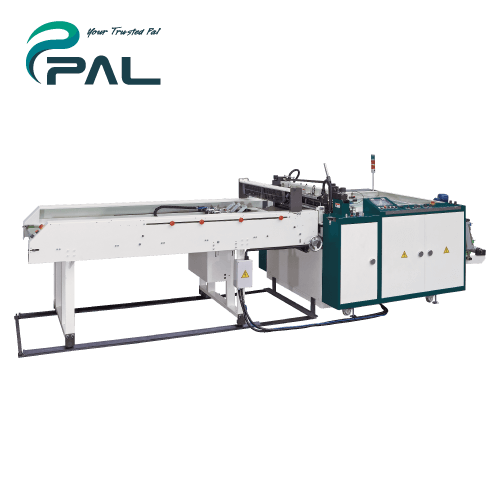

Machine Model：65/ 85/100/ 120BF-V
Machine Feature：
ㆍServo motor - Accuracy and highspeed @50~90 pcs/min
ㆍ Jumbo size sealing & cutting - Specially designed sealing blade and cutting blade material are stable and durable for large bag making over 1500mm width.
ㆍExtra long bags - Max cutting length can be customized for extra long bag over 3M
ㆍOptional servo or pneumatic flying knife system -For easy operation and quick blade change

Machine Model：BF-V-8+CP
Machine Feature：
ㆍServo motor - Accuracy and highspeed @40~80 pcs/min
ㆍContinuous hole punch - 6 / 12 / 18 Controls points are available.
ㆍEach control points can be programmed to make punching patterns
ㆍMultiline feeding - Feed in multiple film rolls

Machine Model：BF-V+SL10
Machine Feature：
ㆍServo motor - Accuracy and highspeed @60~90 pcs/min
ㆍAdjustable heat-slitting - For bags over 4 inches, adjustable heat-slitting system can be used for multiple lines production.

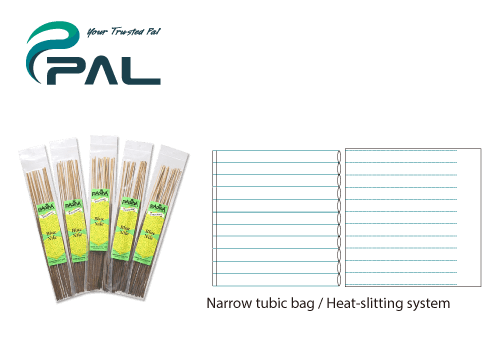

ㆍFixed type narrow heat-slitting - For bags width less than 4 inches, fixed type heat-slitting can be used. Each heat-slitting device has fixed width intervals. Width can be customized.

Machine Type：RBE-V
Machine Feature：
ㆍServo motor - Accuracy and highspeed @50~80 pcs/min

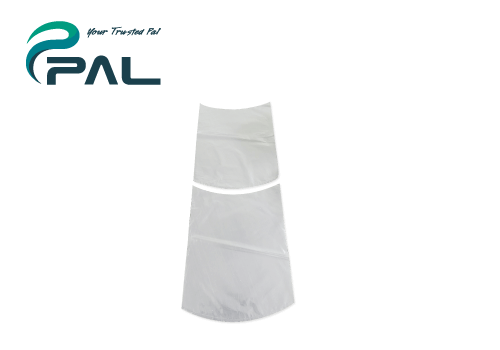

ㆍCurved cut & seal die - Heated curved die cutting and sealing at the same time

Model	Bag length (inch)	Bag width (inch)	Cutting speed (strokes/min)	Film thickness (mm)	Tolerance	Power	Machine dimension L x W x H (cm)
Bottomseal Flat Bag Making Machine
20B-V	3-45	3-18 x 1	60-140		±1	2.5	400 x 100 x 150
28B-V	3-45	3-26 x 1. 3-12 x 2	60-140	0.012-0.15	±1	3.4	400 x 110 x 150
32B-V	3-45	3-30 x 1. 3-14 x 2	60-140		±1	3.8	400 x 130 x 150
42B-V	3-60	3-40 x 1. 3-19 x 2	60-120		±2	4.2	400 x 140 x 170
50B-V	3-75	3-48 x 1. 3-23 x 2	60-120		±2	4.7	400 x 160 x 180
Tensionless Bottomseal Flat Bag Making Machine
20BF-V	3-60	3-18 x 1	30-140		±1	3.1	280 x 110 x 150
28BF-V	3-60	3-26 x 1. 3-12 x 2	30-140	0.012-0.3	±1	3.7	280 x 130 x 150
32BF-V	3-60	3-30 x 1. 3-14 x 2	30-140		±1	4.2	300 x 140 x 160
42BF-V	3-60	3-40 x 1. 3-19 x 2	30-120		±2	4.7	460 x 160 x 170
50BF-V	3-75	3-48 x 1. 3-23 x 2	30-120		±2	5.1	460 x 180 x 170
65BF-V	3-100	3-59 x 1. 3-39 x 2	20-90		±2	5.5	550 x 195 x 200
Tensionless Bottomseal Flat Bag Making Machine + Flying Knife System
32BFFC-V	6-60	4-30	Max. 100	0.012-0.3	±1	4.8	470 x 140 x 130
42BFFC-V	6-75	4-40	Max. 100		±1	5.3	470 x 180 x 130
56BFFC-V	6-100	4-54	Max. 100		±2	6.0	470 x 225 x 130
Irregular Bottomseal Bag Making Machine
28BK-V	3-80	3-26	10-120	0.012-0.15	±1	4.2	500 x 130 x 190
32BK-V	3-80	3-30	10-120		±1	4.5	500 x 140 x 190
42BK-V	3-80	3-40	10-120		±1	5.6	500 x 170 x 190
Double Deck Bottomseal Flat Bag Making Machine
32DL-4-V	3-45	3-30 x 2. 3-14 x 4	40-140		±1	4.2	400 x 150 x 170
42DL-4-V	3-60	3-40 x 2. 3-19 x 4	40-120	0.012-0.15	±2	4.8	400 x 170 x 170
32DL-6-V	3-45	3-30 x 2. 3-14 x 4. 3-9 x 6	40-140		±1	4.4	400 x 150 x 170
42DL-6-V	3-60	3-40 x 2. 3-19 x 4 . 3-12 x 6	40-120		±2	5.0	400 x 170 x 170
32DL-8-V	3-45	3-7 x 8. 3-14 x 4	40-140		±1	4.5	400 x 150 x 170
42DL-8-V	3-60	3-9 x 8. 3-19 x 4	40-120		±2	5.1	400 x 170 x 170
Triple Deck Bottomseal Flat Bag Making Machine
32TL-6-V	3-45	3-30 x 3. 3-14 x 6	40-140	0.012-0.15	±1	4.6	420 x 150 x 170
42TL-6-V	3-60	3-40 x 3. 3-19 x 6	40-120		±2	5.2	420 x 170 x 170
32TL-9-V	3-45	3-30 x 3. 3-14 x 6. 3-9 x 9	40-140		±1	4.8	420 x 150 x 170
42TL-9-V	3-60	3-40 x 3. 3-19 x 6. 3-11 x 9	40-120		±2	5.4	420 x 170 x 170
Double Deck Bottomseal Flat / T-shirt Bag Making Machine + Inline Die Punch
32DLFA-4-V	10-28	3-14 x 4	30-140		±1	6.5	640 x 170 x 220
42DLFA-4-V	10-28	3-19 x 4	30-120	0.012-0.15	±2	7.0	640 x 190 x 220
32DLFA-6-V	10-28	3-9 x 6	30-140		±1	7.0	640 x 170 x 220
42DLFA-6-V	10-28	3-12 x 6	30-120		±2	7.5	640 x 190 x 220
32DLFA-8-V	10-28	3-6 x 8	30-140		±1	7.0	640 x 170 x 220
42DLFA-8-V	10-28	3-9 x 8	30-120		±2	7.5	640 x 190 x 220
Triple Deck Bottomseal Flat / T-shirt Bag Making Machine + Inline Die Punch
32TLFA-6-V	10-28	3-14 x 4	30-140	0.012-0.15	±1	6.4	640 x 170 x 220
42TLFA-6-V	10-28	3-19 x 4	30-120		±2	7.0	640 x 190 x 220
32TLFA-9-V	10-28	3-9 x 6	30-140		±1	7.5	640 x 170 x 220
42TLFA-9-V	10-28	3-12 x 6	30-120		±2	8.3	640 x 190 x 220
