Three Side Sealing Bag Making Machine(YSW-EM-3)

Classification : Auxiliary Equipment for Air Bubble Film

Country: Taiwan

Phone: 886-4-24914567

Fax: 886-4-24913333

Contact Person: Mr. Jason Chen

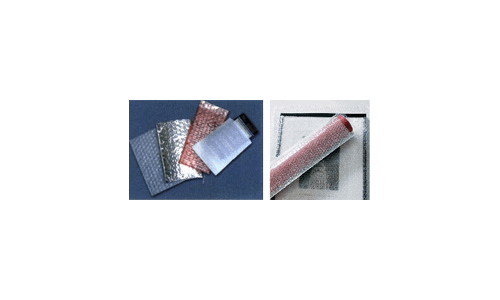

YSW-EM machine especially designed for packaging materials such as PE air bubble film bags and EPE foam bags.

• Servo motor control minimizes length tolerance ensure high efficiency and accuracy.

• Using Plugging type IC circuit for easy replacement.

• Main machine is controlled and driven by AC motor with inverter.

• Out feeding conveyor belt is driven by DC motor.

• The machine will stop automatically when the bags become jammed or overlapped and temperature is too low.

• We have manual or automatic folding devices to make side or bottom sealing bags.

• Driving system is servo motor with microcomputer control unit.

Model	YSW-800EM-3	YSW-1000EM-3	YSW-1250EM-3	YSW-1500EM-3	YSW-2000EM-3
Max.Cutting Width	750mm	950mm	1200mm	1450mm	1950mm
Max.Cutting Length	7cm~500cm	7cm~500cm	9cm~500cm	9cm~500cm	12cm~500cm
Length Tolerance	±2mm
Production speed	20~150pcs/min
OPTION EQUIPMENTS	UNWINDER WITH TRIANGLE STAND, TAKE-OFF DEVICE, PUNCH HOLE DEVICE, AUTO CONVEYOR.
