AH-6S, the six shaft type automatic rewinding machine.

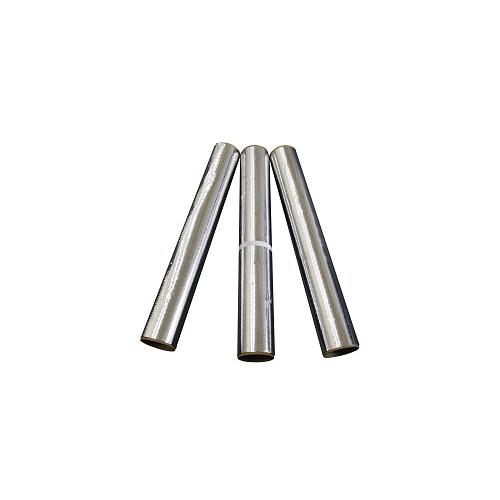

It's designed for rewind aluminum, PE and PVC cling film.
The feeding press roller is carried with precise pressure manometer and regulating valve.
Movements include automatic feeding material, automatic cutting and unloading the finished product.
This model has automatic length correcting function. It can correct the margin of product length anytime.
There are 2 type of mother roll width for AH-6S: from 250-450 mm, and from 300-500 mm.
The product length is from 3-250 meters, the finished paper core’s I.D. can be appointed within 25-38 mm.
Users can choose to equip label sticker device and hot melt glue device with machine.
They will make product more perfect.
Stably fix the material on the paper core, neatly produce product with smooth edge.
Machine brings you a huge benefit in the way you need.
Welcome to consult machine with us. We will at your service.
| Model | AH-6S(250-450) | AH-6S(300-500) |
| Raw Material | Aluminum foil / PE.PVC food wrapping film | |
| Mother roll outer diameter | 700 mm (Max.) | |
| Mother roll inner core diameter | 3” (76 mm) | |
| Mother roll available width | 250 - 450 mm | 300 - 500 mm |
| Material thickness | 9 - 20 micron | |
| Length of the finished products | 3 - 250 Meter | |
| Finished roll outer diameter | 80 mm(Max.) | |
| Finished paper roll inner core diameter | 25 - 38 mm | |
| Finished paper roll length | 255 - 470 mm | 305 - 520 mm |
| Speed | 500 M/min (Max.) | |
| Installed power | 7 KW (no glue) / 11 KW (glue) | |
| Compressed air | 0.5 - 0.8 Mpa | |
| Power supply | 220V, 50Hz, 3ph | |
| Dimensions L x W x H | 2450 x 2100 x 2000 mm | |
| Net weight | 2500 kg | |
