PRM-TAIWAN
Classification : Bottom seal series
Country: Taiwan
Phone: 886-5-2217005
Fax: 886-5-2211929
Contact Person: Sammuel Chiu
Inquiry Now

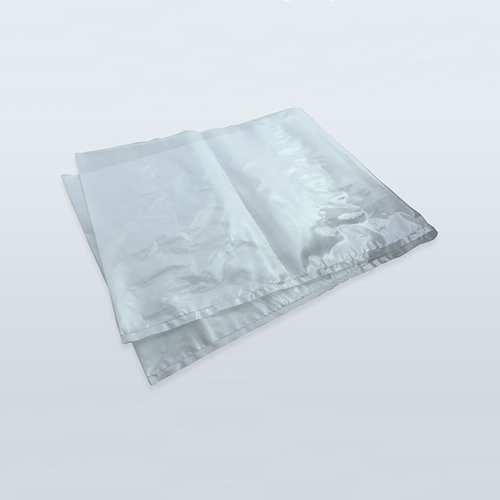

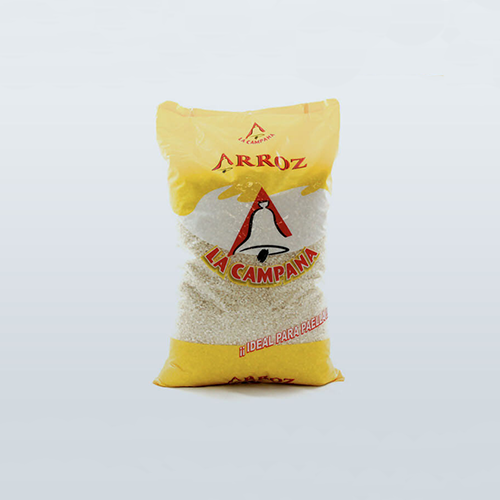

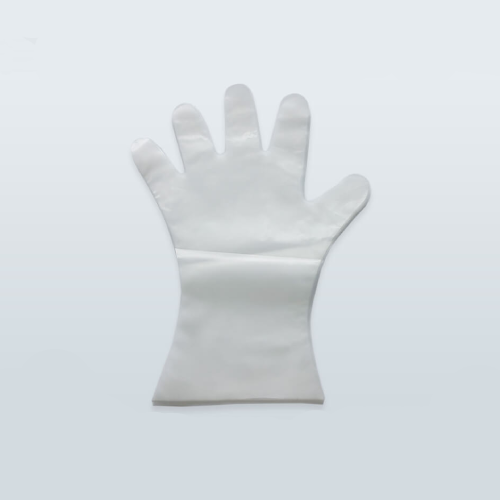

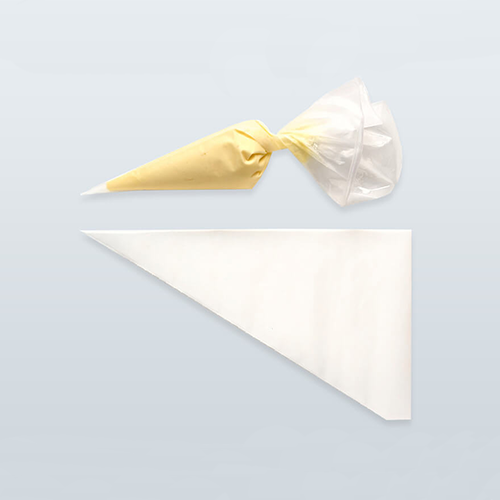

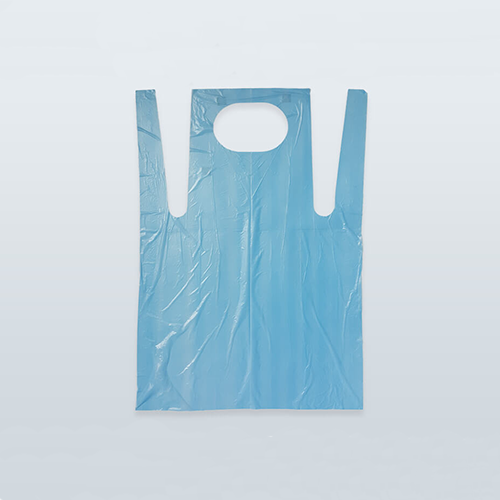

  • Suitable for manufacturing disposable plastic gloves, disposable plastic aprons, cream bag, thick gauge flat bag, granule bags, rice bag, etc.
  • Disposable gloves are used in a great variety of material, HDPE/LDPE/PP/PA/PLA, etc for barrier, protection and hygiene.
  • Cold-cut system - For thin film material. Machine uses upper heating knife and silicon roller base for sealing. Cutting knife before bag outfeeding.
  • Up-type seal & cut mold - Up-down mold coordinated with machine out-feed. Heated mold seal & cut irregular shapes and collected by table or rewinder.
  • Synchronized Feeding and cutting speed : Inverter controlled feeding matching main machine speed for easy operation without manual adjustment.
  • LCD touch panel : Easily operable human-computer interface to access parameter changes and production monitoring
  • Socket type IC circuit control : Automated control system can be easily replaced by socket plugin.
  • Sealing pause : Program controlled pauses on lowest point to elongate required sealing time for thick film
  • Malfunction alarm / stop : Alarm & auto-stops for abnormal temperature / No material feed / Photocell tracking miss (3 times)
28BK-V 32BK-V 42BK-V
Bag Width:3"-26"x1
Bag Length:3"-60"
Film Thickness:0.012mm-0.1mm
Capacity (strokes/min):30-120
Bag Width:3"-30"x1, 3"-14"x2
Bag Length:3"-75"
Film Thickness:0.012mm-0.1mm
Capacity (strokes/min):30-120
Bag Width:3"-40"x1, 3"-19"x2
Bag Length:3"-75"
Film Thickness:0.012mm-0.1mm
Capacity (strokes/min):30-120
