Heat-Slitting High-Speed T-shirt Bag Making Machine PFA-V+SLG

Classification : T-shirt bag series

Country: Taiwan

Phone: 886-5-2217005

Fax: 886-5-2211929

Contact Person: Sammuel Chiu

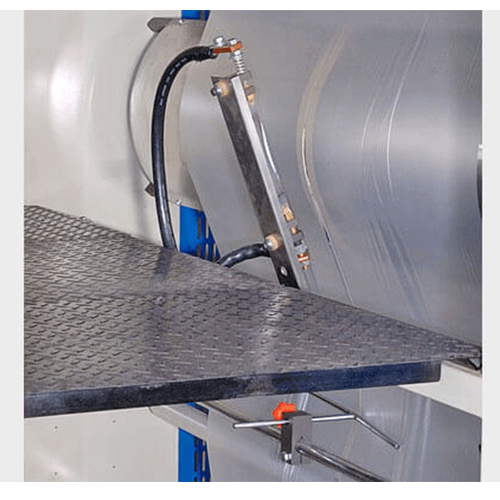

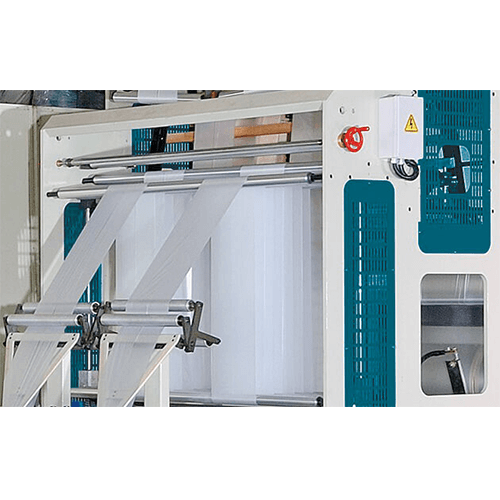

Heat slitting system + Post-gusset - Using jumbo film roll and heat-slitting into multiple lines. Saving labour and cost by extruding film 1 time and printing 1 time.
High speed hot-cut system - For printed T-shirt bags. Photocell & servo registers accurate print position. High speed hot-cut system available in 200/250/300rpm systems.
Fully automatic gripper & pneumatic punch - When counts reached, inline gripper collect and pneumatic punch cut out waste area and removed by conveyor. Non-stop production

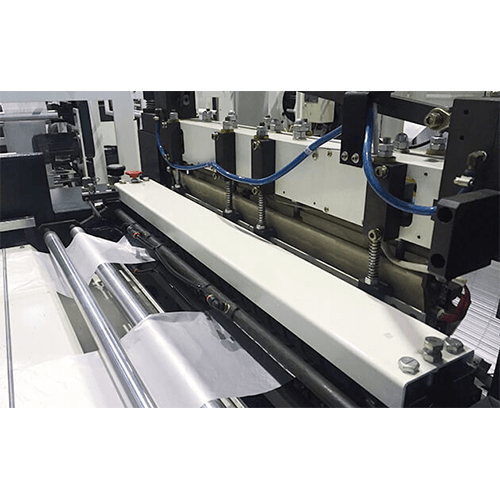

Tensionless high speed hot-cut system : Upper sealing blade & bottom heating wire makes strong and high speed sealing. Tensionless sealing avoids sealing line pull& elongation for highspeed production. Seperated upper and bottom temperature control for easy micro-adjustment.

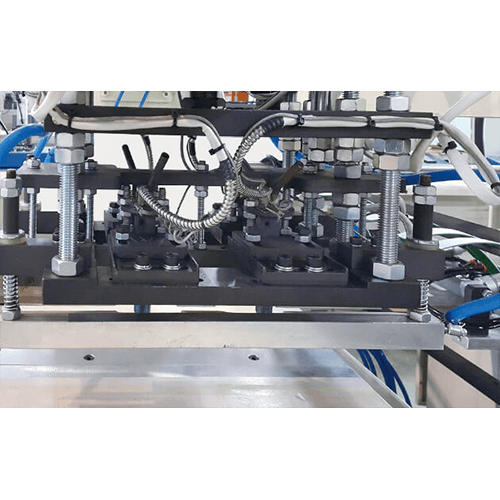

Gripper + pneumatic punch : When counts reached, inline gripper collect and pneumatic punch cut out waste area and removed by conveyor.

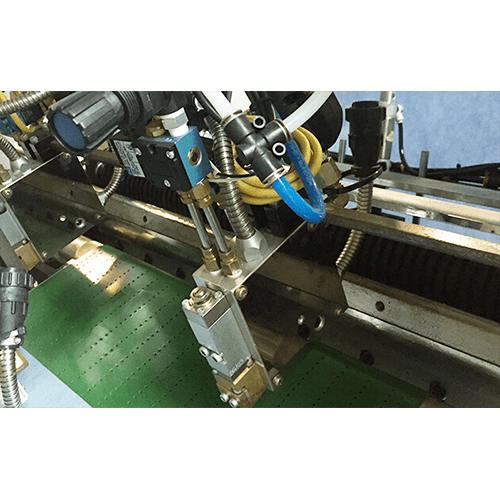

Rocking pin block : Blocking pin base rock back and forth to avoid sealing line sticking to previous bags.
Synchronized feeding and cutting speed : Inverter controlled feeding matching main machine speed for easy operation without manual adjustment.

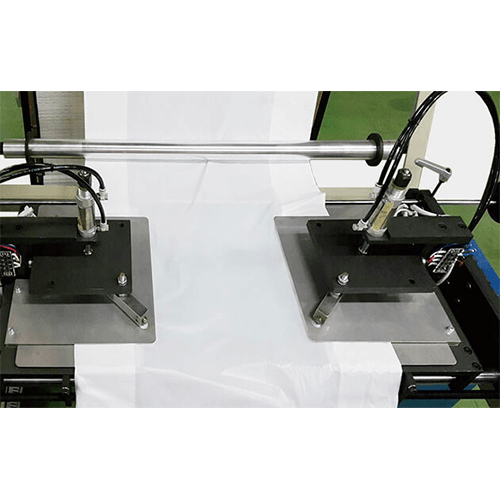

German "Sick" photocell registration : Reliable and accurate print registration and positioning

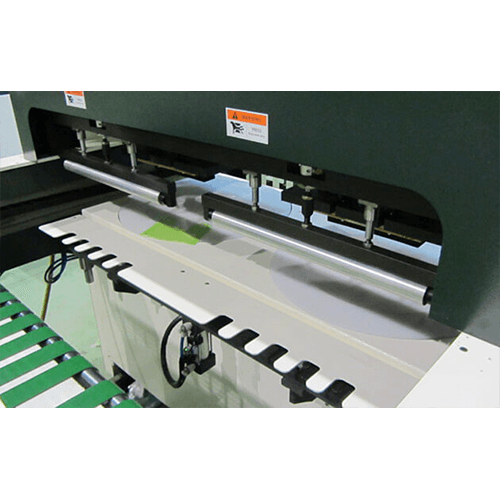

Auxiliary air-blown outfeed : Air blown assists material flow of outfeeding
LCD touch panel : Easily operable human-computer interface to access parameter changes and production monitoring
Socket type IC circuit control : Automated control system can be easily replaced by socket plugin.
Malfunction alarm / stop : Alarm & auto-stops for abnormal temperature / No material feed / Photocell tracking miss (3 times)

32PFA-V+SLG2	42PFA-V+SLG2	44PFA-V+SLG3	52PFA-V+SLG3
Bag Width:6"-14"x2 Bag Length:10"-26" Film Thickness:0.012mm-0.025mm Capacity (strokes/min):200/250/300	Bag Width:6"-19"x2 Bag Length:10"-26" Film Thickness:0.012mm-0.025mm Capacity (strokes/min):200/250/300	Bag Width:6"-13"x3 Bag Length:10"-26" Film Thickness:0.012mm-0.025mm Capacity (strokes/min):200/250/300	Bag Width:6"-15"x3 Bag Length:10"-26" Film Thickness:0.012mm-0.025mm Capacity (strokes/min):200/250/300
