FILM/BAGS WASTE PLASTIC RECYCLING MACHINE : KCR-150

Classification : Plastic Recycling Machinery

KANG CHYAU INDUSTRY CO., LTD.

Country: Taiwan

Phone: 886-2-22856880

Fax: 886-2-22856883

Contact Person: Gina Kang

E-catalog Video Inquiry Now

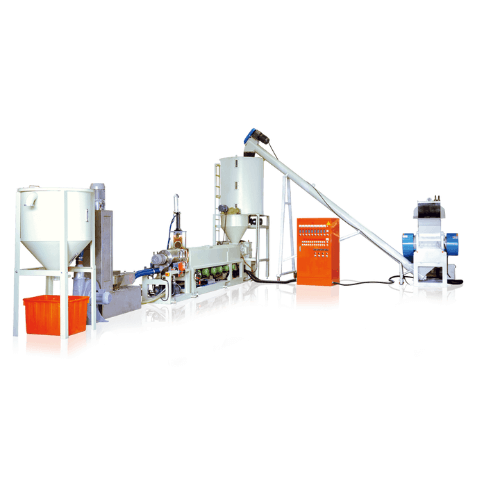

The KCR-150 is a film/bag waste plastic recycling machine for HDPE, LDPE, and LLDPE film or bags, crushing and reprocessing the waste into pellets at an output of 300-400 kgs / hr.

Waste is crushed by a 50 HP crusher, moved via a 2 HP screw conveyor into a 5" feed size, then collected in a 1400 L waste tank before entering a single-degasification Ø 150 mm screw (L/D ratio 30:1) heated at 141 kw across 8 zones and driven by an AC 125 hp inverter motor. The melt is extruded through a circular-shape die with a hydraulic-cylinder screen changer, cooled by a water-cooling system with a 2 HP pump, dehydrated by a 5 HP motor, and pelletized by a 2 pcs (spring) pelletizer.

MODEL	KCR-150
SUITABLE MATERIAL	HDPE/LDPE/LLDPE
OUTPUT	300-400 kgs / hr
CRUSHER & SCREW CONVER SYSTEM
CRUSHER	50 HP
SCREW CONVER	2 HP
INTO SIZE	5"
EXTRUDER
WASTE COLLECTING TANK	1400 L
COLLECTING TANK MOTOR	2 HP + Inverter
SPIRAL TYPE FEEDING DEVICE FOR HOPE	2 HP + Inverter
GEAR BOX	Direct Connect Type
SCREW DIAMETER	Ø 150 mm Single Dega Sification
SCREW L/D RATIO	30:1
HEATING CAPACITY	141 kw
AUTO THERMO CONTROL	8 zone
DRIVING MOTOR	AC 125 hp + Inverter
DIE FACE CUTTING & SCREEN CHANGER
DIE TYPE	Circular Shape Extrusion Die
HEATER	19.2 kw
AUTO THERMO CONTROL	2 zone
PELLETIZING	2 PCS(SPRING)
PELLETIZING MOTOR	1 HP + Inverter
SCREEN CHANGER	Hydraulic Cylinder
COOLING SYSTEM
TYPE	Water Cooling
COOLING WATER DRUM	1 Set
WATER PUMP	2 HP
COOLING WATER TANK	1 Set
DEHYDRATOR & CENTRIFUGAL SEPARATOR SYSTEM
DEHYDRATOR	1 Set
DEHYDRATOR MOTOR	5 HP
COLLECTING SYSTEM
AIR BLOWER	5 HP
COLLECTING TANK	600 L
PELLET CUTTING MACHINE
MOTOR	-
CUTTER MOTOR	-
