Classification : ENS Series
Country: Taiwan
Phone: 886-4-22815673
Fax: 886-4-22817592
Contact Person: Mr. Liu

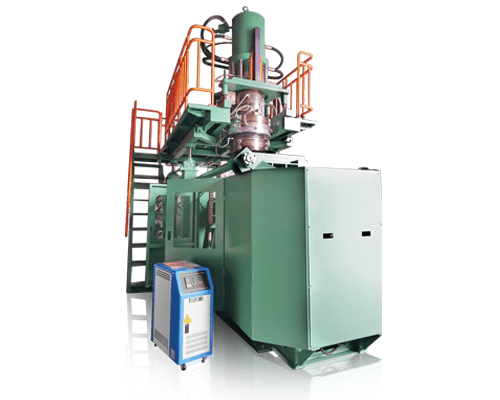

ACCUMULATOR TYPE 蓄存式
Model 型號 |
Screw diameter 螺桿直徑/ Extrusion capacity 押出量 |
Accumulator capacity 蓄存重量(kg) | Clamping force 鎖模力(ton) | Clamping Stroke 開關模距(mm) | Mold domension 容模尺寸(mm) |
---|---|---|---|---|---|
ENS-800 | 80mm/120kg | 2, 3 | 28 | 1000 - 400 | W800 x H900 |
ENS-1000 | 90mm/180kg | 4, 6 | 35 | 1100 - 320 | W850 x H1100 |
ENS-1200 | 100mm/250kg | 8, 10 | 60 | 1300 - 420 | W900 x H1300 |
ENS-1400 | 90mm/180kg, 100mm/250kg | 12, 14 | 100 | 1600 - 600 | W1200 x H1700 |
