Aluminum Foil and Cling Film Rewinding Solutions: From Flexible Production to Automated Packaging

Quick Answer: Which Rewinding Configuration Fits Your Production?

Automatic rewinders integrate core loading, rewinding, cutting, and unloading to reduce manual work. Semi-automatic rewinders retain manual loading and unloading while automating selected production steps, making them suitable for flexible daily operation. The AH-CS finished roll end processing system and TPG50 shrink film packaging machine can extend automation into labeling, sealing, wrapping, and packaging.

Producing aluminum foil and cling film rolls requires reliable control throughout rewinding, cutting, finishing, and packaging. Consistent tension, accurate roll lengths, and stable material handling help manufacturers maintain product quality while managing production efficiency.

This equipment range includes fully automatic and semi-automatic rewinders, a finished roll end processing system, and an automatic shrink film packaging machine. Designed for different materials, product specifications, and operating requirements, these solutions allow manufacturers to select equipment according to their production scale, available space, and automation needs.

Automatic Rewinders for Integrated Production

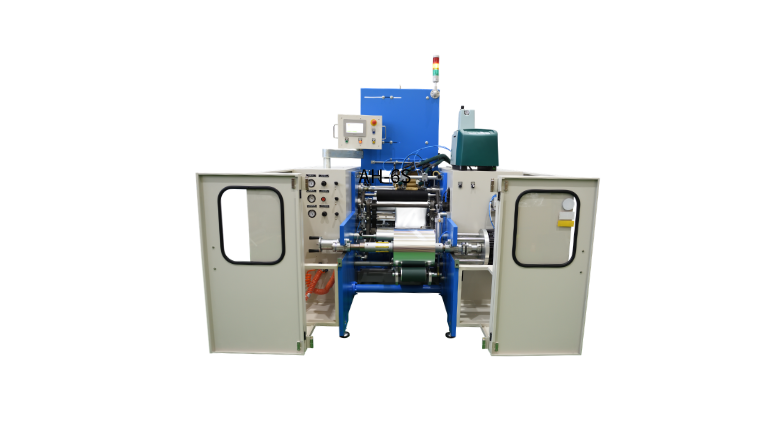

AH-6SP: Upgraded Six-Shaft Automatic Rewinder

The AH-6SP produces household rolls of aluminum foil, PE/PVC cling film, and baking paper. Its six-shaft configuration combines automatic material feeding, cutting, and unloading to reduce manual work and support consistent production.

The upgraded cutting system uses an optimized flat blade design for aluminum foil, improving cutting efficiency and finished roll output. Two additional cylinders enhance paper core loading, ensuring accurate transfer to the rewinding shafts and secure chuck clamping.

An additional motor independently controls the active rewinding shaft and the shaft holding a completed roll before unloading. This arrangement improves transfer stability when handling larger finished rolls.

Precision gauges and regulators on the feeding pressure roller help maintain uniform material tension. An automatic length correction system adjusts roll length during operation to reduce deviation and maintain accurate specifications.

Available configurations accommodate mother roll widths of 250–450 mm or 300–500 mm and finished paper core inner diameters of 25–38 mm. Optional labeling and hot melt glue devices support additional finishing requirements. The machine can also connect with a finished roll end processing conveyor system to streamline downstream operations.

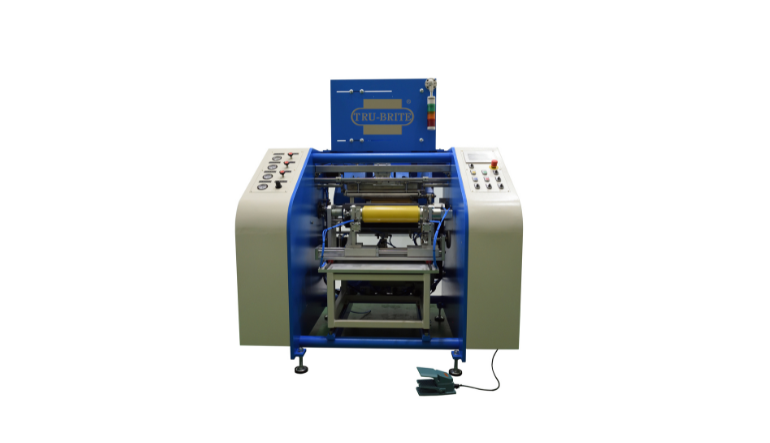

AH-FW: Four-Shaft Automatic Cling Film Rewinder

The AH-FW is designed specifically for producing PE and PVC cling film rolls. Automatic core loading, rewinding, cutting, and unloading simplify production and reduce operator workload.

Two configurations provide flexibility for different roll widths. The AH-FW 20-30 handles mother rolls measuring 200–300 mm wide and finished paper cores measuring 210–310 mm long. The AH-FW 20-50 accommodates mother roll widths of 200–500 mm and core lengths of 210–510 mm.

Operators can switch between manual and automatic modes and adjust pressure roller, brake, feeding, and small roller functions through the control panel. Real-time machine status information supports monitoring and timely adjustments.

A brush tail finishing system provides clean roll ends and curls the cutting edge; with the curl the film will be easier to tear. With a maximum rewinding speed of 500 m/min, the AH-FW combines automatic operation with flexible product sizing.

Finished Roll Processing and Packaging

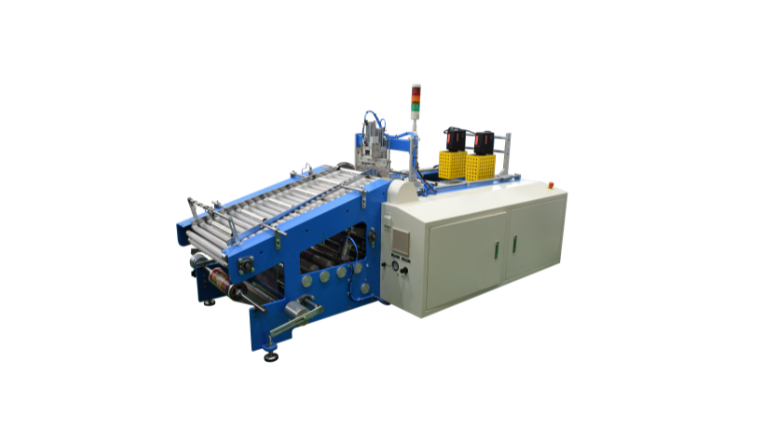

AH-CS: Finished Roll End Processing System

The AH-CS is an optional finishing module compatible with the rewinder range. It handles labeling, sealing, and wrapping after rewinding, helping manufacturers reduce manual finishing work and improve production consistency.

Its independent conveyor system allows standalone operation or integration into an existing production line. Manufacturers can select label sticker or label paper modes according to their packaging requirements.

Label sticker mode supports long and short labels, while automatic edge detection helps position labels accurately. Label paper mode applies printed paper containing logos or product information and secures the roll end.

Stepper motor control provides precise positioning and stable speed management. The system can also be customized according to factory layout and production capacity requirements, offering flexibility when upgrading downstream processes.

TPG50: Automatic Shrink Film Packaging Machine

The TPG50 packages roll-type products and connects with rewinders for continuous automatic packaging. Its three-stage conveyor system separates feeding, film processing, and discharge to maintain a stable workflow.

Timed feeding and sensor-based feeding options allow operators to select the arrangement best suited to their production requirements. The machine supports BOPP, PVC, PE, and other shrink films, with adjustable wrapping lengths.

For printed packaging films, MARK point detection provides accurate positioning and alignment. An optional label applicator inserts label paper before shrink wrapping to create a coordinated branded package.

A static eliminator and hot air shrink system help produce tight, clean packaging. With a maximum mechanical output of 20 rolls per minute, the TPG50 supports automated packaging while reducing manual handling.

Semi-Automatic Rewinders for Flexible Operations

SR-2S: Two-Shaft Aluminum Foil and Cling Film Rewinder

The SR-2S features a heavy-duty structure for rewinding aluminum foil and PE/PVC cling film. It accommodates mother roll widths of 200–500 mm and finished core inner diameters of 25–76 mm.

A brake control system monitors output and roll weight to maintain stable tension. Preset deceleration points automatically reduce speed during selected stages, improving consistency.

Automatic cutting and post-cut film feeding simplify attachment to the next core. These functions support smoother operation while retaining the flexibility of semi-automatic production.

SR-3S: Three-Shaft Aluminum Foil and Cling Film Rewinder

The SR-3S handles aluminum foil, PE/PVC cling film, and stretch film. Its sturdy construction supports mother roll widths of 200–500 mm and finished core inner diameters of 25–75 mm.

Brake adjustment and pressure detection maintain consistent tension. Rewinding, cutting, roll release, and shaft changes operate automatically, while operators manually load and unload materials.

After cutting, the machine feeds a short film segment for easier core attachment. An optional glue applicator further supports material adhesion and efficient rewinding.

SRB-A-1S: Single-Shaft Aluminum Foil and Cling Film Rewinder

The SRB-A-1S combines straightforward operation with a stable structure, making it suitable for everyday production and operators new to rewinding equipment.

Designed for aluminum foil and cling film, it supports mother roll widths of 200–500 mm, finished roll lengths up to 500 meters, and a maximum rewinding speed of 500 m/min.

Electronic speed control lets operators adjust production speed according to material and workflow requirements. Its user-friendly design also supports operations requiring frequent material changes.

SRB-A-2S: Multifunction Two-Shaft Rewinder

The SRB-A-2S processes aluminum foil and PE/PVC cling film. It supports mother roll widths of 200–500 mm and finished core inner diameters of 25–50 mm.

An intelligent brake system monitors braking force and roll weight to maintain stable tension. Preset deceleration points and motor-driven shaft control improve operating consistency.

Automatic cutting, post-cut feeding, shaft pressing, and shaft changing streamline the production sequence. Once started, the machine completes the rewinding process automatically, with manual loading and unloading required.

SRS-1S: Single-Shaft Cling Film Rewinder

The SRS-1S is a compact semi-automatic rewinder for PE and PVC cling film. Its space-saving design and intuitive interface suit smaller production areas, short-run batches, and frequent setup changes.

The machine accommodates mother roll widths of 200–500 mm. Operators can set the automatic shaft release delay to match their handling requirements, improving convenience and control during daily operation.

SRS-2S: Two-Shaft Cling Film Rewinder

The SRS-2S provides flexible PE/PVC cling film rewinding through adjustable speed control and PLC-based operation.

Automatic shaft pressing and optional automatic start and shaft exchange functions simplify production. Four independent foot pedals control mother roll clamping, paper core gripping, shaft pressing, and starting.

Supporting mother roll widths of 200–500 mm, the machine combines accessible controls with stable performance.

Selecting the Right Production Configuration

Manufacturers can choose automatic rewinders for integrated production or semi-automatic models for flexible daily operations. Adding the AH-CS finishing system and TPG50 packaging machine extends automation beyond rewinding, supporting a coordinated workflow from material conversion to packaged rolls.

Frequently Asked Questions

What materials can these rewinders process?

Depending on the model, the range processes aluminum foil, PE/PVC cling film, baking paper, and stretch film. The supported materials for each model are listed in the corresponding section above.

What is the difference between automatic and semi-automatic rewinders?

The automatic models combine core loading, rewinding, cutting, and unloading. The semi-automatic models automate selected steps but retain manual loading and unloading, providing flexibility for daily production and material changes.

Can finishing and packaging be connected to the rewinding line?

Yes. The AH-CS can operate independently or integrate with an existing production line for labeling, sealing, and wrapping. The TPG50 can connect with rewinders for continuous shrink film packaging.

Which models are designed specifically for cling film?

The AH-FW is an automatic PE/PVC cling film rewinder. The SRS-1S and SRS-2S are compact semi-automatic options for PE/PVC cling film.
