TR Rotating Clamps

Proof Pressure

27.0MPa(275kgf/cm2)

Max Working Pressure

18.1MPa(180kgf/cm2)

Working Pneumatic Range

0.4~0.7(4~7kgf/cm2)

Ambient Temperature Range

-5~60°C

Hydraulic Fluid

ISO VG32~VG56

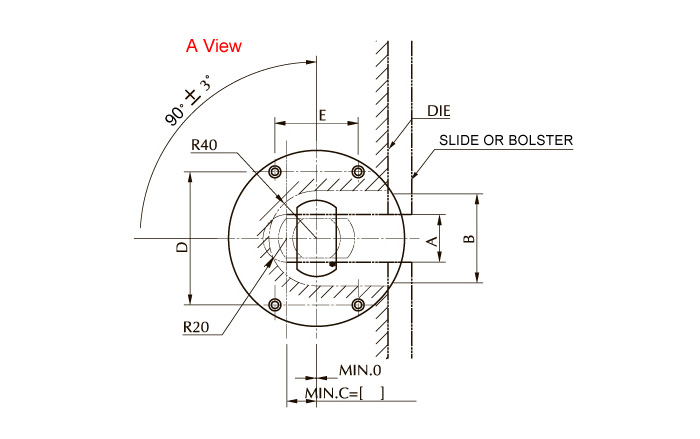

Model

Clamping force

(at 185kgf/cm2)

Requited Qrantity(cc.)

A±1

MIN.B

MIN.C

TR-6

6

32.5

40

75

25

TR-10

10

52.5

50

95

30

TR-16

16

84.0

60

110

37

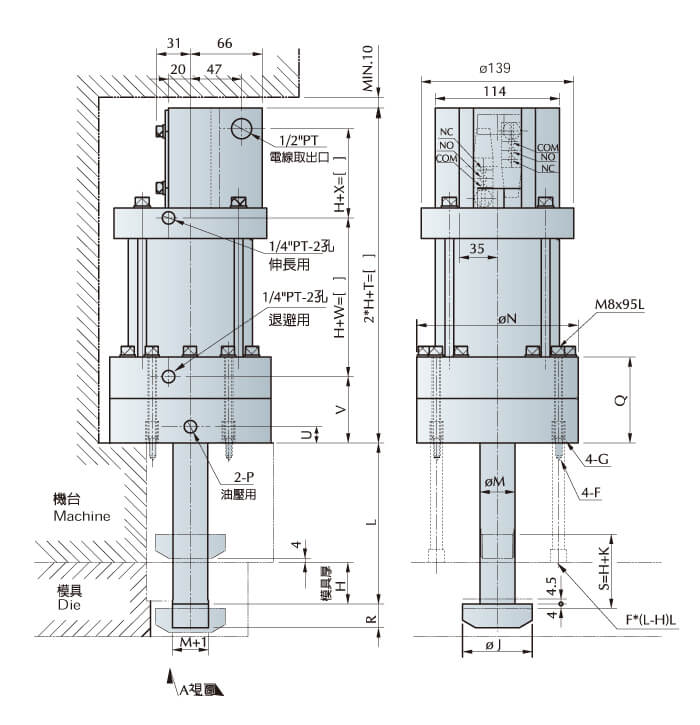

Model

D

E

F

G

J

K

M

N

PT

Q

R

TR-6

112

70

M8*16 Deep

M12*20 Deep

64

30

32

148

1/4

79

22

TR-10

116

70

M10*25 Deep

M14*30 Deep

84

35

40

158

3/8

89

27

TR-16

120

76

M10*25 Deep

M14*35 Deep

99

40

50

168

3/8

94

32

Model

T

U

V

W

X

kg Mass

TR-6

232

15

61

108

44

20

TR-10

252

16

74

110

49

25

TR-16

267

16

79

115

54

27
