Air Bubble / EPE Coreless Rewinding Machine

Classification : Bubble Envelope Solution

Applications: Stationery Air Bubble Envelope Poly PE Bubbler Mailers Metalized Bubble Mailers Air Bubble Envelopes

MING JILEE ENTERPRISE CO., LTD.

Country: Taiwan

Phone: 886-6-5783420

Fax: 886-6-5783347

Contact Person: Chris Chang

Inquiry Now

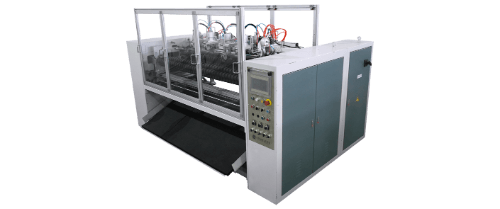

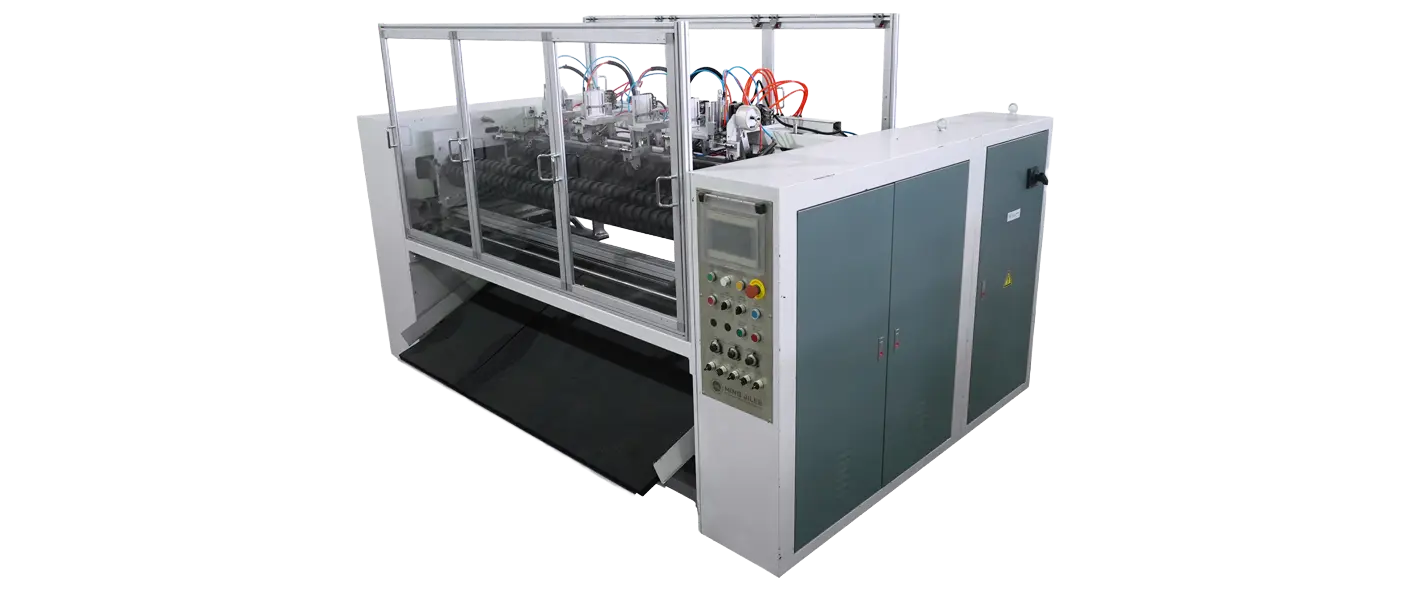

The MGR-MINIROLL-1600 is Ming Jilee's coreless rewinding machine, purpose-built for rewinding air bubble film (bubble Ø 10 mm) and EPE foam (thickness 1 - 5 mm). It uses an integrated heat needle sealing system in place of traditional tape sealing, plus a cantilever shaft design for quick loading of the mother roll.

A proximity switch control automatically stops the machine in case of malfunction, and a fully motorized nip roll cylinder with a built-in pneumatic cutting mechanism keeps material feeding stable and cutting precise. An optional tape dispenser is available for sealing finished rolls. Width of production reaches Max. 1,600 mm, with rewinding dia of 80 - 300 mm and roll length of 3 - 30 meter.

Model	MGR-MINIROLL-1600
Feed Material	Air bubble film bubble: Ø10 mm PE foam: 1 - 5 mm
Width of Production	Max. 1,600 mm
Length of the Produce Rolls (min/max)	3 - 30 meter
Rewinding dia (min/max)	80 - 300 mm (with air bubble film 2 layers Ø 10 mm)
Production Speed	5 m roll: 140 - 180 rolls/hour 10 m roll: 120 - 180 rolls/hour
Machine Dimension	3,365 (L) × 2,717 (W) × 1,812 (H)
Machine Weight	1,600 kg
Power Comsumption	10 kw
