DB50 Die Lifter (Ball Type)

DB50 Die Lifter (Ball Type)
Classification : Additional Products
FORWELL PRECISION MACHINERY CO., LTD.
FORWELL PRECISION MACHINERY CO., LTD.
Country: Taiwan
Phone: 886-4-8345196
Fax: 886-4-8345197
Contact Person: James Hsiao
Inquiry Now

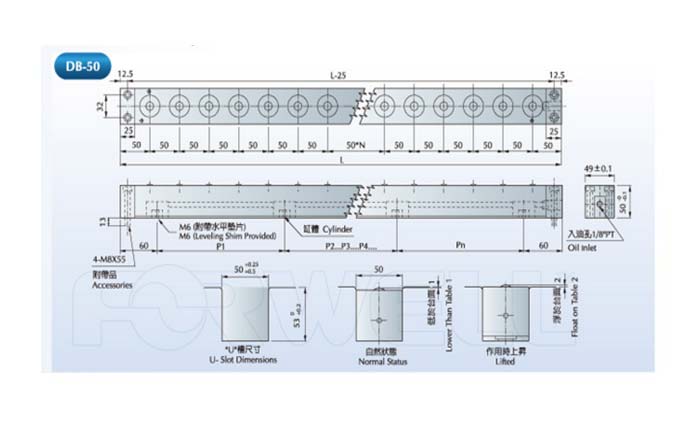

DB-50

Model

Overall

Ball Q'ty

Lift Cylinder

Lift Cylinder Pitch (mm)

Pcs

P1

P2

P3

P4

P5

P6

P7

DB-50-400

400

7

2

280













DB-50-500

500

9

3

90

290











DB-50-600

600

11

4

90

330

60









DB-50-700

700

13

4

140

340

100









DB-50-800

800

15

4

170

390

120









DB-50-900

900

17

4

210

400

170









DB-50-1000

1000

19

5

125

125

410

220







DB-50-1100

1100

21

5

150

150

400

280







DB-50-1200

1200

23

5

150

150

400

380







DB-50-1300

1300

25

6

150

150

200

400

280





DB-50-1400

1400

27

6

150

150

200

400

380





DB-50-1500

1500

29

7

150

350

200

300

300

280



DB-50-1600

1600

31

7

100

150

250

400

300

280



DB-50-1700

1700

33

8

100

100

150

250

300

300

380

DB-50-1800

1800

35

8

100

100

150

250

300

300

480

For purchases please attach a bolster plate diagram for correct sizing of the waste material hole at the bottom.
