Classification : Vertical Injection Molding Machine
Country: Taiwan
Phone: 886-2-28471194
Fax: 886-2-28471491
Contact Person: Jonathan Ke
● Patented interchangeable 3-in-1 modular slide table design.
● Patented none-side-force injection unit design.
● Patented active bypass auxiliary plasticization system design.
● 2-platen 4-cylinder direct clamping system.
● Patented central-radial platen durable for 30 years.
● Dual protection of safety door and safety light curtains.
● Intelligent program controller makes injection easier.
● The lowest table height injection molding machine.
● Precise energy-saving hydraulic system.

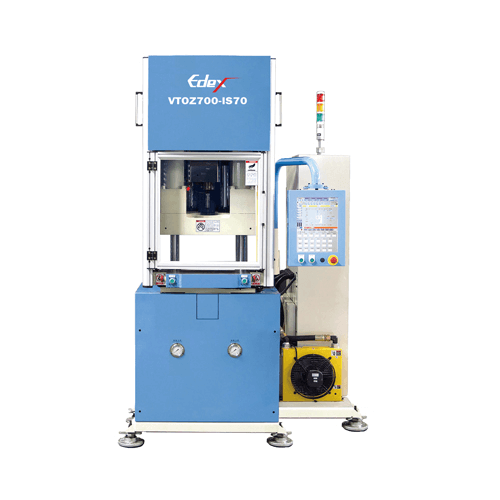

| Model | VTOZ700-IS70 | |||
| Injection system | Screw diameter | mm | 18 | 22 |
| Injection volume | cm3 | 25 | 38 | |
| Injection pressure | kgf/cm2 | 2755 | 1844 | |
| Injection speed | mm/s | 324 | ||
| Screw speed | RPM | 350 | ||
| Clamping system | Non-Slide Table | Single Slide Table | Double Slide Table | ||
| Max. clamping force | KN/Tonf | 700/71.4 | |||
| Distance between tie-bars | mm | 460/460 | |||
| Platen dimension | mm | 700/700 | |||
| Max. daylight | mm | 550 | 490 | 490 | |
| Minimum mold thickness | mm | 210 | 150 | 150 | |
| Slide table stroke | mm | 485 | 630 | ||
| Slide table dimension | mm | 450x630 | 450x1260 | ||
| Ejector stroke | Tonf/mm | 3.3/100 | |||
| Heater zone | set | N2+H3 | |||
| Eater capacity | KW | 3.5 | |||
| Heater capacity | KW | 10 | |||
| Dimension | m (LxWxH) | 1.7x1.47x2.91 | 1.97x1.47x2.91 | 1.63x1.98x2.91 | |
| Weight | Ton | 2.59 | 2.75 | 2.92 | |
