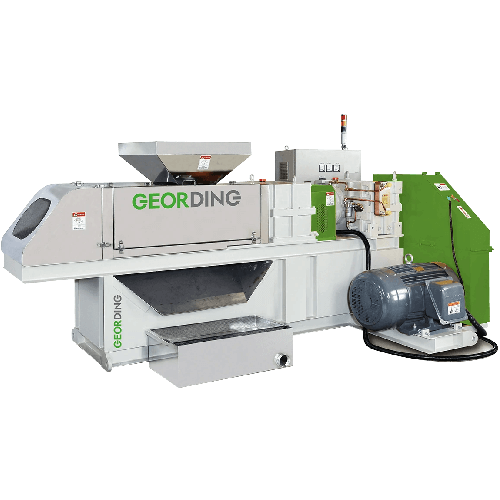

Twin Screw Squeezing Machine (RDF-5)

Twin Screw Squeezing Machine (RDF-5)
Classification : RDF5(Refuse Derived Fuel)
GEOR-DING MACHINERY CO., LTD.
GEOR-DING MACHINERY CO., LTD.
Country: Taiwan
Phone: 886-4-26821888
Fax: 886-4-26819777
Contact Person: Jessica Liu
Blog Inquiry Now

With a special designed twin screw, it is capable to squeeze and form multiple types of material.

  • Output Capacity: 500 ~ 1000 kg/hr (different material different output capacity).
  • Can be put into pelletizer for granulating directly.
  • Increase the capacity 60% more.
  • 3% moisture left after drying (used Japan KETT moisture test machine).
  • RDF-5 is easy to store and saves space.

Screw Dia. Motor Capacity Water Content
Ø200×2pcs 100HP 400~500kg 3%~7%
Ø450×2pcs 250HP 1500~2000kg 3%~8%



＊The product line can be made to spec meeting customer needs.
＊Equipment specifications are also constanly updated. You are welcomed to contact us for details.

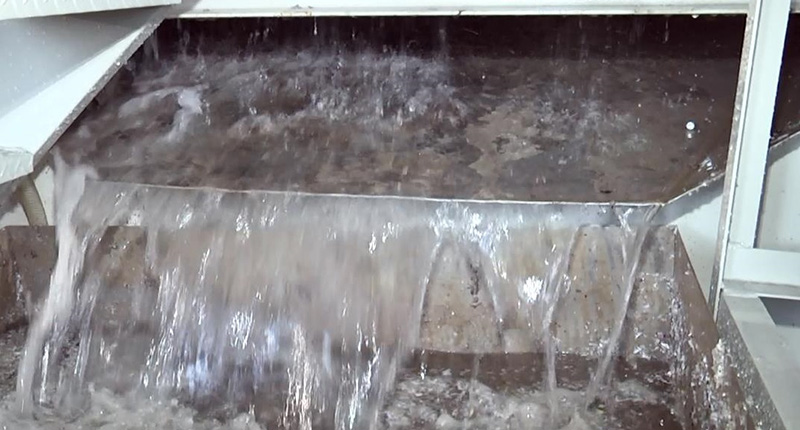

Water after rubbing and squeezing will be collected by water tank

Effective squeezing

Effective squeezing

materials28-1

materials28-02
