TY-B Type Die Clamp

TY-B Type Die Clamp
Classification : Additional Products
FORWELL PRECISION MACHINERY CO., LTD.
FORWELL PRECISION MACHINERY CO., LTD.
Country: Taiwan
Phone: 886-4-8345196
Fax: 886-4-8345197
Contact Person: James Hsiao
Inquiry Now

Model

A

B

C

MIN.E

F

G

M

J

K

L

N

MIN.S

P

TY-2B

15

50

12

59

80

28

100

22

85

107

10

27

M10×25L Screw

TY-4B

15

72

18

85

110

40

135

25

120

145

10

32

M12×40L Screw

TY-6B

28.5

76

25

94

120

44

150

29.5

133

162.5

11

40

M16×50L Screw

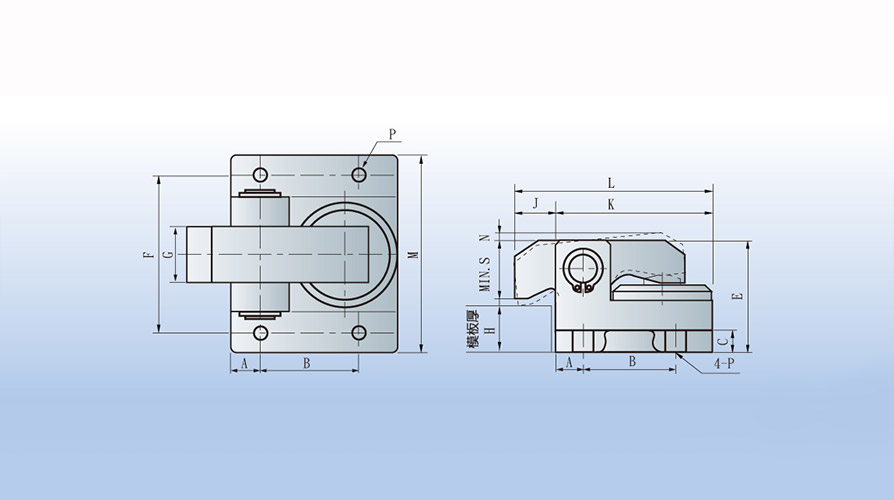

Clamp Dimensions
