PUMP 6308U

Classification : Additional Products

FORWELL PRECISION MACHINERY CO., LTD.

FORWELL PRECISION MACHINERY CO., LTD.
Country: Taiwan
Phone: 886-4-8345196
Fax: 886-4-8345197
Contact Person: James Hsiao

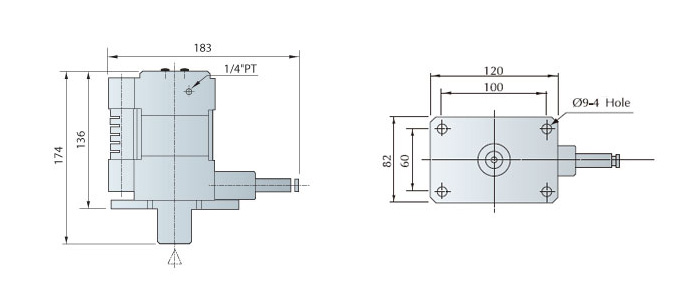

FP63

At 5kg/ cm² Air Pressure

Pressure Ratio

06

420 (kg/ cm²)

1:84

07

300 (kg/ cm²)

1:60

08

250 (kg/ cm²)

1:50

09

200 (kg/ cm²)

1:40

10

150 (kg/ cm²)

1:30

12

100 (kg/ cm²)

1:20

14

80 (kg/ cm²)

1:16

16

50 (kg/ cm²)

1:10

20

40 (kg/ cm²)

1:8

24

26 (kg/ cm²)

1:5

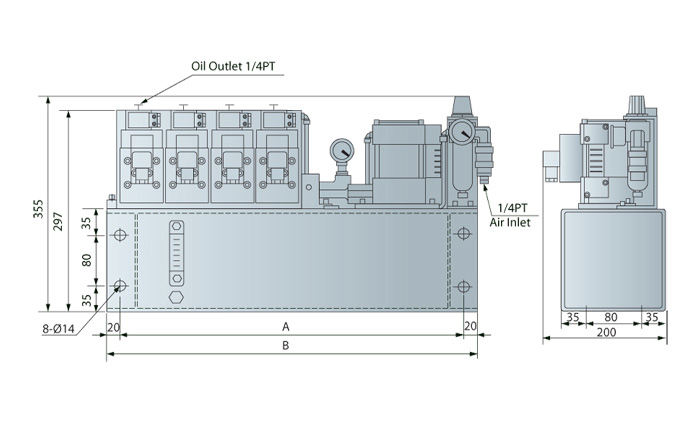

FP63 Pump


Model

Total Circuits

A

B

Reservoir Capability

FP63口 口 U

1

353

393

6

FP63口 口 U

2

353

393

6

FP63口 口 U

3

423

463

7.5

FP63口 口 U

4

493

533

9


Model

Available Capability

Weight KG

Lubricant

FP63 U

4.7

23

ISO VG32-VG68

FP63 U

4.7

27

FP63 U

5.9

35

FP63 U

7.1

43



Drive Fluid

Air

Air Pressure

2~6 kg / c (2~6bar)

Operating Temperature

- 5°~60° C

Lubricant

Standard hydraulic oil
(ISO VG32-VG68)

Weight

4kg


(1)Air consumption MAX=0.35Nm3/ min.
(2)Please refer to instructions for large air flow.
(3)Specifications are subject to change, please contact us to confirm values.

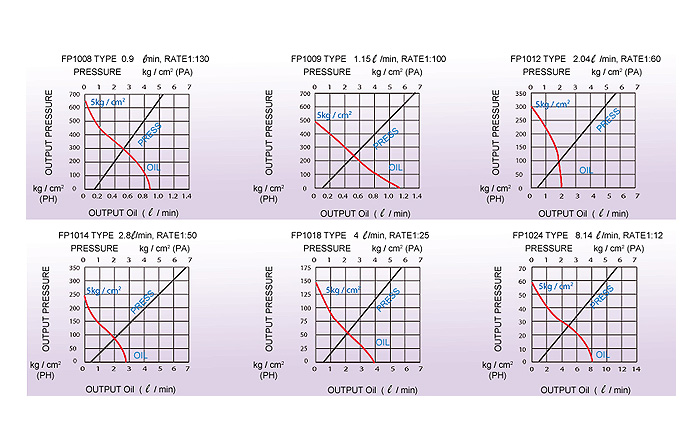

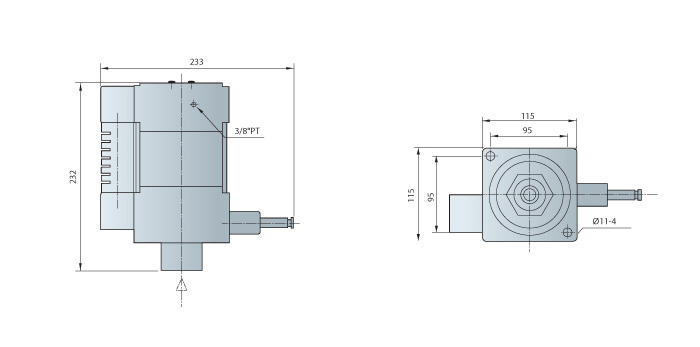

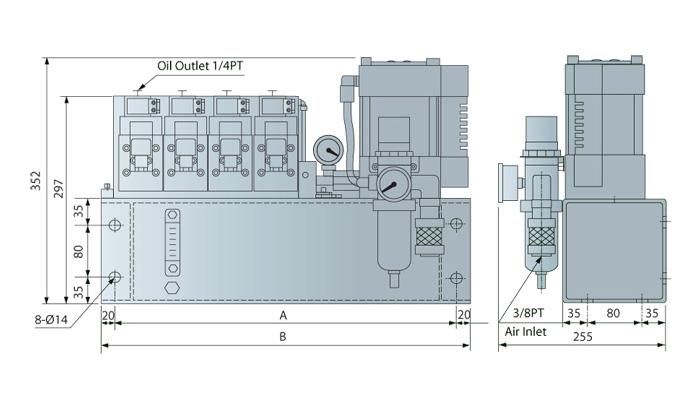

FP100 Pump

Model

Total Circuits

A

B

Reservoir Capability

FP10口 口 U

1

353

393

6

FP10口 口 U

2

353

393

6

FP10口 口 U

3

423

463

7.5

FP10口 口 U

4

493

533

9


Model

Available Capability

Weight KG

Lubricant

FP10口口U

3.8

30

ISO VG32-VG68

FP10口口U

3.8

34

FP10口口U

4.8

42

FP10口口U

5.8

50




Drive Fluid

Air

Air Pressure

2~6 kg / c (2~6bar)

Operating Temperature

- 5°~60° C

Lubricant

ISO VG32-VG68

Weight

11kg


1) Air consumption MAX=0.8Nm3/ min.

2) Please refer to instructions for large air flow.

3) Specifications are subject to change, please contact to confirm values.
