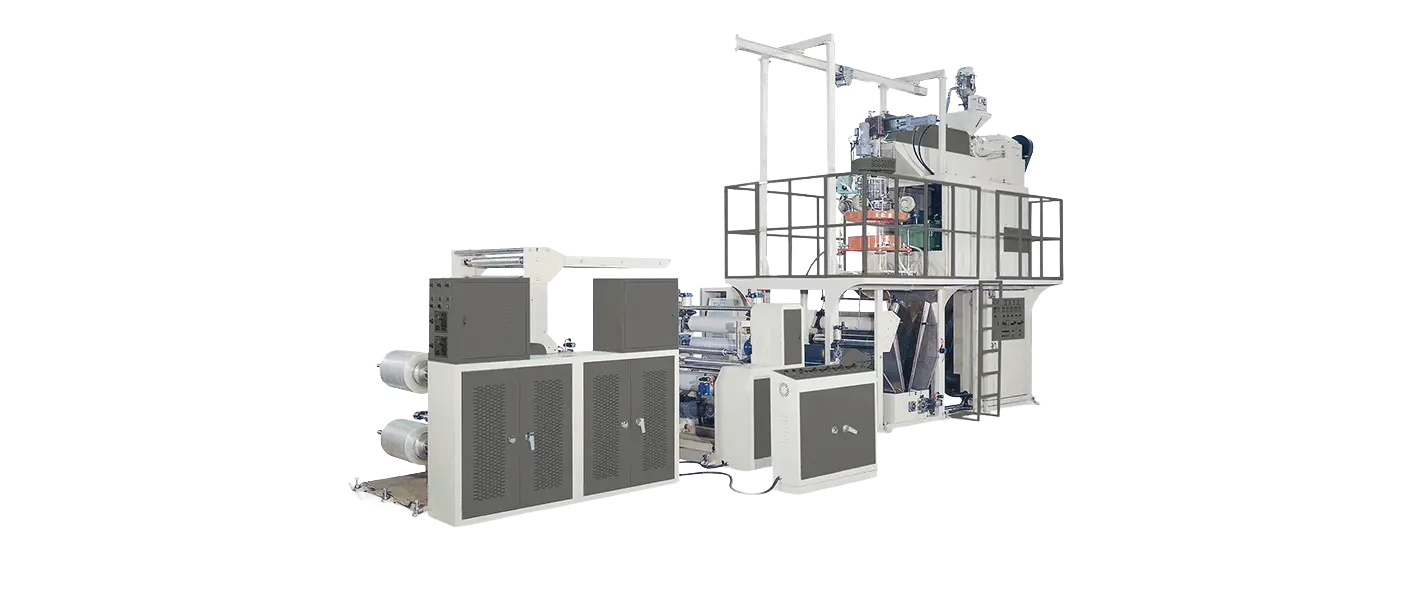

P.P Blown Film (Tubular) Extrusion Line (Double Side Winder)

Classification : Extrusion Line

MING JILEE ENTERPRISE CO., LTD.

Country: Taiwan

Phone: 886-6-5783420

Fax: 886-6-5783347

Contact Person: Chris Chang

Inquiry Now

Ming Jilee's MGPP-Serial P.P Blown Film (Tubular) Extrusion Line, double side winder version, extrudes PP granules through a rotary die processed by hard chrome plating, with the screw and barrel made of special steel that has undergone nitrating treatment, grinding, and hard chrome plating for durability under long rotation. Extruding speed is controlled by inverter.

The series spans four models, MGPP-45 through MGPP-75, processing P.P. granules in a thickness range of 0.02 - 0.08 mm, with lay flat film width from 100 - 400 mm on the MGPP-45 up to 550 - 1000 mm on the MGPP-75, and output from 10 - 35 kg/hr up to 20 - 100 kg/hr depending on model. Optional equipment includes a 5TON chiller, 200 KG mixer with drier, hydraulic cylinder, corona treatment, double side embossing station, and double side winding device.

Model	MGPP-45	MGPP-55	MGPP-65	MGPP-75
Applicable resin	P.P. granules
Thickness Range	0.02 - 0.08 mm
Lay flat film width	100 - 400 mm	150 - 550 mm	200 - 700 mm	550 - 1000 mm
Output	10 - 35 kg/hr	20 - 50 kg/hr	20 - 60 kg/hr	20 - 100 kg/hr
Machine dimension	4,000 (L) × 1,600 (W) × 3,400 (H) mm	4,500 (L) × 2,000 (W) × 4,300 (H) mm	6,360 (L) × 2,100 (W) × 4,700 (H) mm	7,520 (L) × 2,200 (W) × 5,200 (H) mm
Net weight
Required power
Optional equipment	(1) 5TON chiller : 1 (2) 200 KG mixer with drier : 1 (3) Hydraulic Cylinder : 1 (4) Corona treatment : 1 (5) Double side embossing station : 1 (6) Double side winding device : 1
Remarks	As we continuously keep working on research and improvement, we preserve the right to change all of the specifications, design and characteristics on this catalogue without notice.
