P.P Blown Film (Tubular) Extrusion Line

Classification : Extrusion Line

MING JILEE ENTERPRISE CO., LTD.

Country: Taiwan

Phone: 886-6-5783420

Fax: 886-6-5783347

Contact Person: Chris Chang

Inquiry Now

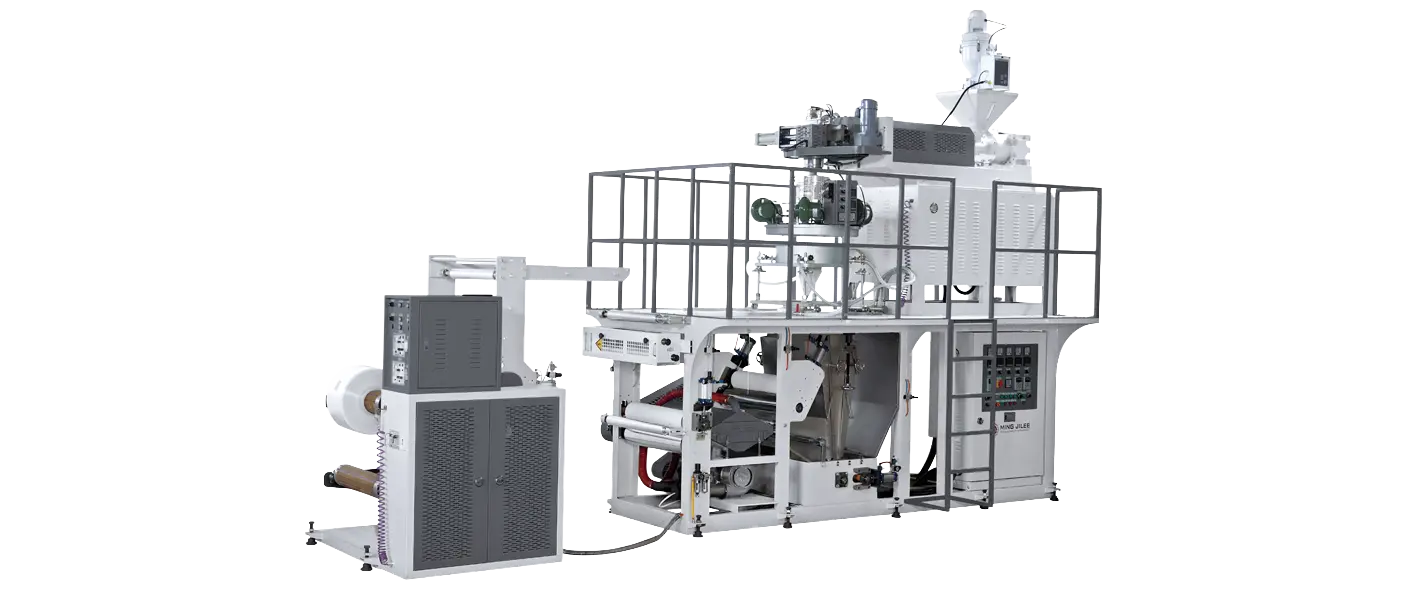

Ming Jilee's MGPP-Serial P.P Blown Film (Tubular) Extrusion Line melts PP granules and extrudes them through an annular die into a tube of molten film, which is inflated to set the lay flat width before being wound into roll form for downstream converting. The series spans four models, MGPP-45 through MGPP-75, processing P.P. granules in a thickness range of 0.02 - 0.08 mm.

Lay flat film width runs from 100 - 400 mm on the MGPP-45 up to 550 - 950 mm on the MGPP-75, with output from 10 - 35 kg/hr on the smallest model up to 20 - 100 kg/hr on the largest. Machine dimension scales with model, from 4 (L) × 1.6 (W) × 3.4 (H) m on the MGPP-45 to 7.52 (L) × 2.2 (W) × 5.2 (H) m on the MGPP-75.

Model	MGPP-45	MGPP-55	MGPP-65	MGPP-75
General Machine Specifications
Applicable Resin	P.P. granules
Thickness Range	0.02 - 0.08 mm
Lay Flat Film Width	100 - 400 mm	150 - 550 mm	300 - 650 mm	550 - 950 mm
Output	10 - 35 kg/hr	20 - 50 kg/hr	20 - 60 kg/hr	20 - 100 kg/hr
Machine Dimension	4 (L) × 1.6 (W) × 3.4 (H) m	4.5 (L) × 2 (W) × 4.3 (H) m	6.36 (L) × 2.1 (W) × 4.7 (H) m	7.52 (L) × 2.2 (W) × 5.2 (H) m
Remarks	As we continuously keep working on research and improvement, we preserve the right to change all of the specifications, design and characteristics on this catalogue without notice.
