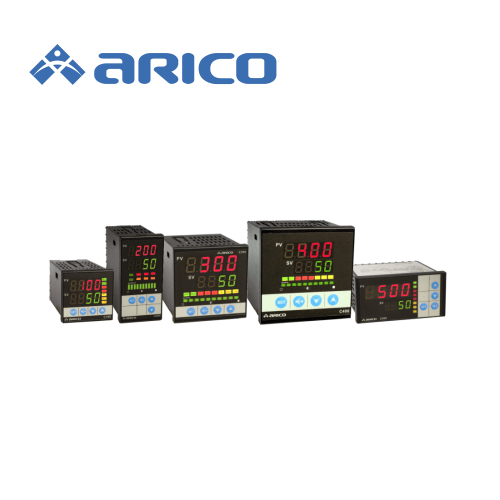

ARICO - The Best Solution Of Micro Processor Controllers
ARICO Technology and worldwide's rubber and plastic injection industry manufacturers have cultivated a long and stable co-operation relationship between us for many years. We was founded in 1987, base on sophisticated manufacturing technology, and focus on the research and development and innovation of industrial control instrument technology. We are not only good at producing customized precision Micro Processor Controllers and related application equipment, but also provides high-quality Micro Processor Controllers with the most convenient setting mechanism, stable quality, at a reasonable price to manufacturers in Taiwan, China, the United States, India, Argentina, Israel, Mexico, Thailand, Malaysia, Southeast Asia and other countries. In addition to accumulating and stabilizing partners for related instruments with Micro Processor Controllers, ARICO continues to conduct research and development in order to provide more stable and efficient machine stability, just for achieving a higher efficiency and stable instrument technology level on temperature control, displacement sensing, pressure sensing, injection molding machine IoT on rubber and plastic industry.
  • The best performance - price ratio
  • Push-button set-up
  • P.I.D. auto-tuning;self-tuning;MAN / AUTO output
  • Double display ( 4 – digits )
  • Ten alarm output modes selectable
  • Four output:main/aux、alarm1、alarm2


Specifications:

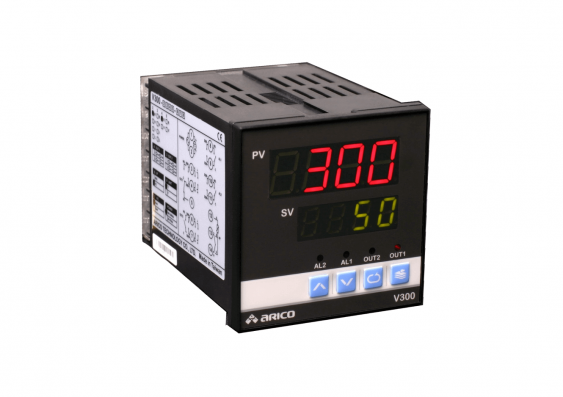

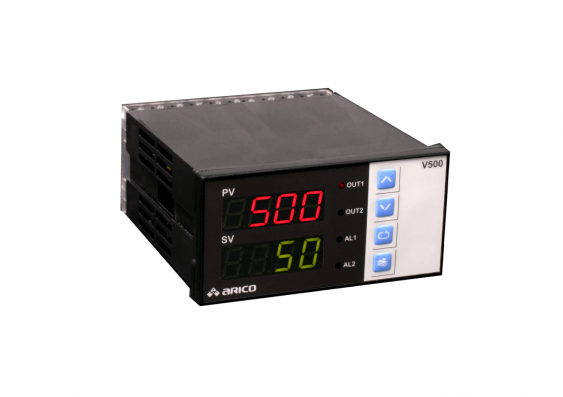

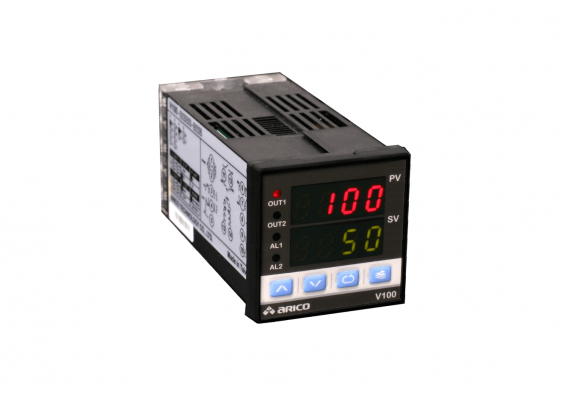

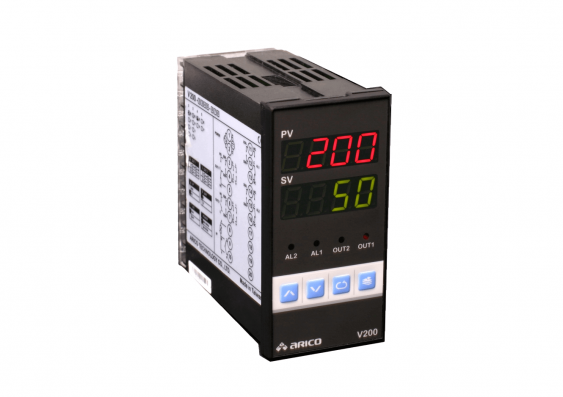

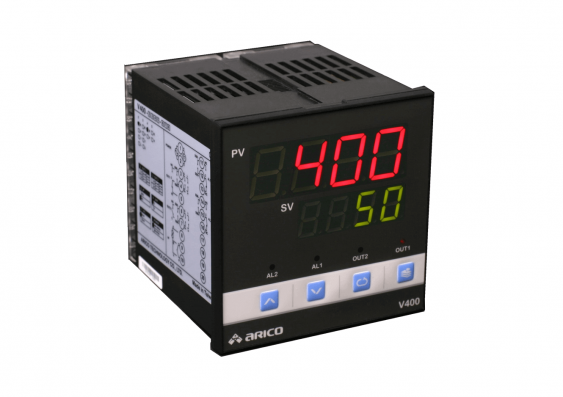

Model V100 V200 V300 V400 V500
Dimension W × H W48×H48 W48×H96 W72×H72 W96×H96 W96×H48
Unit:mm
Unit Weight 130g 210g 200g 270g 210g
Display Type 4 digital high brightness and red color
4 digital high brightness and green color
Power Consumption 4W 5W 4W
Power Supply 100 ~ 240VAC ± 10%,50 / 60Hz
Storage / Operate 0 ~ 55°C;32°F ~ 130°F;10 ~80% RH
Data Backup Memory EEPROM, 10 years
Accuracy 0.5 % Full scale
Alarm Output None
Relay: AC250V NO:5A / NC:3A
Digital voltage:DC24V / 20mA
Controlling Measure ON / OFF, PID
Approved Standard CE - EM2055B0287
Controlling Output
- Main Output Aux. Output
Relay contact AC250V NO:5A / NC:3A
Digital Voltage DC24V / 20mA(MAX)
Analog Voltage 0 ~ 10V、0 ~ 5V、1 ~ 5V None
Analog Current 0 ~ 20mA、4 ~ 20mA None
Input Type
Thermocouple J、K
RTD PT100
Linear Analog None






  • 16 bit microprocessor operating core doing PID + Self-tuning
  • Various options of input signals (thermocouples, RTD, analog signals, etc.)
  • Main control output can select relay, pulse voltage, linear analog signals
  • Can drive all types of contactors, SSR, SCR, 3-line proportional motor valve, etc
  • Can set reverse / forward control (heating or cooling process)
  • Dual-output models can do cooling / heating two-way PID controlling
  • Set Value (SV) can employ analog signal input to achieve Remote Set Value setting
  • 26 types of alarm modes for option ; can be added with broken-line detecting alarm function (HBA)
  • Re-transmission function can convert Present Value (PV) or controlling output amount into analog signal output for recorder or other applications
  • Provided with manual output mode
  • Manual and auto output
  • Serial communication function supports RTU and ASCII format of Modbus. The Baud rate can reach as fast as 38,400 bit/s
  • Programmed controlling provides 16 temperature levels whose operating intervals and repeat frequency can be planned freely


Specifications:

Model C100 C200 C300 C400 C500
Dimension W × H W48×H48 W48×H96 W72×H72 W96×H96 W96×H48
Unit:mm
Unit Weight 130g 200g 200g 280g 200g
Display Type 4 digital high brightness and red color
4 digital high brightness and green color
Power Consumption 4W 5W 4W
Power Supply 90 ~ 240VAC ( 60 / 50Hz ), DC24V(optional)
Storage / Operate 0 ~ 65°C;32°F ~ 149°F;20 ~ 90% RH / 0 ~ 50°C;32°F ~ 122°F;20 ~ 90% RH
Data Backup Memory EEPROM, 10 years
Accuracy 0.3 % Full scale
Alarm Output Relay: AC250V / 8A
Controlling Measure ON / OFF, P, PI, PD, PID
Approved Standard CE-T160811N10-E
Controlling Output
Relay contact AC250V/8A
Digital Voltage DC24V/20mA(MAX)
Analog Voltage 0~10V (Input Impedance: 1KΩ Max.)
Analog Current 4 ~20mA (Input Impedance: 600Ω Max.)
Input Type
Thermocouple J, K, R, S, B, E, N, T, W3, W5, PL-II
(Input Impedance: approx. 1KΩ Max.)
RTD PT-100 (DIN), JPT-100 (JIS)
Linear Analog 0~10mV ,0~20mV ,0~50mV ,4~20mA ,0~10V....
