MULTI-PURPOSE PRESSURE TRANSMITTERS

Classification : Viatran / Pressure Transmitter

MITSUDELL CO., LTD. - Dynisco/Viatran Agent in Taiwan

MITSUDELL CO., LTD. - Dynisco/Viatran Agent in Taiwan
Country: Taiwan
Phone: 886-4-2631-3001
Fax: 886-4-2631-7717
Contact Person: Harrison Chang

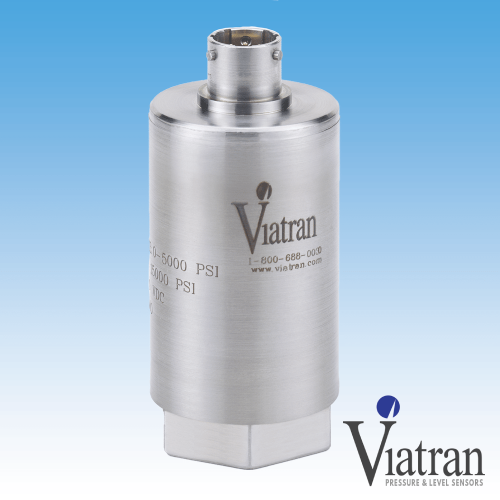

Features

 All Stainless Steel construction
 Shunt Calibration circuit option
 RoHS Compliant

Performance
Full Scale Pressure Ranges
0-100 thru 15,000 PSIG (PSIS FOR ≥ 1500 PSI) (7 thru 1000 bar)
Nonlinearity (Best Fit Straight Line)
≤±0.25% FSO
Hysteresis & Repeatability
≤±0.10% FSO
Full Scale Output (FSO)
5 Vdc at 70°F (21°C) ≤±0.10% FSO
Resolution
Infinite
Long Term Stability
≤±0.3% FSO per 6 months
Compensated Temperature Range
70°F to 170°F (21°C to 77°C)
Process Media Temperature Range
-40°F to 250°F (-40°C to 121°C)
Ambient Operating Temperature Range
-40°F to 185°F (-40°C to 85°C)
Storage Temperature Limits
-40°F to 250°F (-40°C to 121°C)
Temperature Effect on Zero
≤±2.0% FSO per 100°F
Temperature Effect on Span
≤±2.0% FSO per 100°F

Features

 Many Options available
 All Stainless Steel construction

 Shunt Calibration circuit option

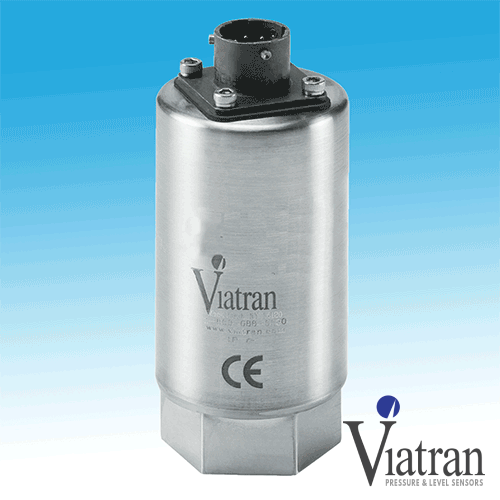

The “48” Series is made to withstand overloads and severe pressure spikes that can offset, weaken or destroy other sensors. The minimum 3X overpressure rating on the X48 means better than 0.15% accuracy while still offering a response time of less than a millisecond. It’s designed to provide years of reliable, repeatable service.

Typical Applications:

• Engine test stands

• Production test stands

• Hydraulic

• Compressors & Pumps

• Rolling mills

• Die Casting

Contact our Application Engineers today to customize this unit to meet your specific needs.

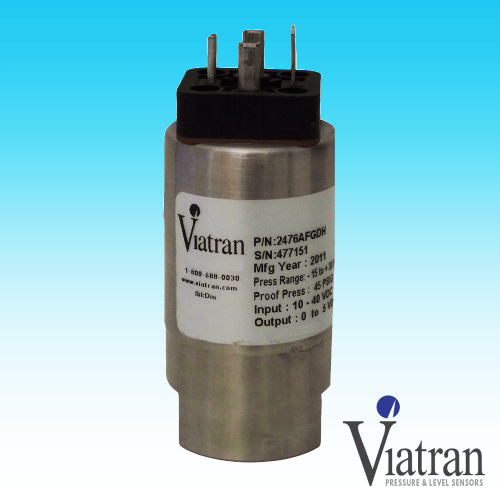

Features

 All Stainless Steel construction


PERFORMANCE
Full Scale Pressure Ranges
0-15, 30, 50, 75, 100, 200, 300, 500 PSIA
0-3, 5, 10, 15, 30, 50, 75, 100, 200, 300, 400, 500, 750, 1,000, 1,500 PSIG
2K, 3K, 4K, 5K, 7.5, 10K, 15K, 20K PSIS
0-5, 10 & 15 PSIV*
Improved Accuracy (Non Linearity)
±0.35%**** Range Dependent
Non-linearity (Best Fit Straight Line)
≤±0.50% FSO
Hysteresis
<0.25% FSO
Full Scale Output (FSO)
5 Vdc ±2% at 70°F (21°C)
Resolution
Infinite
Long Term Stability
≤±0.5% FSO per 6 months
Compensated Temperature Range
70°F to 170°F (21°C to 76°C)
Maximum Operating Temperature
200°F (93°C)
Minimum Operating Temperature
-20°F (-28°C)
Storage Temperature Limits
-40°F to 250°F (-40°C to 121°C)
Thermal Effect on Zero
≤±2% FSO per 100°F Typical
Thermal Effect on Span
≤±2% FSO per 100°F Typical
Zero Adjust
±5% of FSO (nominal)
* For PSIV and Compound Range units, thermal effect on zero is ≤±3.0% per 100°F

CONTACT SUPPLIER
