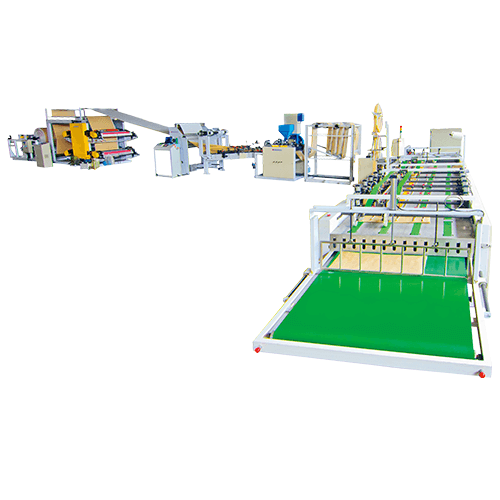

Automatic Printing-Tubing-Cutting-Sewing-Overtape Convention Line

Classification : Multi-wall PP Paper bag making machine

REY LONG MACHINERY INDUSTRIAL CO.,LTD.

Country: Taiwan

Phone: 886-5-5511888

Fax: 886-5-5571393

Contact Person: William Ho

Inquiry Now

Rey Long's fully integrated bag-making convention line combines four production stages — flexographic printing, tube forming, cutting & sewing, and overtape application — into a single, continuous process. Designed for high-volume PP woven bag production, the line delivers consistent quality with servo-controlled precision and a touch-screen control system.

Specification	Value
Model	JLPTCSM-1300W
Production Capacity	25–40 bags/min
Printing Colors	4 Colors (4+0)
Printing Repeat Length	450–1200 mm
Max Printing Width	1300 mm
Fabric Width (Before Tubing)	700–1300 mm
Fabric Width (After Tubing)	430–660 mm
Max Web Width	1300 mm
Gusset Depth	40–90 mm
Cutting Length	550–1250 mm
Cutting Accuracy	1 mm
Overtape Width	55 mm or 65 mm
Stitching Range	6–12 mm
Total Power	51.7 kW

From Fabric Roll to Finished Bag in One Continuous Pass

In a traditional woven bag factory, printing, tubing, cutting, sewing, and overtaping are run as separate operations with material transfers between each step. The JLPTCSM-1300W convention line eliminates these transfers by linking all five operations in one synchronized drive system. PP woven fabric unwinds from a roll, passes through the 4-color flexographic printing unit, is formed into a tube, cut to length, sewn at the bottom, and finished with an overtape — all in a single continuous motion at 25 to 40 bags per minute.

4-Color Flexographic Printing on PP Fabric

Flexographic printing on woven PP fabric requires precise tension control because the material stretches differently from paper or film. The JLPTCSM-1300W uses a 4-color (4+0) flexographic unit with ceramic anilox rollers, which meter ink volume consistently across the web regardless of line speed variation. Print repeat length is adjustable from 450 to 1200 mm, and the max printing width is 1300 mm. Both plain and BOPP laminated PP fabric are supported — laminated fabric enables moisture-resistant bags with a glossy printed surface.
