Die Lifters

The Quick Die Change System caters for a variety of different Die Lifters which allow for simple and quick movement of dies on a press bed. Forwell supplies two different types of Die Lifters according to the press tonnage, die weight and the die positioning accuracy required. There is a choice between a Spring-Loaded Die Lifter, better suited for light to medium duty pressing operations and a Hydraulic Die Lifter more often used for medium to heavy duty pressing.

Introduction

The hydraulic DL type Die Lifter is designed for very heavy duty dies and very heavy load weights. The scrap guard/scrapers keep the roller surfaces free from scraps and the rollers are arranged tightly into the bolster to prevent damage to the bottom of heavy dies. The height of the roller can be adjusted by replacing some of the built-in shims with different thicknesses.

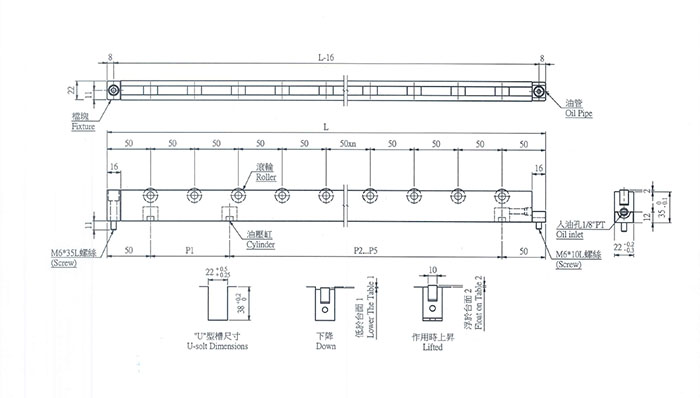

DL-22

Model	Overall	Roller Q'ty	Load Capacity	Lift Cylinder (kg)
Model	Overall	Roller Q'ty	Load Capacity	Pcs	Lift Farce
DL-22-300	300	5	300	2	500
DL-22-400	400	7	420	3	750
DL-22-500	500	9	540	4	1000
DL-22-600	600	11	660	5	1250
DL-22-700	700	13	780	5	1250
DL-22-800	800	15	900	6	1500

Model	Lift Cylinder Pitch (mm)
Model	P1	P2	P3	P4	P5
DL-22-300	200
DL-22-400	90	210
DL-22-500	90	220	90
DL-22-600	90	160	160	90
DL-22-700	90	210	210	90
DL-22-800	90	150	220	150	90

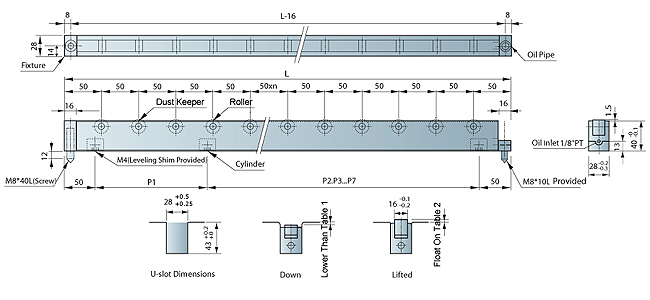

DL-28

Model	Overall	Roller Q'ty	Load Capacity	Lift Cylinder (kg)
Model	Overall	Roller Q'ty	Load Capacity	Pcs	Lift Farce
DL-28-400	400	7	560	2	1000
DL-28-500	500	9	720	3	1500
DL-28-600	600	11	880	4	2000
DL-28-700	700	13	1040	4	2000
DL-28-800	800	15	1200	5	2500
DL-28-900	900	17	1360	5	2500
DL-28-1000	1000	19	1520	6	3000
DL-28-1100	1100	21	1680	6	3000
DL-28-1200	1200	23	1840	7	3500
DL-28-1300	1300	25	2000	7	3500
DL-28-1400	1400	27	2160	8	4000
DL-28-1500	1500	29	2320	8	4000

Model	Lift Cylinder Pitch (mm)
Model	P1	P2	P3	P4	P5	P6	P7
DL-28-400	300
DL-28-500	90	310
DL-28-600	100	340	60
DL-28-700	150	350	100
DL-28-800	95	95	390	120
DL-28-900	110	110	410	170
DL-28-1000	130	130	420	110	110
DL-28-1100	150	150	460	120	120
DL-28-1200	100	150	150	200	200	200
DL-28-1300	150	150	300	300	150	150
DL-28-1400	100	100	150	150	200	250	350
DL-28-1500	100	100	150	150	200	350	350

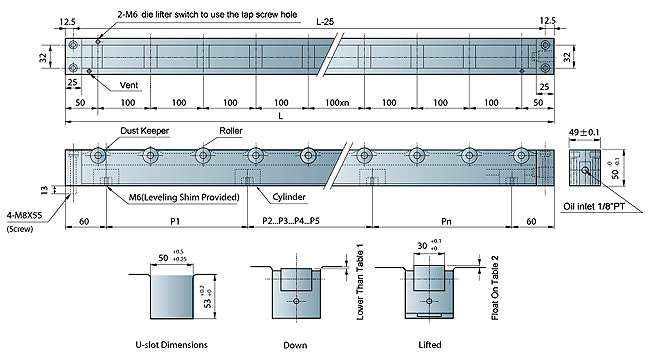

DL-50

Model	Overall	Roller Q'ty	Load Capacity	Lift Cylinder (kg)
Model	Overall	Roller Q'ty	Load Capacity	Pcs	Lift Farce
DL-50-400	400	4	800	2	2200
DL-50-500	500	5	1000	3	3300
DL-50-600	600	6	1200	4	4400
DL-50-700	700	7	1400	4	4400
DL-50-800	800	8	1600	4	4400
DL-50-900	900	9	1800	4	4400
DL-50-1000	1000	10	2000	5	5500
DL-50-1100	1100	11	2200	5	5500
DL-50-1200	1200	23	4600	5	5500
DL-50-1300	1300	25	5000	6	6600
DL-50-1400	1400	27	5400	6	6600
DL-50-1500	1500	29	5800	7	7700
DL-50-1600	1600	31	6200	7	7700
DL-50-1700	1700	33	6600	8	8800
DL-50-1800	1800	35	7000	8	8800
